    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　QPU (Brown round) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11150500532261
　　　　　 　　　

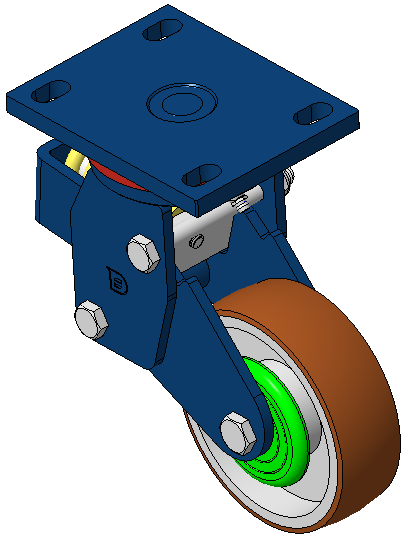

Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

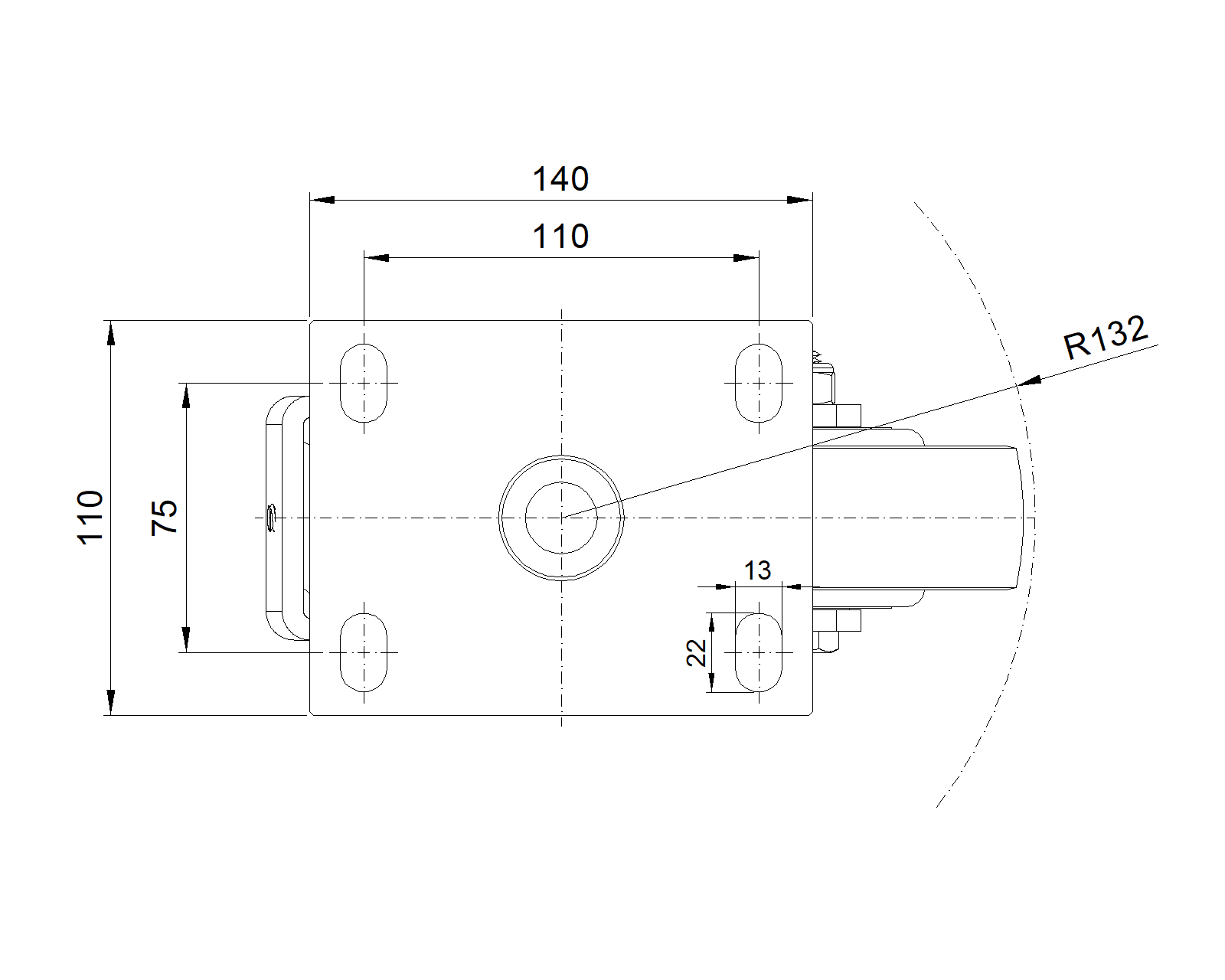

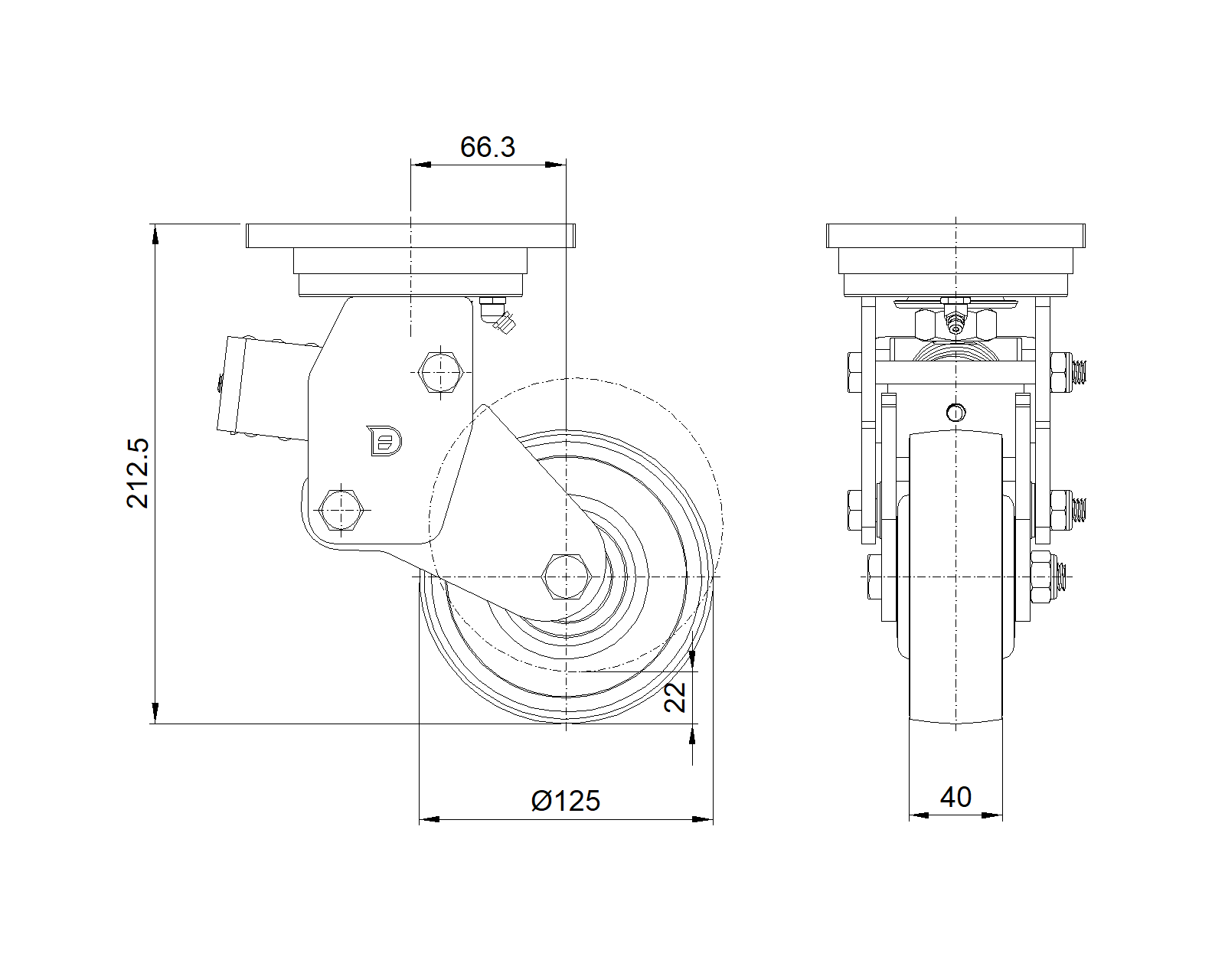

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 66.3mm　
　　Swivel Interference 264mm　
　　Overall Height 212.5mm　
　　Swivel Radius 132mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 5.75kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1115 Spring-loaded Caster Series (Regular)
QPU (Brown round) Wheel Diameter × Wheel Width 125 x 40mm
KS-11150500534261
125 mm 250 Kgs 212.5 mm

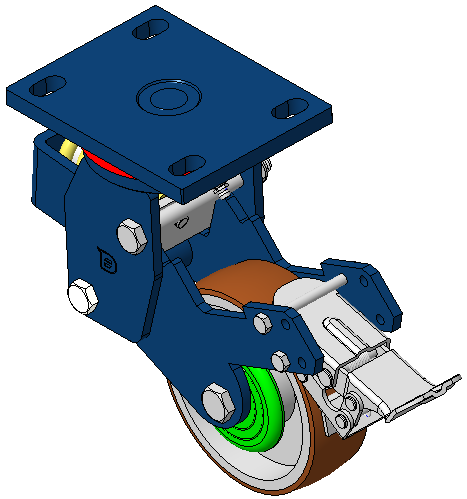

Casters with rear brake, Spring-loaded With locking system, Welded Caster Fork
