    Product Data Sheet

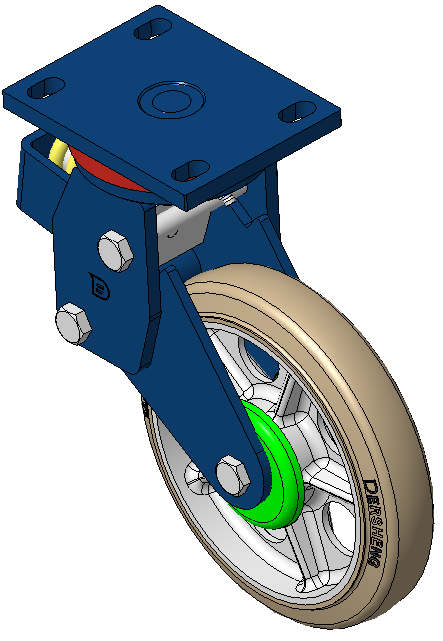

1115 Spring-loaded Caster Series (Regular)
　　Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 200 x 44mm
　　EAN
　　　　　 KS-11150800042691
　　　　　 　　　
Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings - Ball Bearings
　　Wheel surface: Made of high-quality and highly elastic rubber
　　Wheel Center: iron core/cast iron core

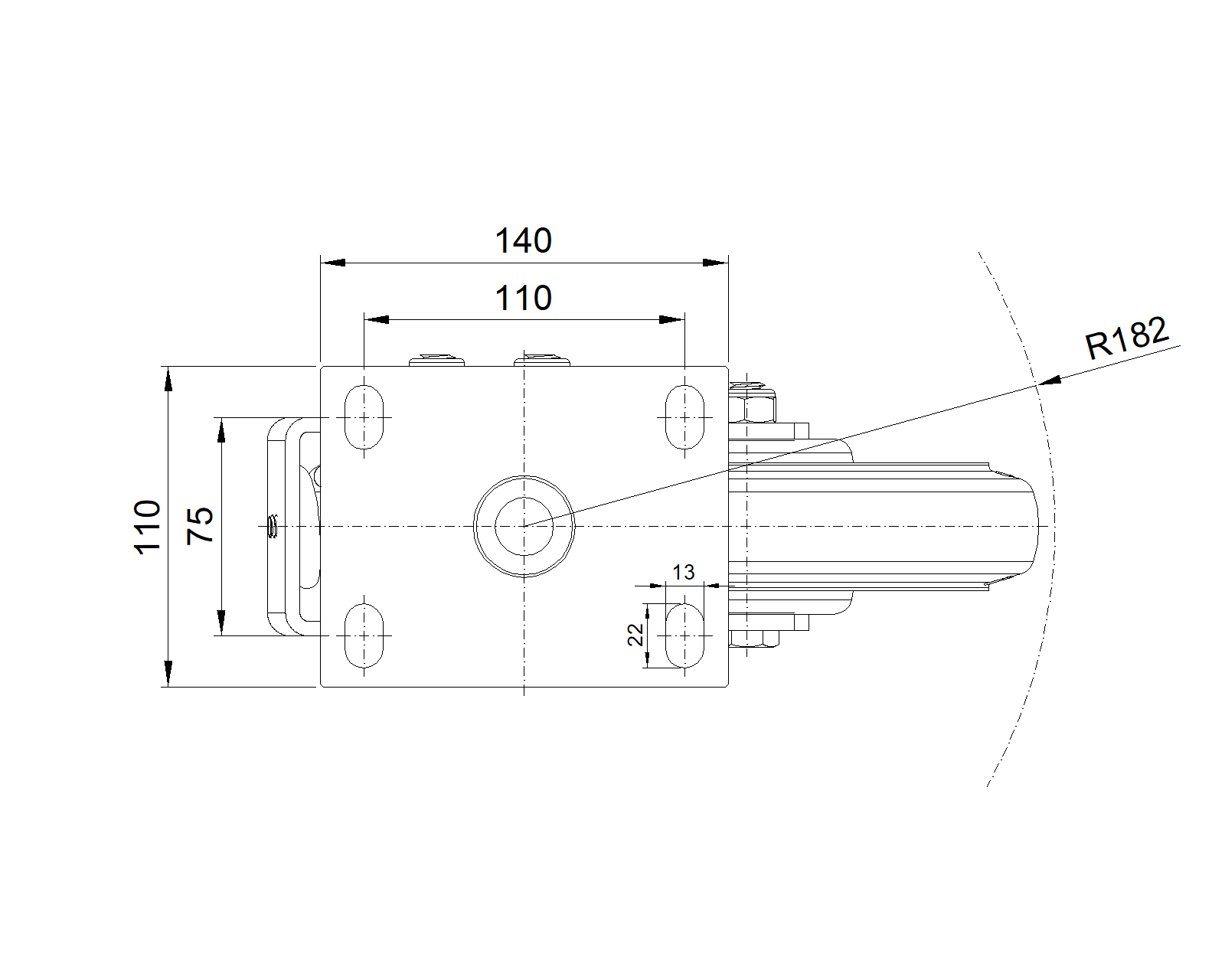

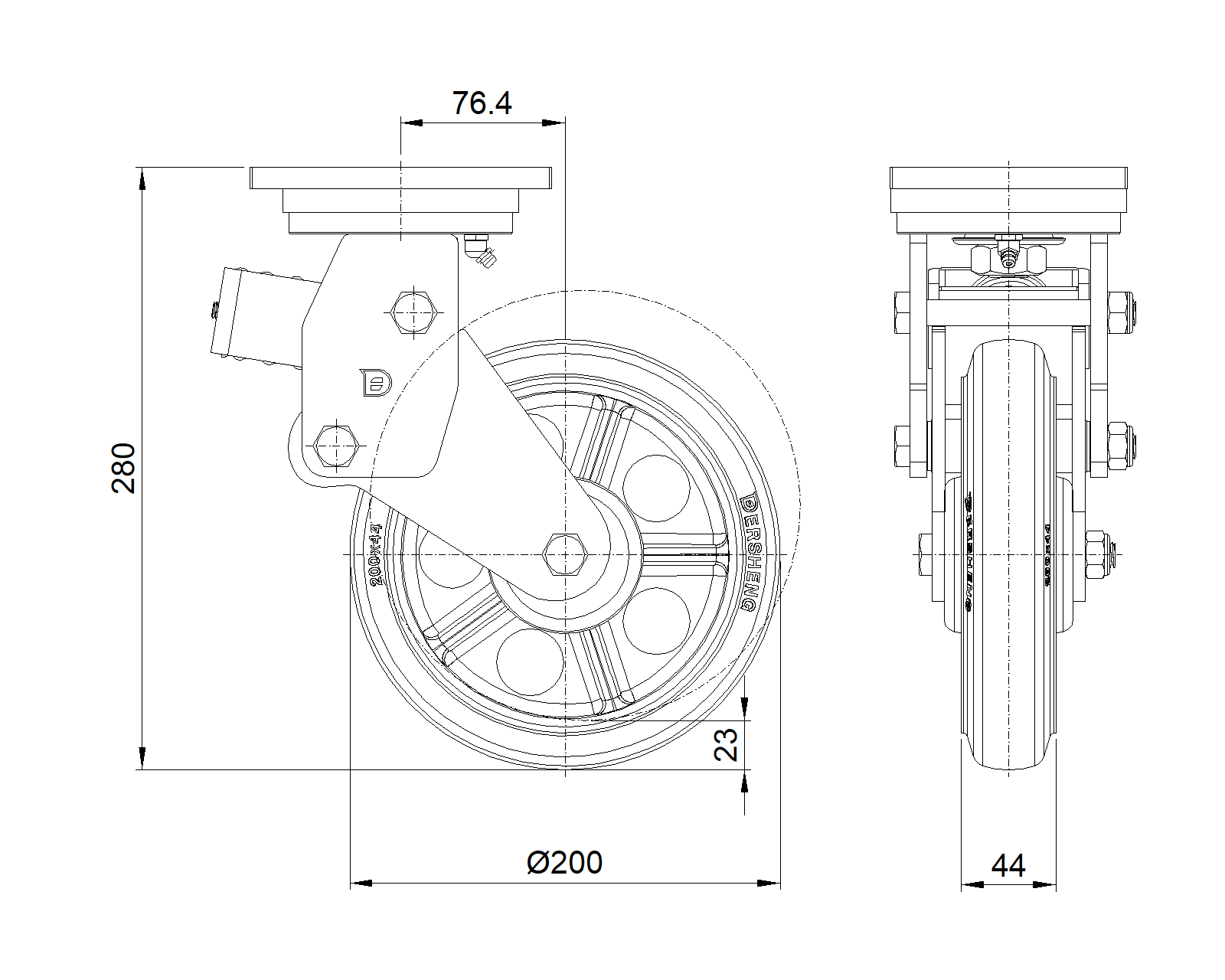

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 44mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 76.4mm　
　　Swivel Interference 364mm　
　　Overall Height 280mm　
　　Swivel Radius 182mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 8.27kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

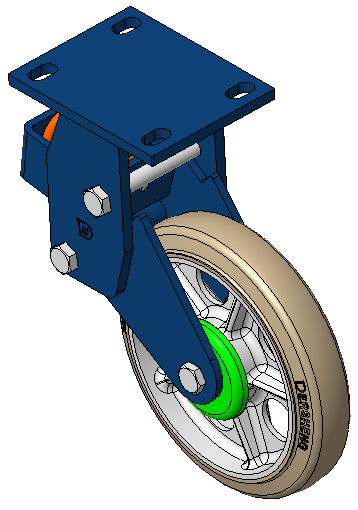

1115 Spring-loaded Caster Series (Regular)
Non-marking NBR Rubber (milling) Wheel Diameter x Wheel Width 200 x 44mm
KS-11150800041691
200 mm 300 Kgs 280 mm
Rigid Spring-loaded Caster with Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing Cast Iron core with High Quality Polyurethane Wheel Tread Cast Iron black, Bearing – Ball Bearings

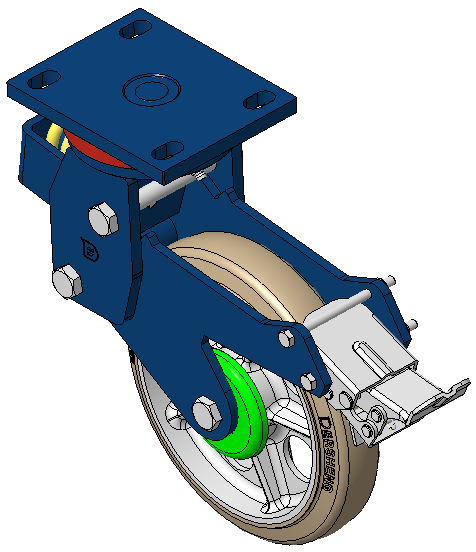

1115 Spring-loaded Caster Series (Regular)
