    Product Data Sheet

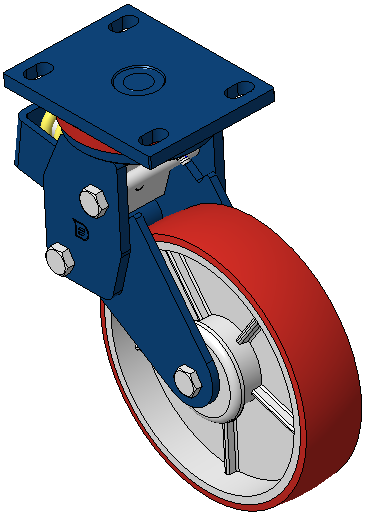

1115 Spring-loaded Caster Series (Regular)
　　PU (Red round) Wheel Diameter × Wheel Width 200 × 50mm
　　EAN
　　　　　 KS-11150800332561
　　　　　 　　　
Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

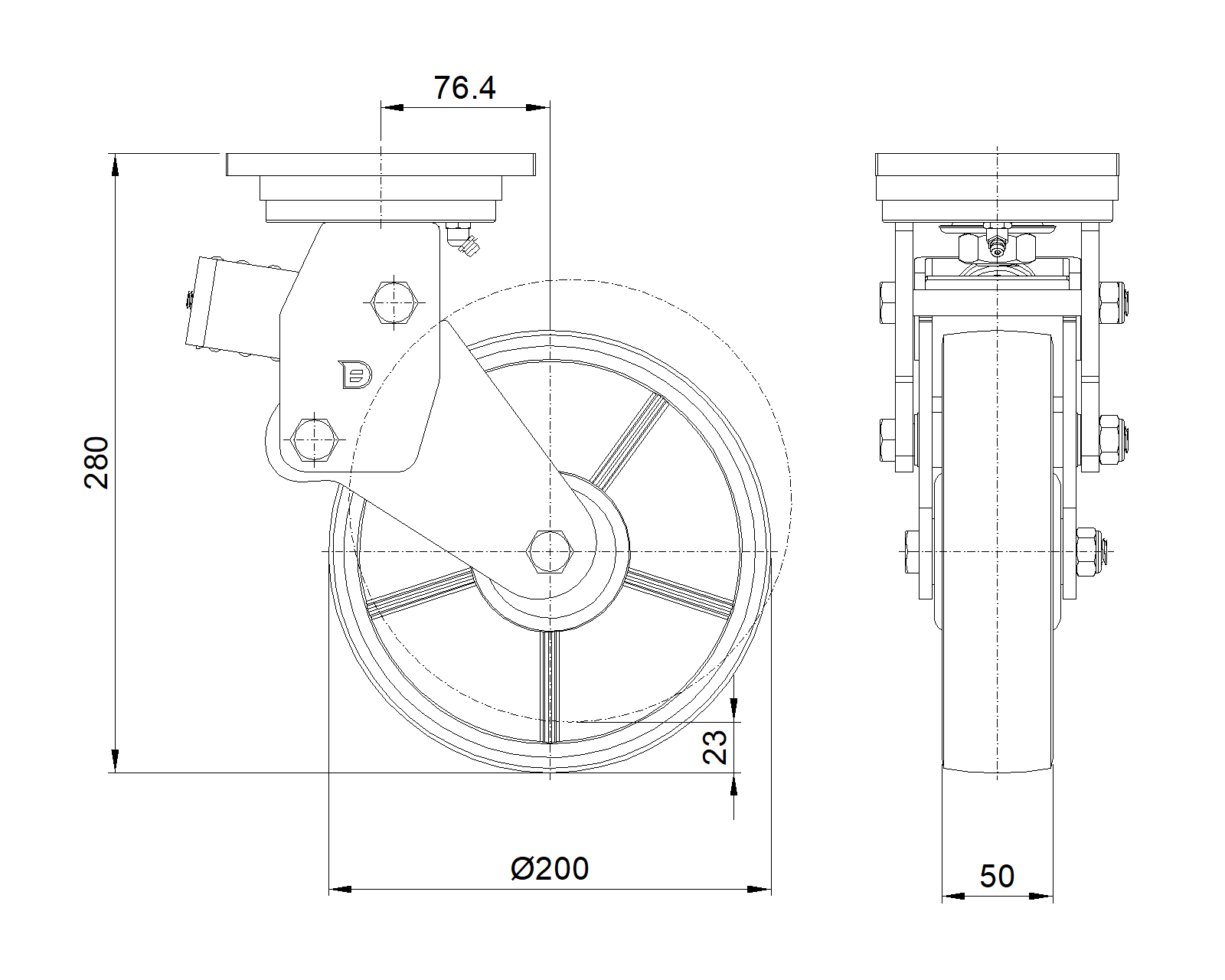

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 200mm　

　　Wheel Width 50mm　
　　Wheel Bearing Wheels With Ball Bearings

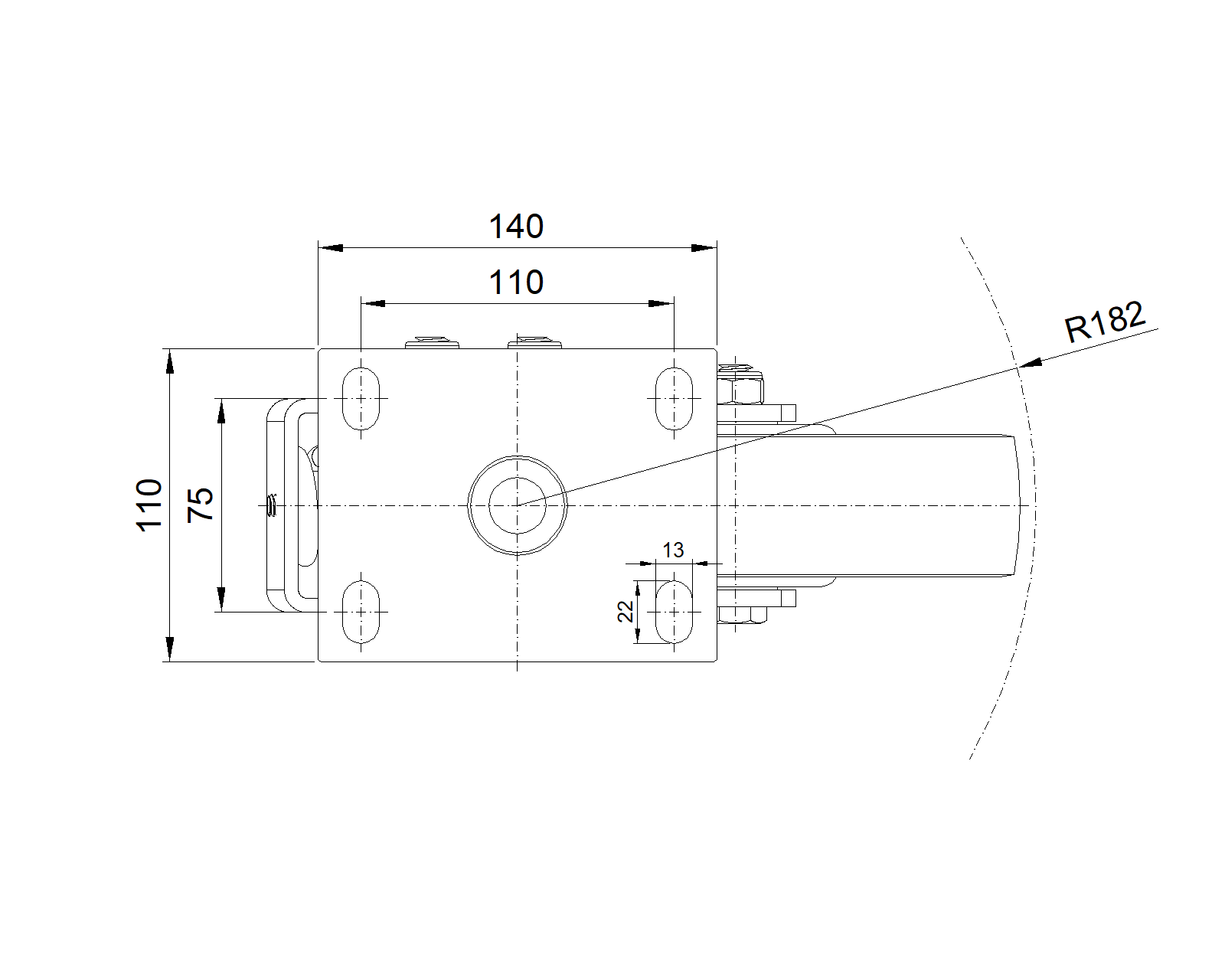

　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 76.4mm　
　　Swivel Interference 364mm　
　　Overall Height 280mm　
　　Swivel Radius 182mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 8.15kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

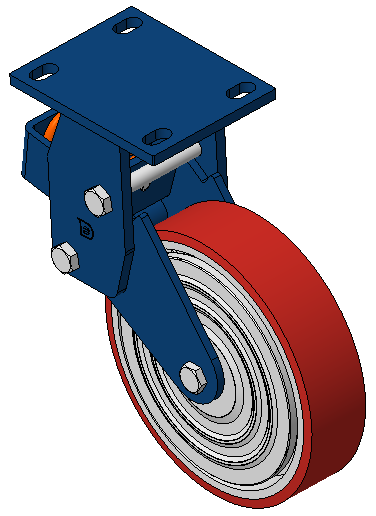

1115 Spring-loaded Caster Series (Regular)
