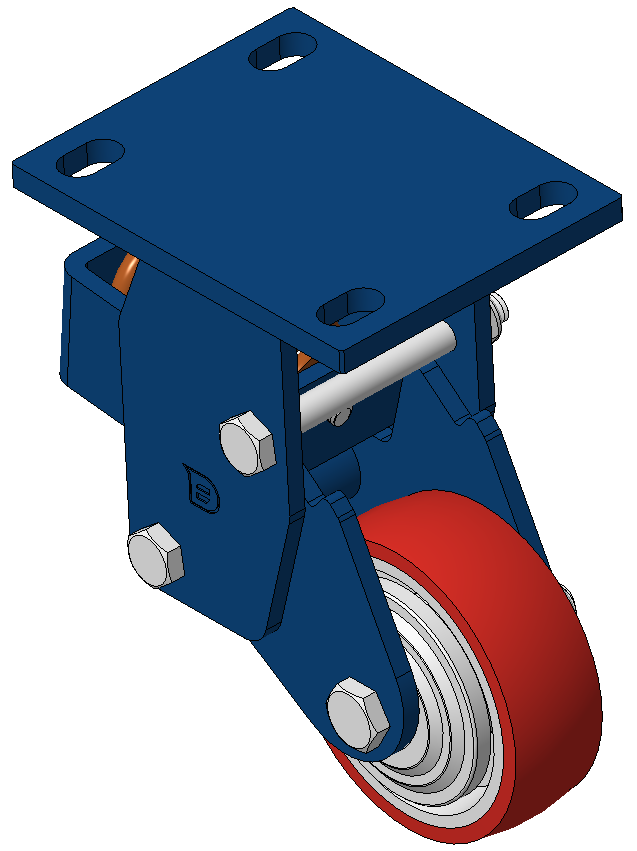

Mounting Type - Top Plate, 110x75 Bolt Hole Spacing.
Cast Iron Wheel Center with High Quality Polyurethane tread, Cast Iron red.
Bearing—Ball Bearing.
Wheel Center: iron core/cast iron core

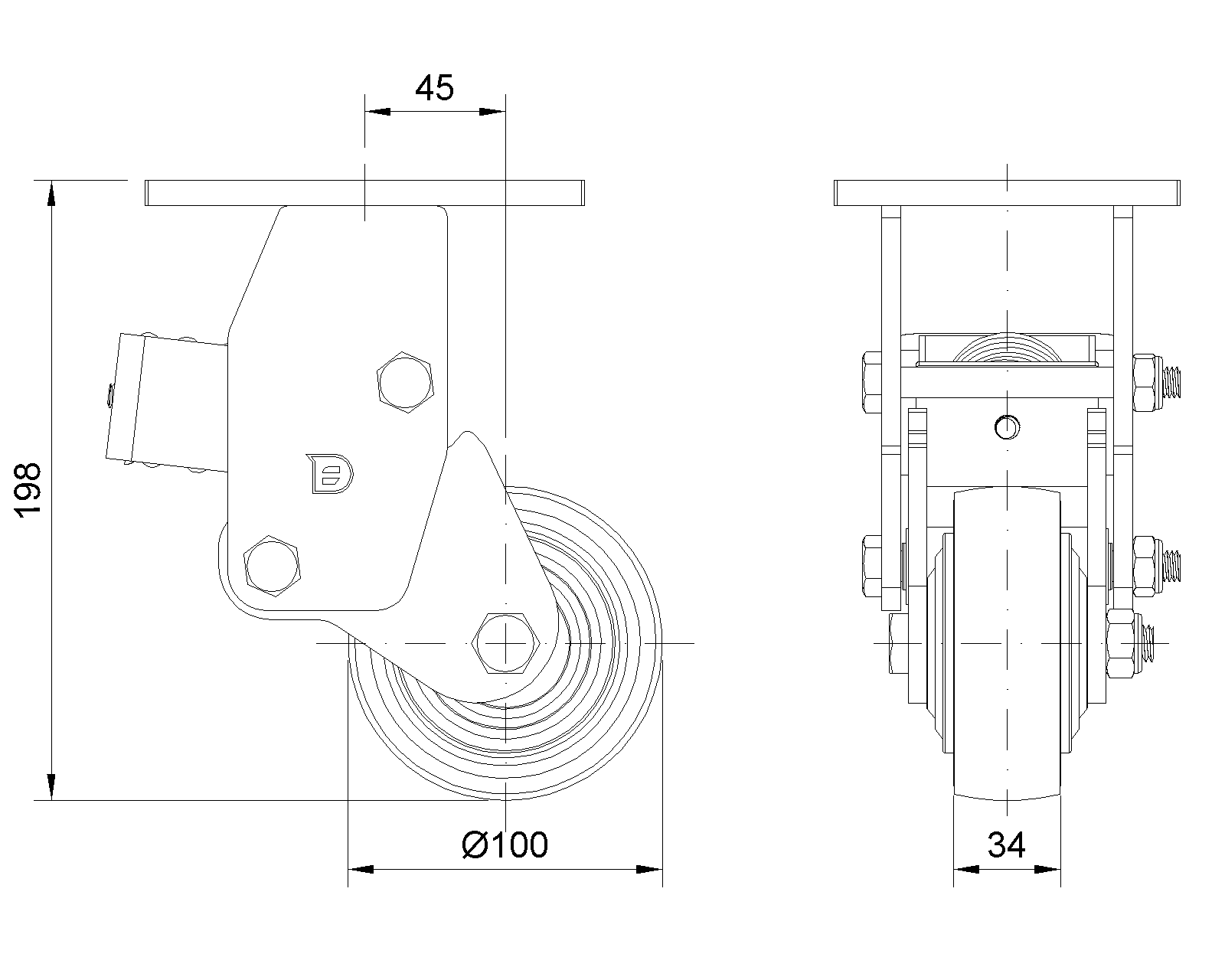

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
34mm
Wheel Bearing
Wheels With Ball Bearings

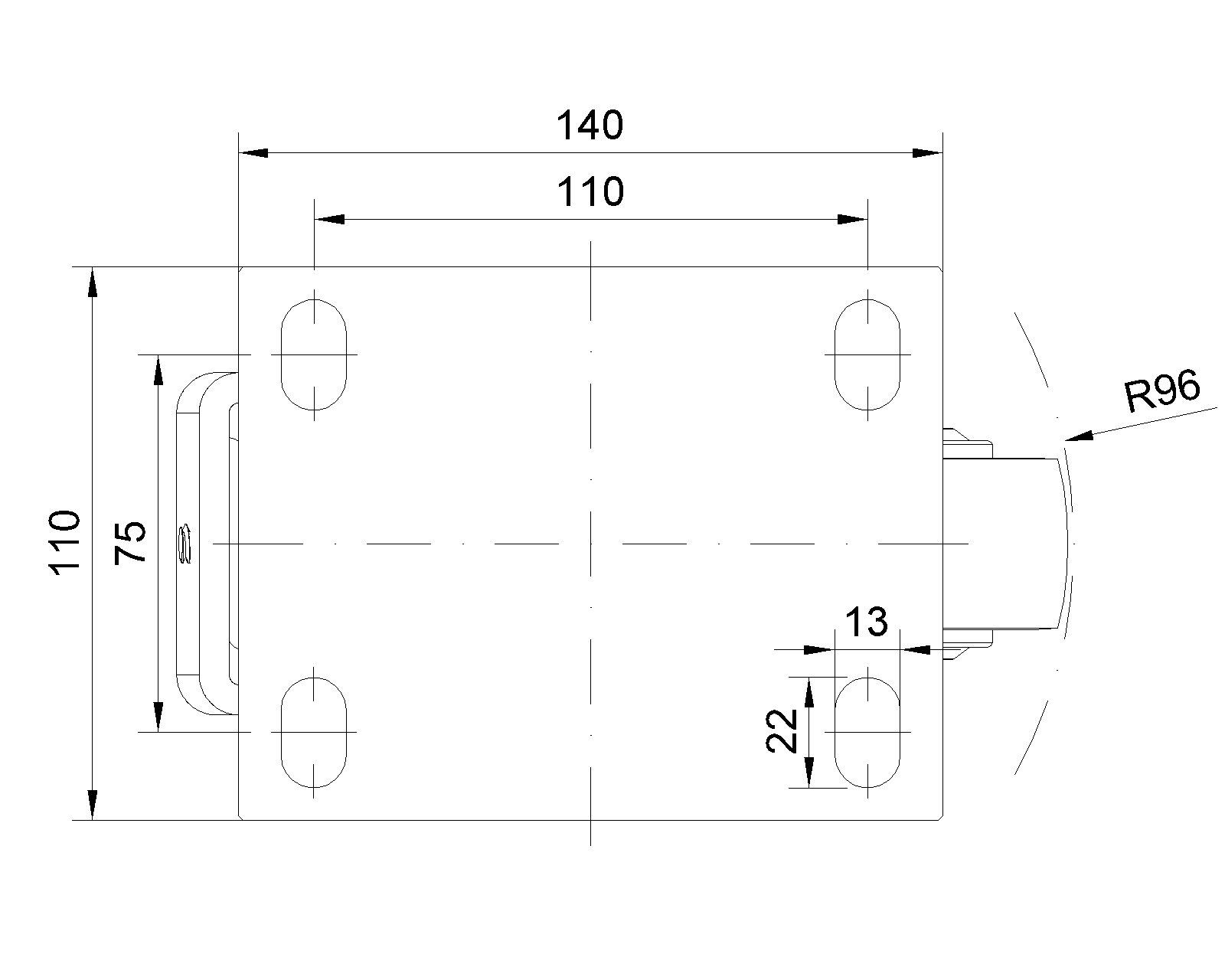

Plate Size
140 x 110mm
Bolt Hole Spacing
110x75mm
Plate Hole
2213mm
Offset
45mm
Swivel Interference
192mm
Overall Height
198mm
Swivel Radius
96mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
200kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
300kgs
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
4.53kgs
Standard
ISO22883
