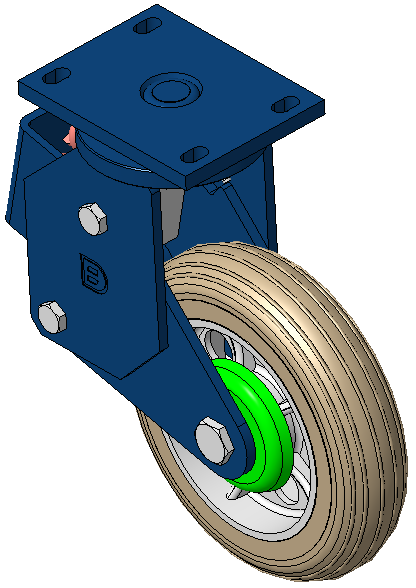

Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings—Ball Bearings
Wheel Center: iron core/cast iron core

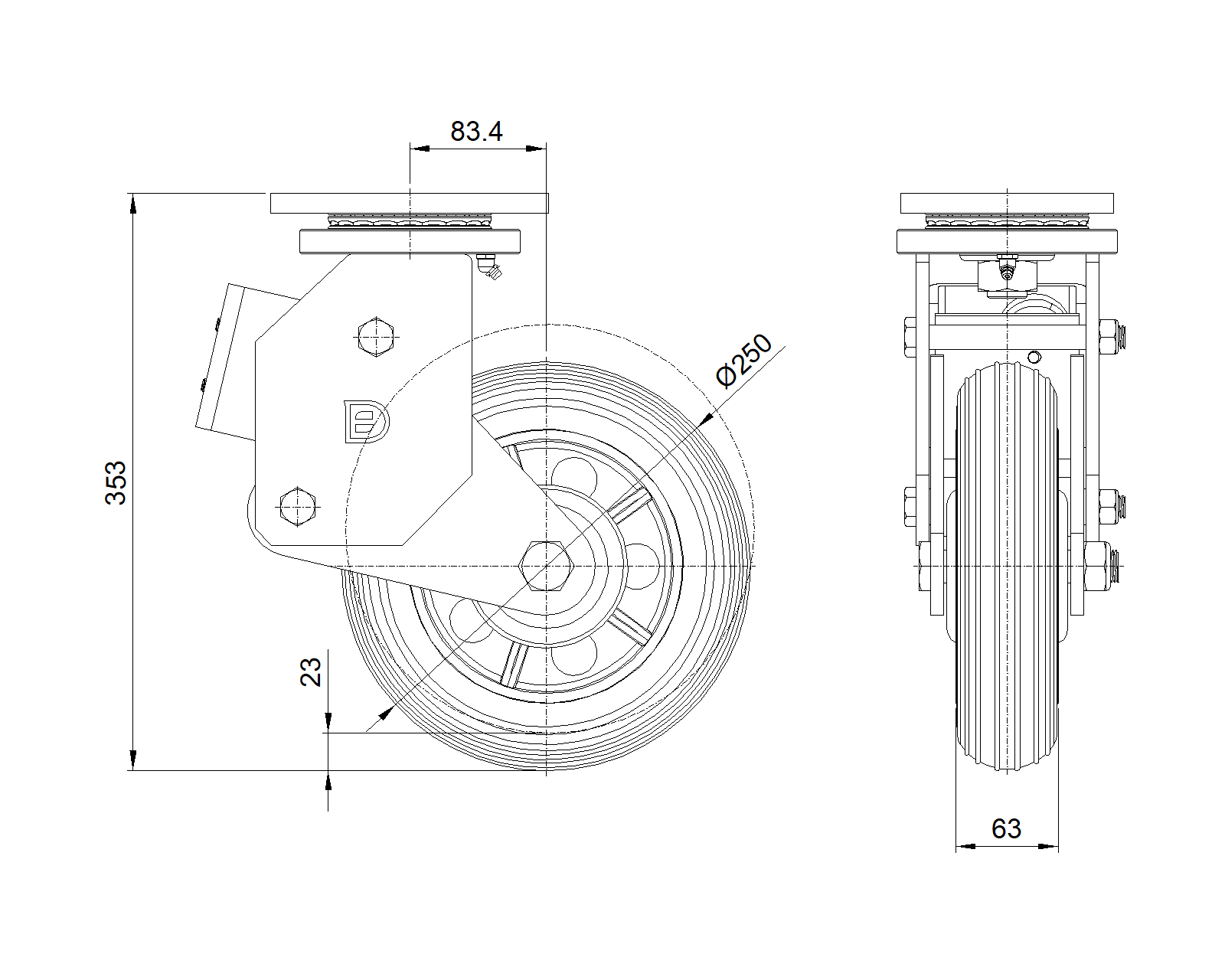

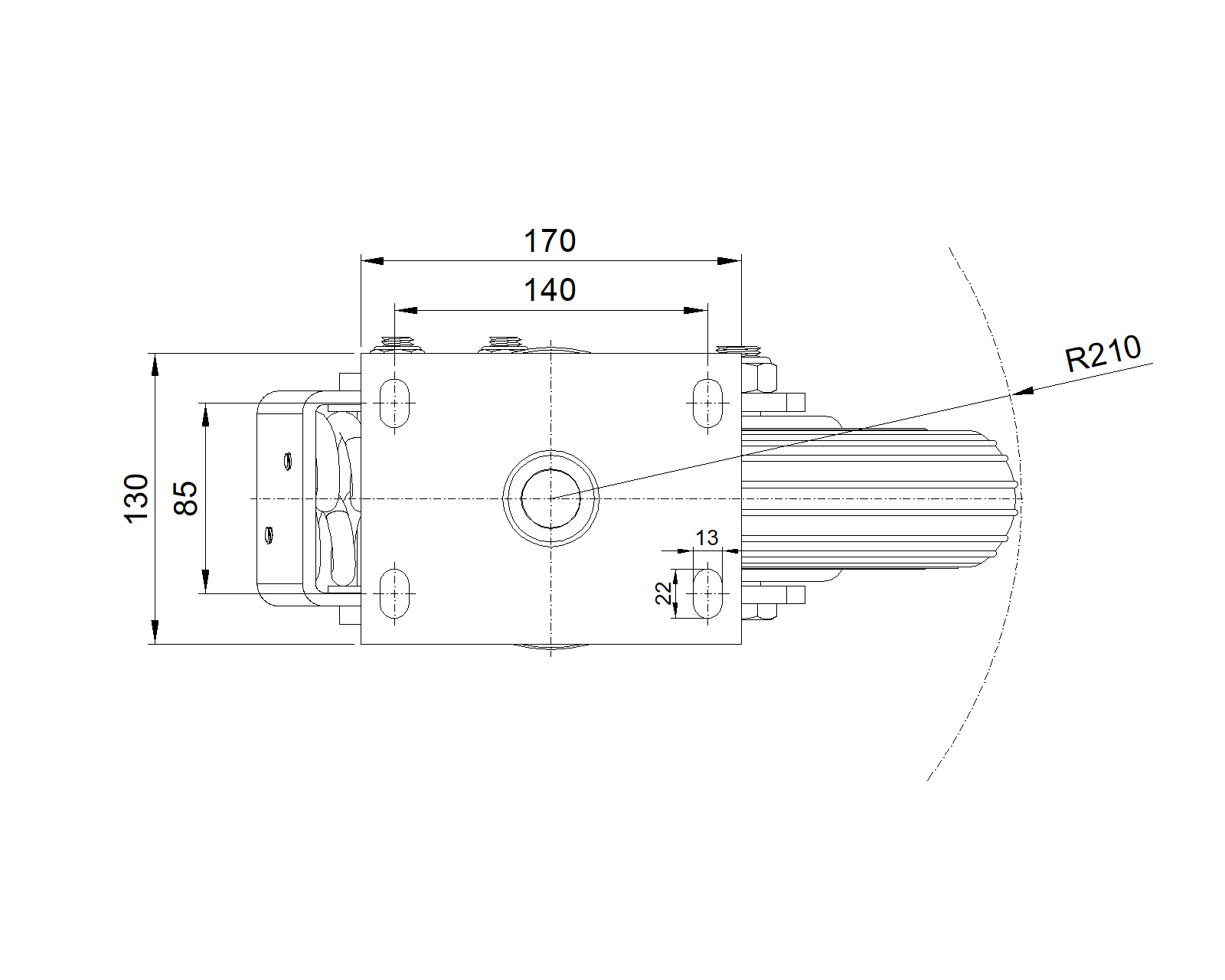

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
250mm
Wheel Width
63mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
170 x 130mm
Bolt Hole Spacing
140x85mm
Plate Hole
22 x 13mm
Offset
83.4mm
Swivel Interference
420mm
Overall Height
353mm
Swivel Radius
210mm
Hardness Of Tread
85±5° Shore A
Load Capacity (Dynamic)
350kgs
Rolling Resistance ● ● ● ○ ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
525kgs
Temperature
-20°C to +80°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
17.29kgs
Standard
ISO22883
