    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
　　EAN
　　　　　 KS-11151000332561
　　　　　 　　　

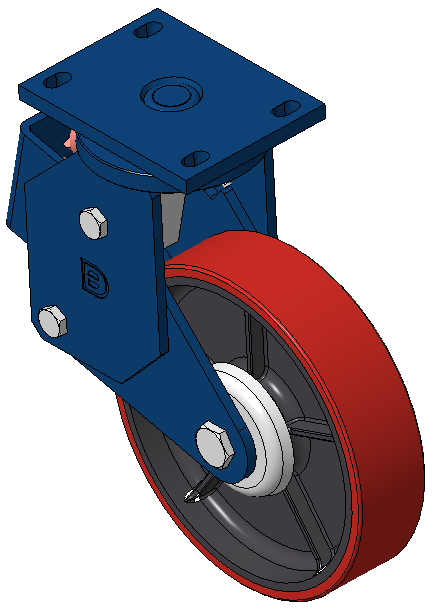

Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Cast Iron Wheel Center with High Quality Polyurethane Wheel Tread, Cast Iron red
Bearings—Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

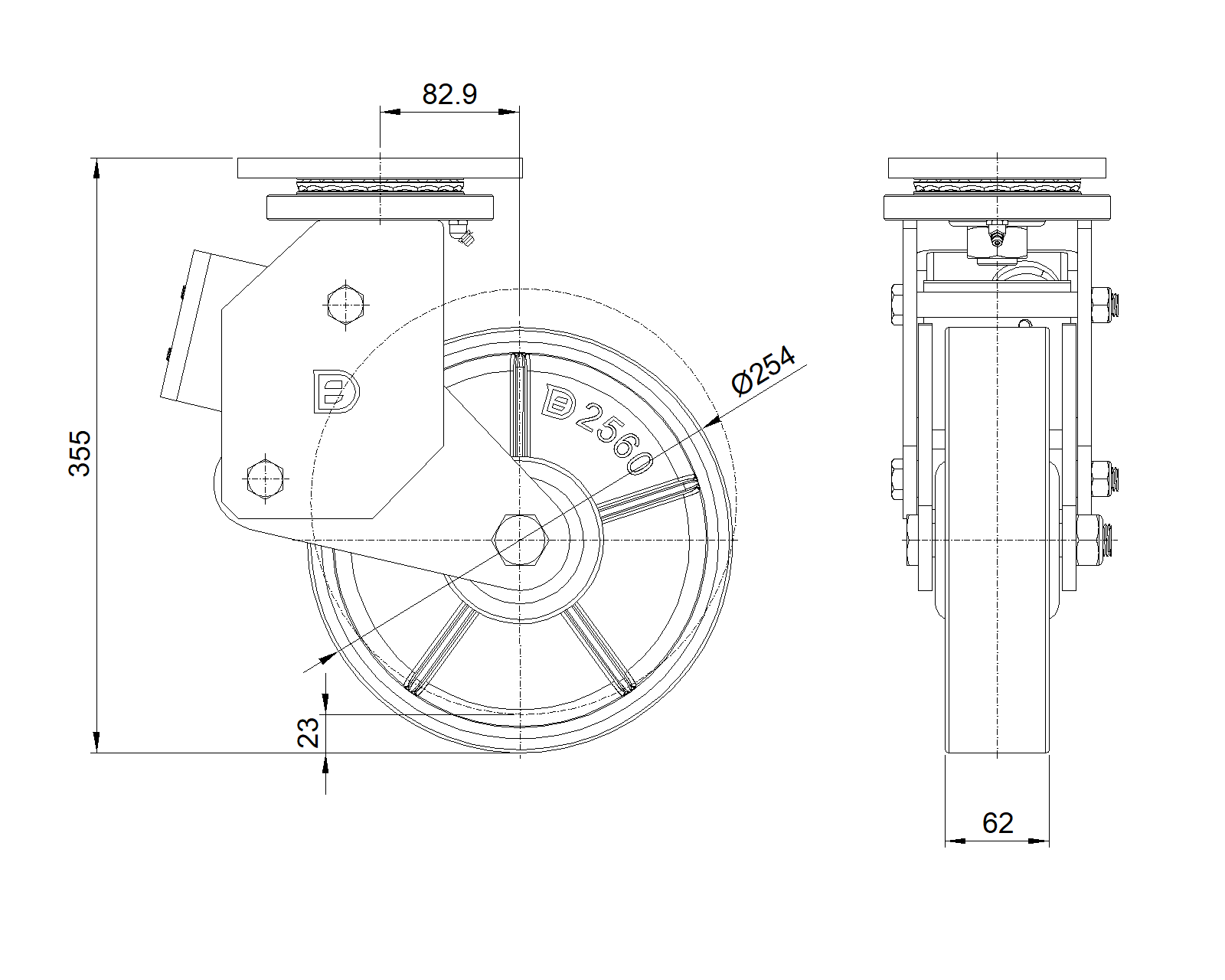

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 254mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings

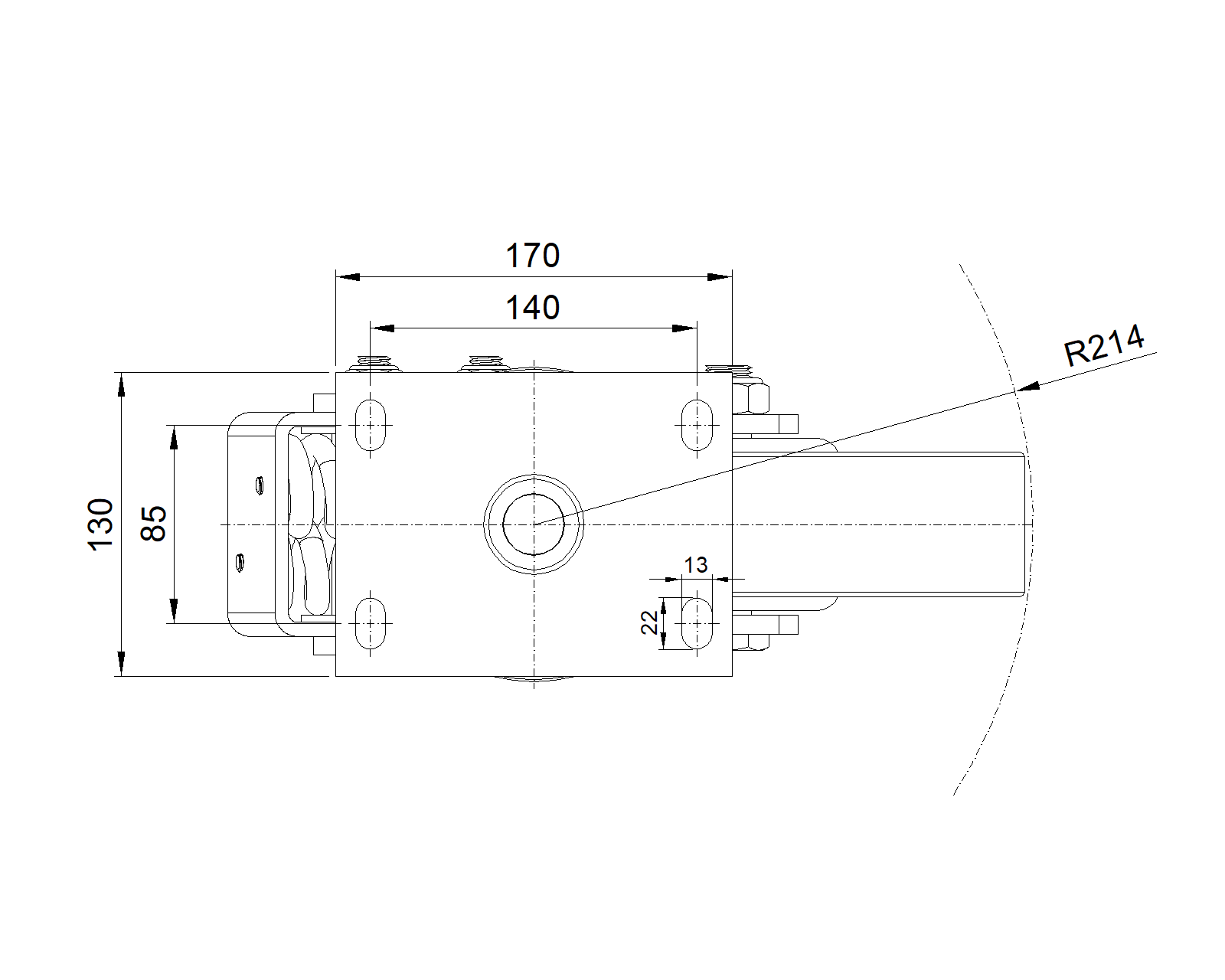

　　Plate Size 170 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Offset 82.9mm　
　　Swivel Interference 428mm　
　　Overall Height 355mm　
　　Swivel Radius 214mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 450kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 675kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 18.47kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1115 Spring-loaded Caster Series (Regular)
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11151000331561
254 mm 450 Kgs 355 mm

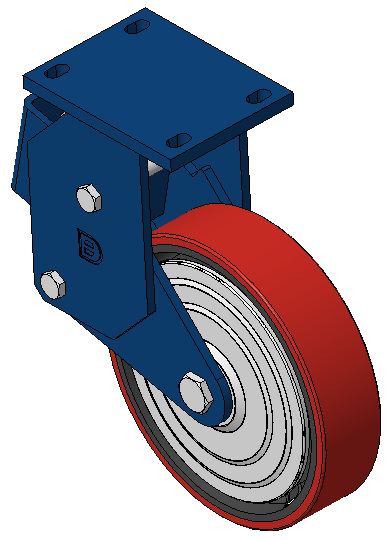

Rigid Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron red, Bearing – Ball Bearings
1115 Spring-loaded Caster Series (Regular)
PU (red flat) Wheel Diameter x Wheel Width 254x 62mm
KS-11151000334561
254 mm 450 Kgs 355 mm

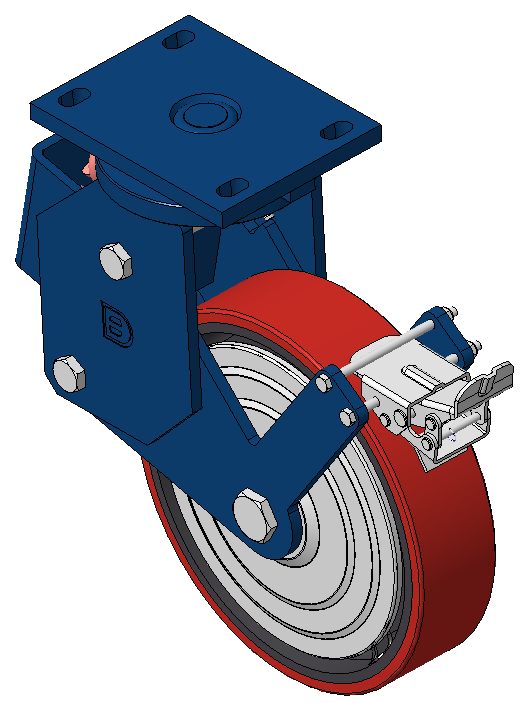

Spring-loaded Caster with rear brake, Welded Caster Fork Blue-painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron core with High Quality Polyurethane Wheel Tread Red-Cast Iron Bearing—Ball Bearings
