    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　NBR (milling black) Wheel Diameter x Wheel Width 125 x 40mm
　　EAN
　　　　　 KS-11150500044271
　　　　　 　　　
Casters with rear brake, Spring-loaded With locking system, Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron Wheel Center, High Quality Polyurethane Wheel Tread, Cast Iron black
Bearings—Ball Bearings
　　Wheel surface: Made of high-quality, highly elastic rubber
　　Wheel Center: iron core/cast iron core

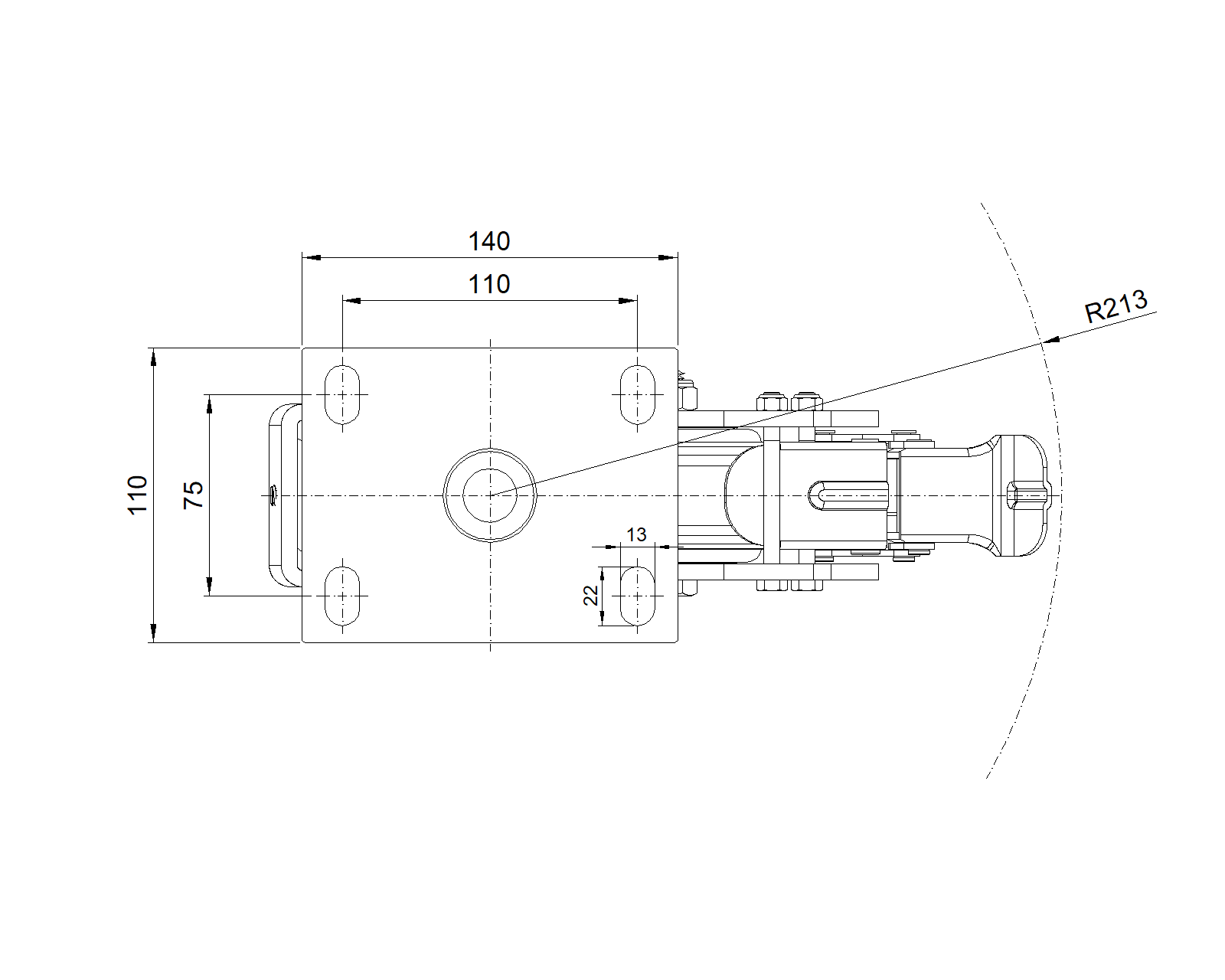

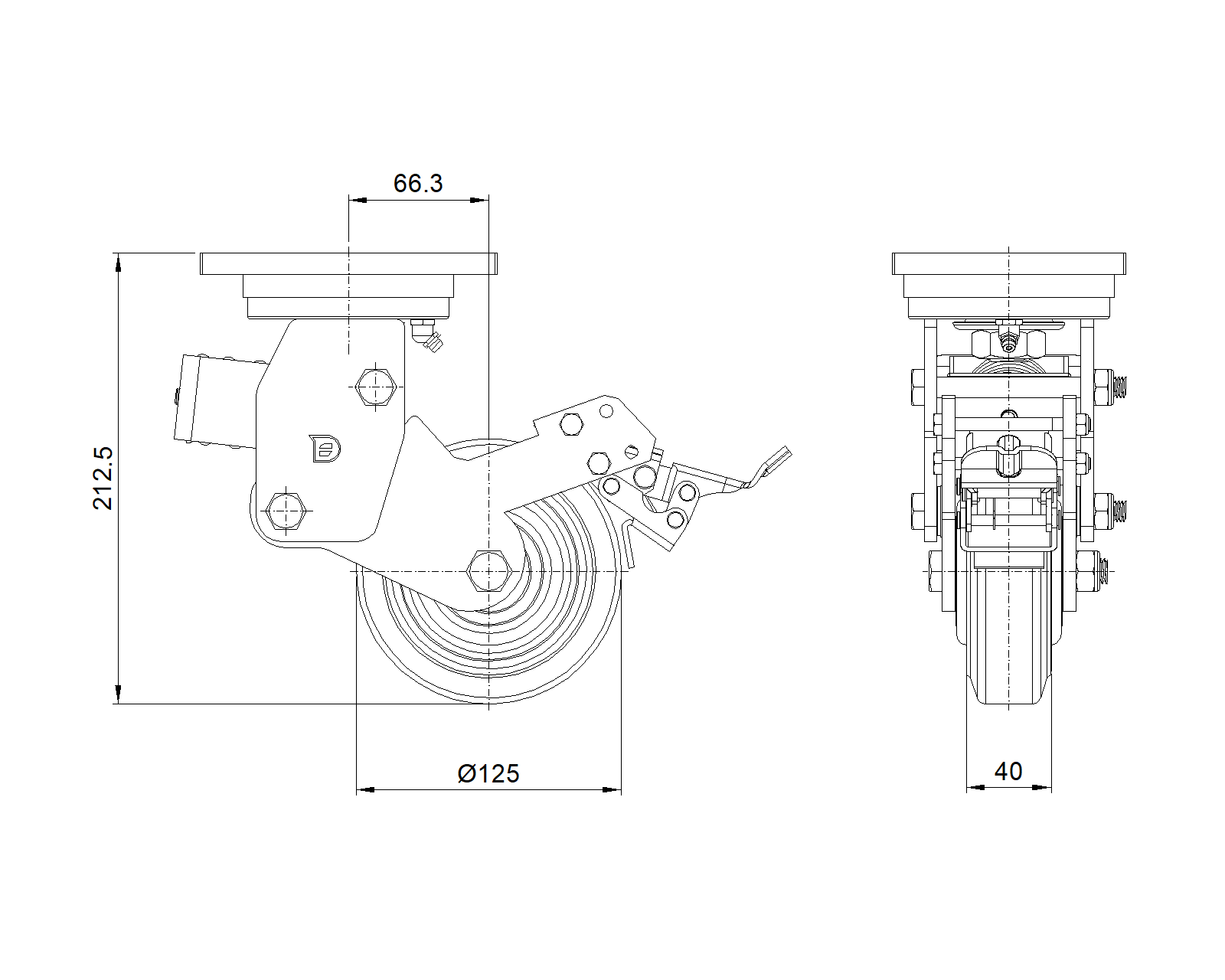

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 140 x 110mm　
　　Bolt Hole Spacing 110x75mm　
　　Plate Hole 22 x 13mm　
　　Offset 66.3mm　
　　Swivel Interference 426mm　
　　Overall Height 212.5mm　
　　Swivel Radius 213mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.36kgs　
　　Standard ISO22883
　　
　　
