    Product Data Sheet
1115 Spring-loaded Caster Series (Regular)
　　QPU (brown round) Wheel Diameter x Wheel Width 254x 62mm
　　A
　　　　　 KS-11151000531551
　　　　　 　　　
Rigid Spring-loaded Caster with Welded Caster Fork Blue painted finish, Mounting Type - Top Plate, 140x85 Bolt Hole Spacing Cast Iron core with High Quality Polyurethane Wheel Tread Cast Iron brown, Bearing – Ball Bearings
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core/cast iron core

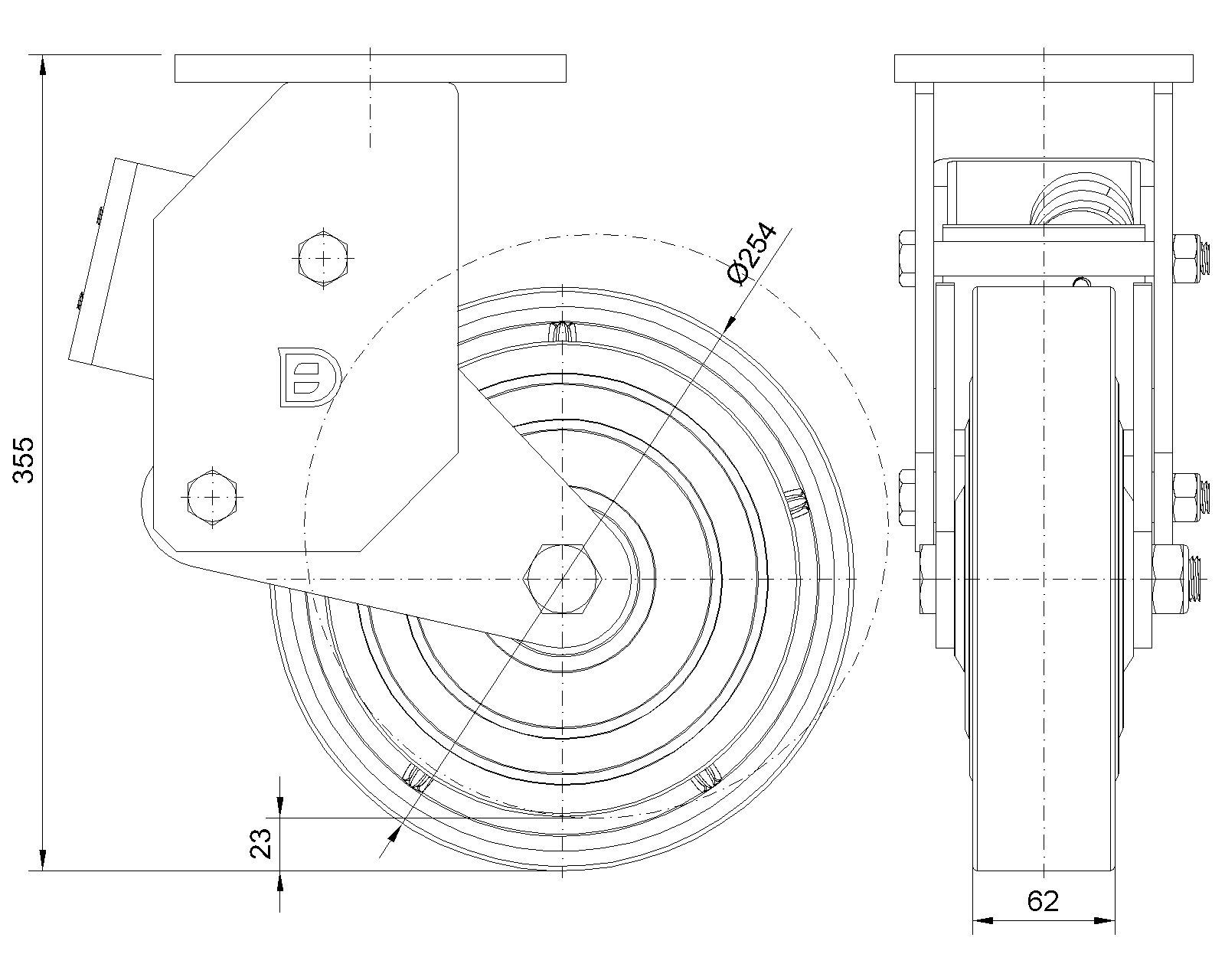

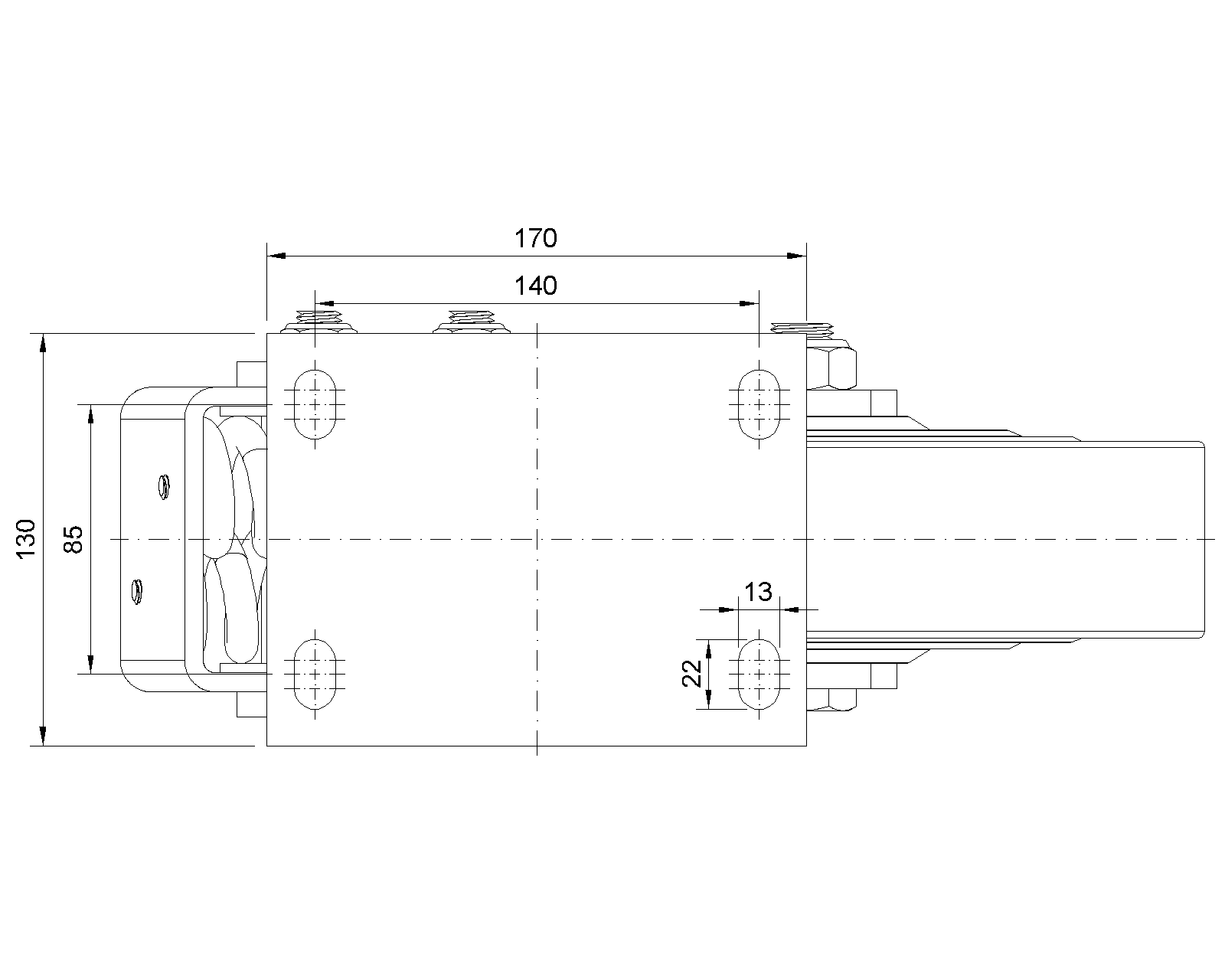

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 254mm　

　　Wheel Width 62mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 170 x 130mm　
　　Bolt Hole Spacing 140x85mm　
　　Plate Hole 22 x 13mm　
　　Overall Height 355mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 500kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 750kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 15.36kgs　
　　Standard ISO22883
　　
　　
