Mounting Type - Top Plate, 110x75 Bolt Hole Spacing
Cast Iron core with High Quality Polyurethane Wheel Tread, Cast Iron brown
Bearings—Ball Bearings
Wheel Center: iron core/cast iron core

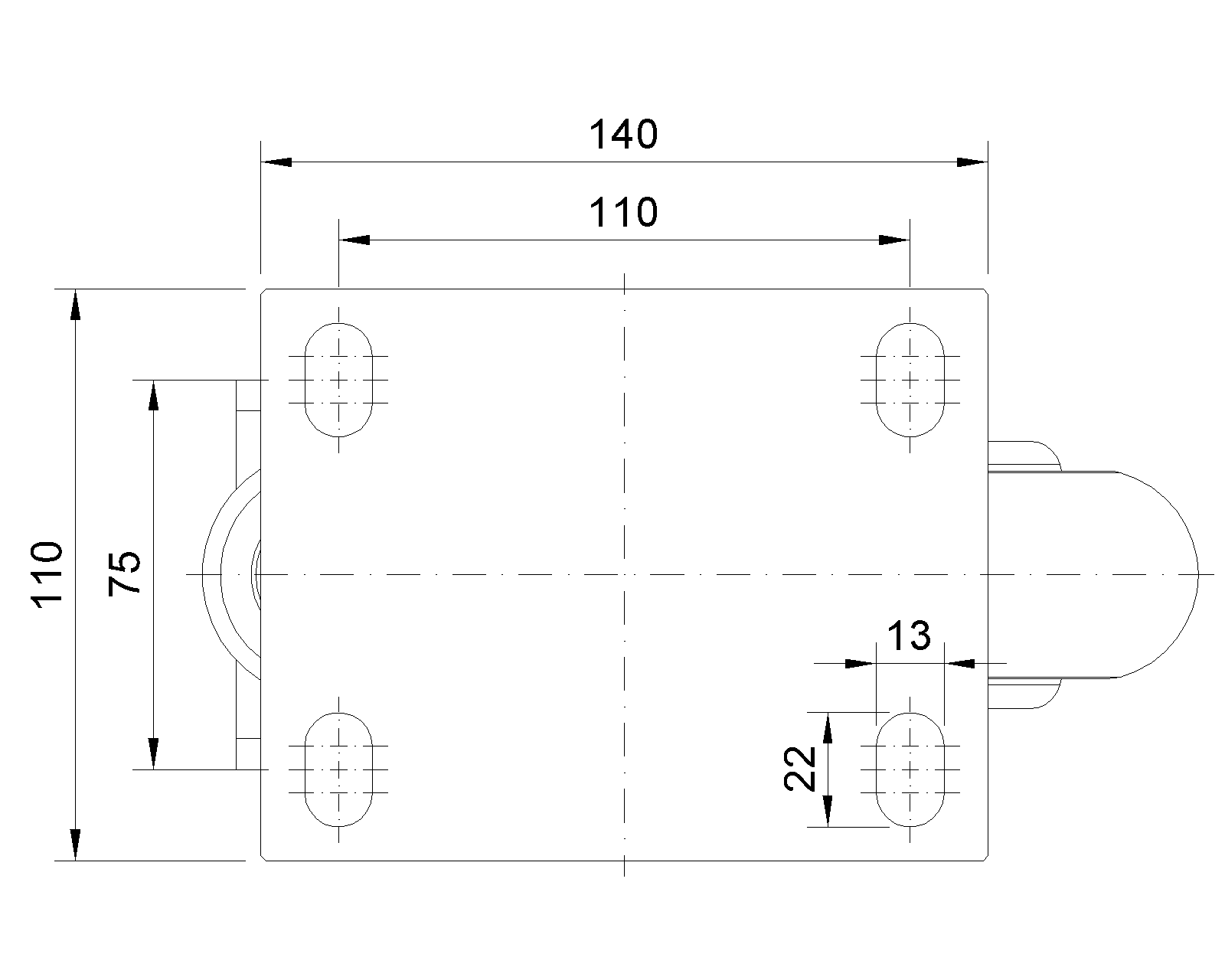

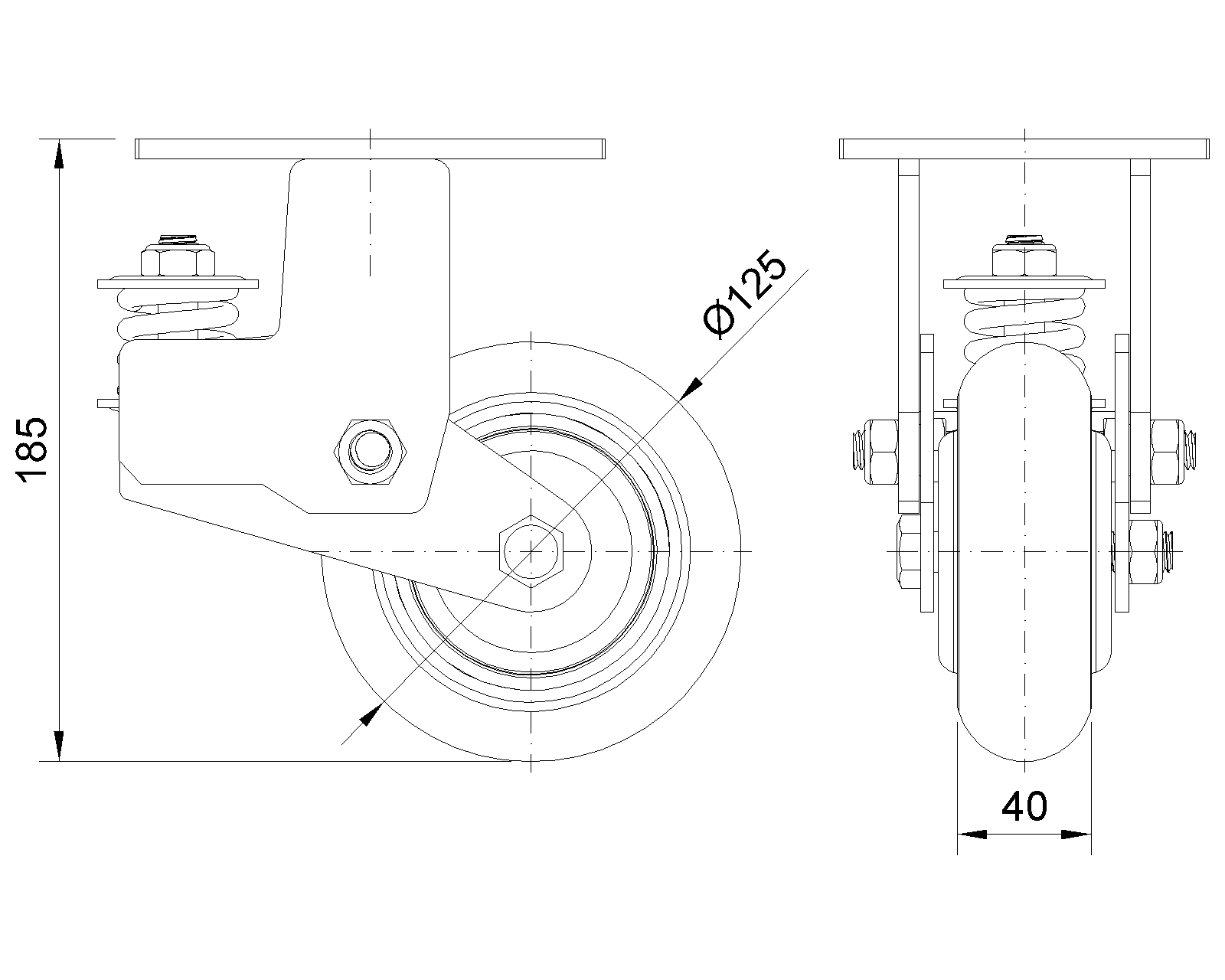

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
40mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
140 x 110mm
Bolt Hole Spacing
110x75mm
Plate Hole
2213mm
Overall Height
185mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
Temperature
-20°C to +70°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
3.54kgs
Standard
ISO22883
