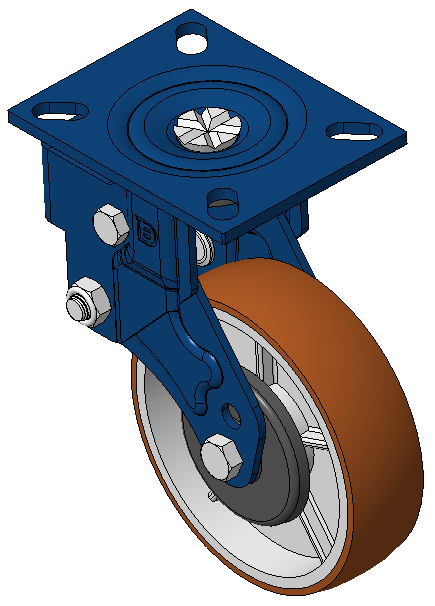

Swivel Spring-loaded Caster with Welded Caster Fork
Blue painted finish, Mounting Type - Top Plate, Bolt Hole Spacing 105 x 78.5
Cast Iron core with High Quality Polyurethane Wheel Tread
Cast Iron brown, Bearing – Ball Bearings
Wheel Center: iron core/cast iron core

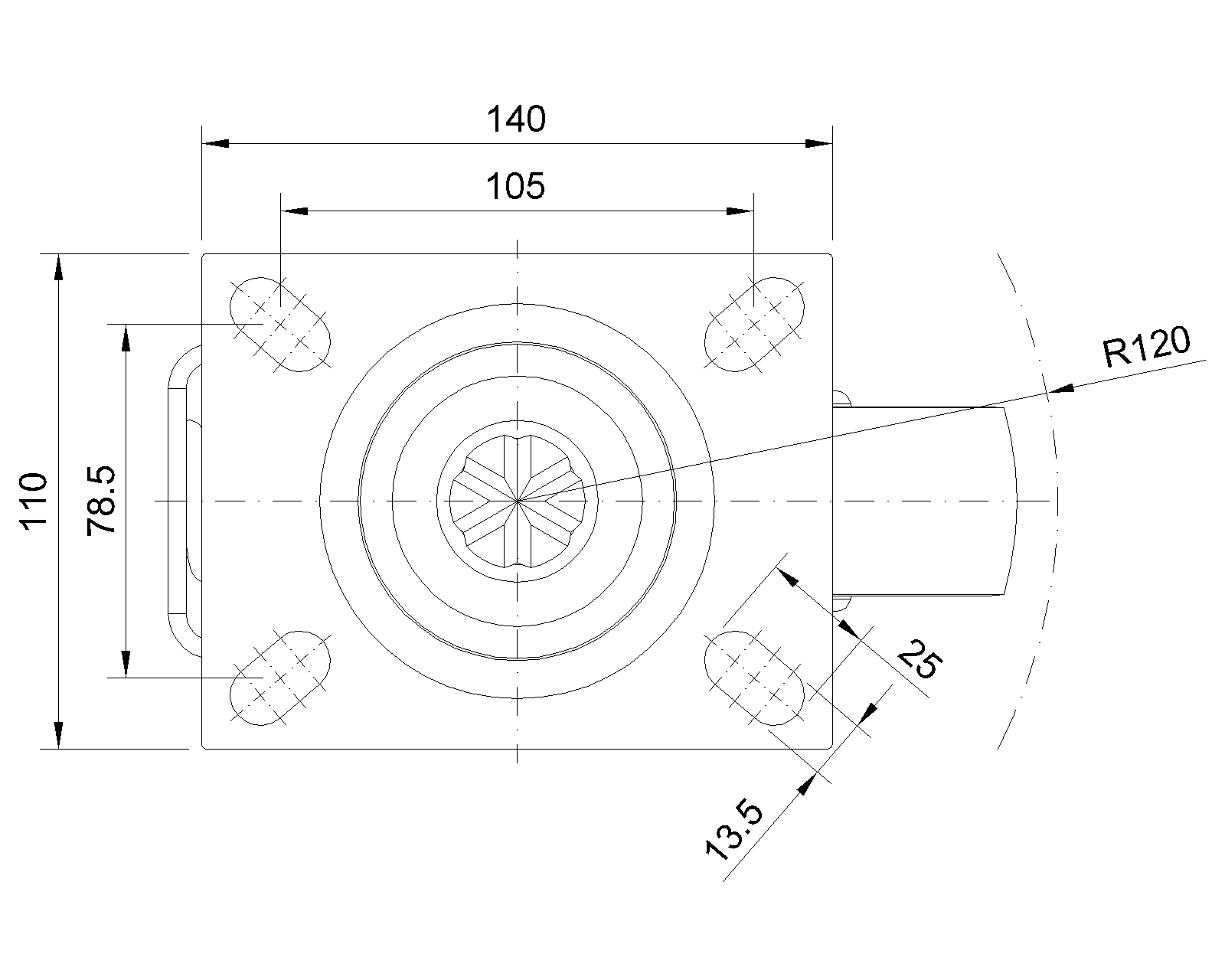

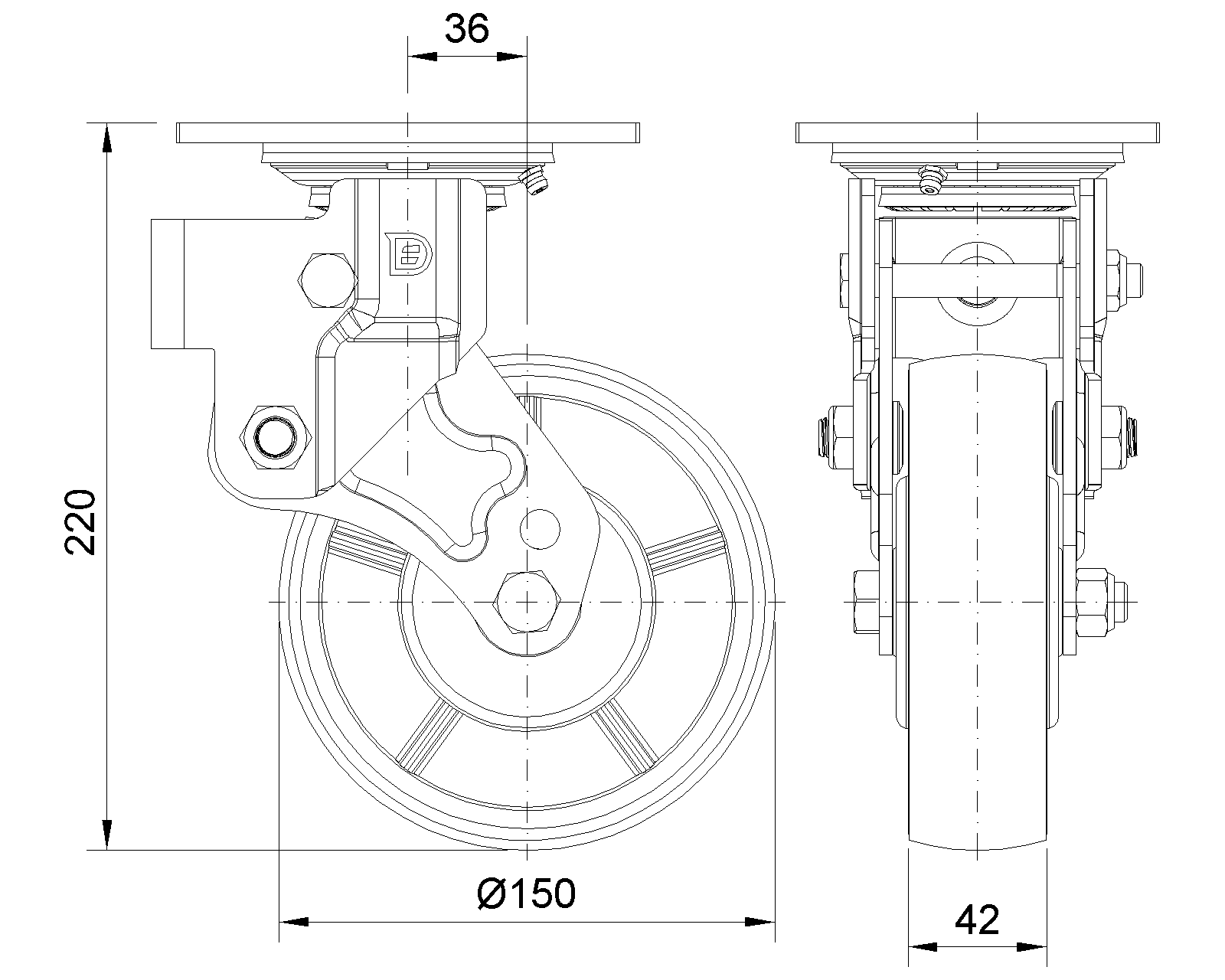

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
150mm
Wheel Width
42mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
140 x 110mm
Bolt Hole Spacing
105 x 77.5mm
Plate Hole
25 x 13.5mm
Offset
36mm
Swivel Interference
240mm
Overall Height
220mm
Swivel Radius
120mm
Hardness Of Tread
92±5° Shore A
Load Capacity (Dynamic)
500kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ● ●
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
750kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
4.11kgs
Standard
ISO22883
