    Product Data Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　PPR (S) Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4111604002090 　　　
　　　　　 　　　

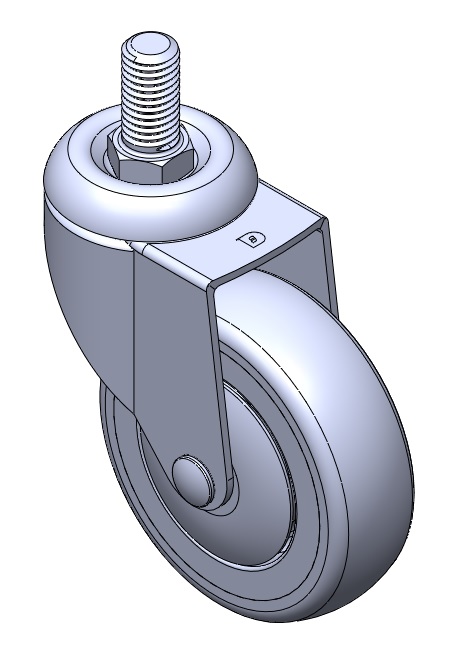

Swivel Caster, Top Plate Riveted and Stamping, 5/8"-11 thread. Surface vibration, Mounting Type - Top Plate. Reinforced Polypropylene core and Wheel Tread. Gray. Bearings—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

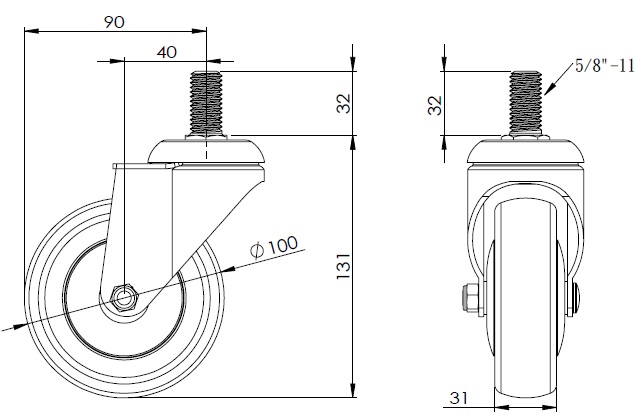

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Threaded Stem 5/8＂-11牙
　　Threaded Length 32mm
　　Offset 40mm　
　　Swivel Interference 180mm　
　　Overall Height 131mm　
　　Swivel Radius 90mm　
　　Hardness Of Tread 82±5° Shore A　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.55kgs　
　　Standard ISO22883
　　
　　
