    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Nylon Wheel Diameter × Wheel Width 100 x 31mm
　　EAN
　　TW-4111604001003 　　　
　　　　　 　　　
Rigid Casters, Stamping Fabricated Caster Fork — 72 x 53.5 mm (2-7/8" x 2-1/8") Bolt Hole Spacing Surface vibration, Mounting Type - Top Plate device Reinforced Polypropylene and Wheel Tread White, wheel — Plain Bearing.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

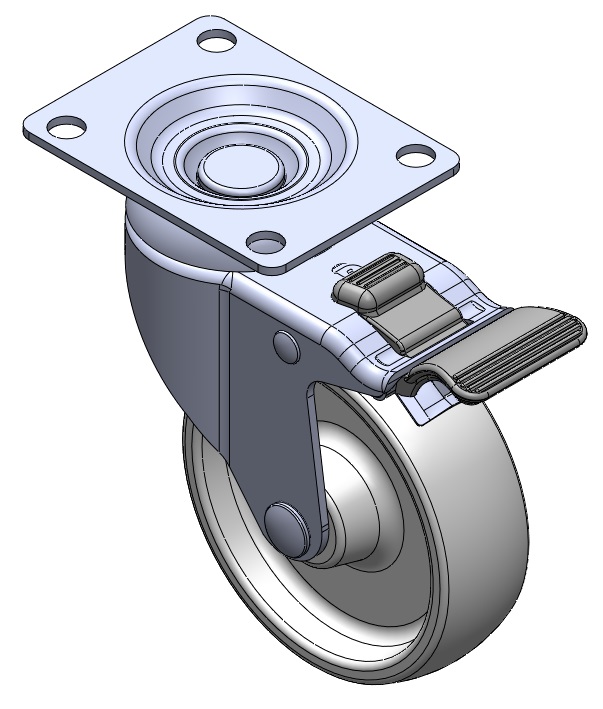

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Overall Height 136mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 120kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 180kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.45kgs　
　　Standard ISO22883
　　
　　
