    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Nylon Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4111603002006 　　　
　　　　　 　　　
Swivel Casters, Threaded Stem Stamping Fork—5/8"-11 teeth; surface vibration resistant, Mounting Type - Threaded Stem; thermoplastic Wheel Center and rim; white; Plain Bearings.
　　Wheel surface: made of thermoplastic plastic
　　Wheel Center: made of thermoplastic plastic

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 5/8＂-11牙
　　Threaded Length 32mm
　　Offset 41.5mm　
　　Swivel Interference 158mm　
　　Overall Height 109mm　
　　Swivel Radius 79mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.55kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
Nylon Wheel Diameter × Wheel Width 75 x 31mm
TW-4111603004006
75 mm 100 Kgs 109 mm

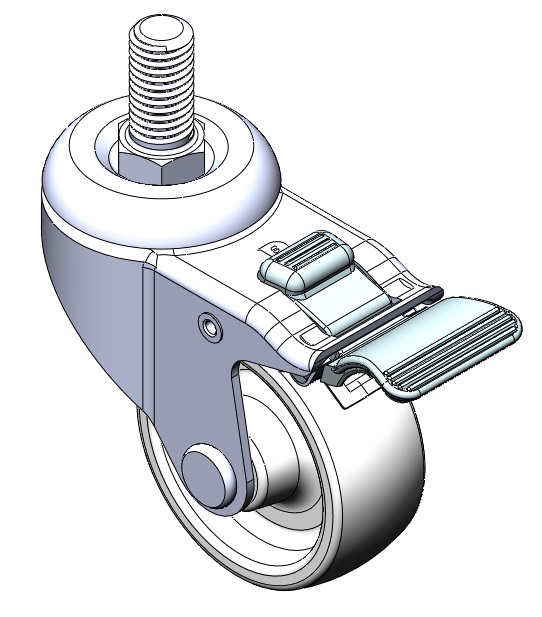

Equipped with double-brake With locking system Casters. Stamping, Threaded Stem feet with Riveted cores—5/8"-11 teeth. Surface vibration resistant, Mounting Type - Threaded Stem. Reinforced Polypropylene Wheel Center and rim. White, Plain Bearings.
