    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Nylon Wheel Diameter × Wheel Width 75 x 31mm
　　EAN
　　TW-4111603002055 　　　
　　　　　 　　　
Swivel Casters, Threaded Stem Stamping Fork—3/8"-16 thread; surface vibration resistant, Mounting Type - Top Plate; thermoplastic Wheel Center and rim; white; Plain Bearings.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheel With Plain Bearing
　　Threaded Stem 3/8＂-16牙
　　Threaded Length 28mm
　　Offset 41.5mm　
　　Swivel Interference 158mm　
　　Overall Height 109mm　
　　Swivel Radius 79mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 100kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 150kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.50kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　

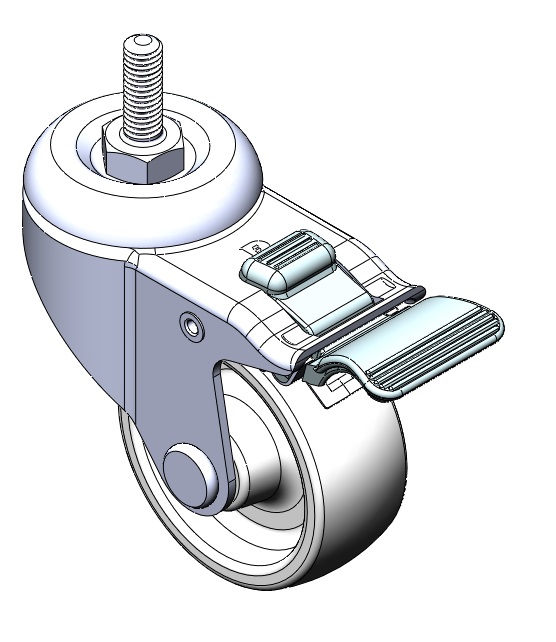

1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
