    Product Information Sheet
1116-SS-LI Light Duty Stainless Steel Caster Series
　　Nylon Wheel Diameter × Wheel Width 75 x 45mm
　　EAN
　　TW-4111603004066 　　　
　　　　　 　　　
Equipped with double-brake locking Casters. Riveted and Stamping Top Plate. Surface vibration, Mounting Type - Top Plate. Reinforced Polypropylene Wheel Center and rim. Black, Bearing—Ball Bearings.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

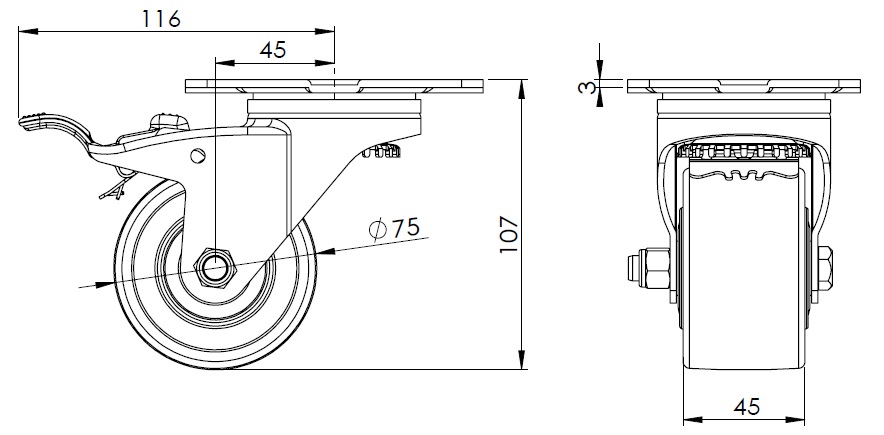

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 75mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 110 x 86mm　
　　Bolt Hole Spacing 83 x 60mm　
　　Plate Hole 14 x 11mm　
　　Offset 45mm　
　　Swivel Interference 232mm　
　　Overall Height 109mm　
　　Swivel Radius 116mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.80kgs　
　　Standard ISO22883
　　
　　
