    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Resolute Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　TW-4111605002018 　　　
　　　　　 　　　

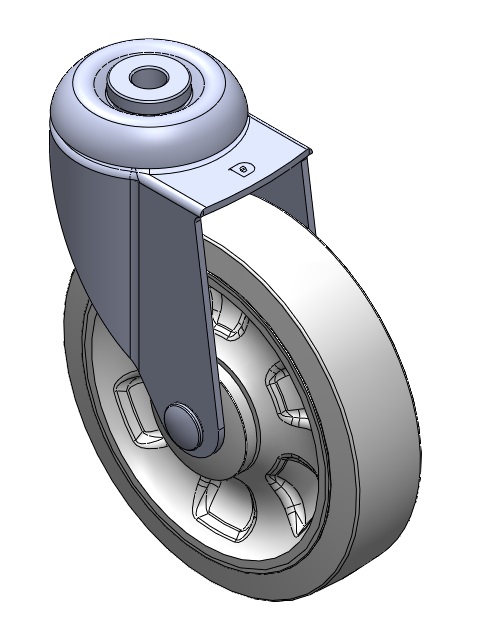

Swivel Casters, Single Bolthole Stamping Fork—hollow Ø10.2 hole; surface vibration, Mounting Type - Top Plate device; reinforced impact-resistant polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread; gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

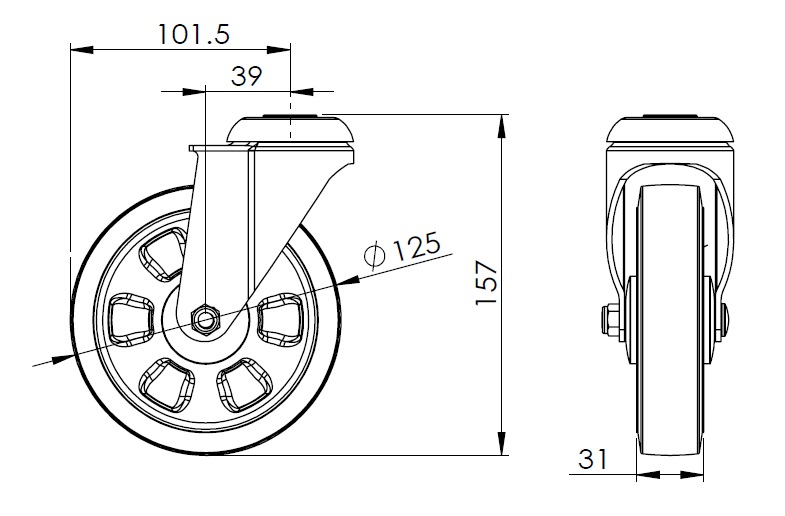

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

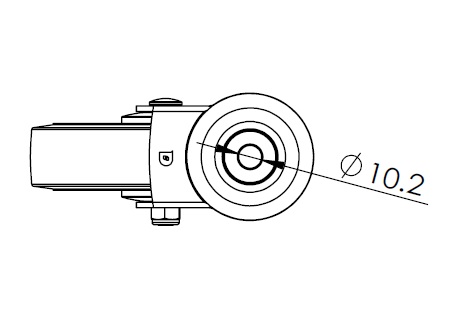

　　Single Bolt HoleCentre Hole 10.2mm　
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 157mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.70kgs　
　　Standard ISO22883
　　
　　
