    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Nylon wheel (white) Wheel diameter × wheel width 125 x 31mm
　　EAN
　　TW-4111605002021 　　　
　　　　　 　　　
Swivel Casters, Riveted and Stamping Top Plate brackets—75 x 45 mm (3" x 1-3/4") Bolt Hole Spacing Surface vibration, Mounting Type - Top Plate device Reinforced thermoplastic Wheel Center and Wheel Tread Gray, Bearing—Ball Bearings.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

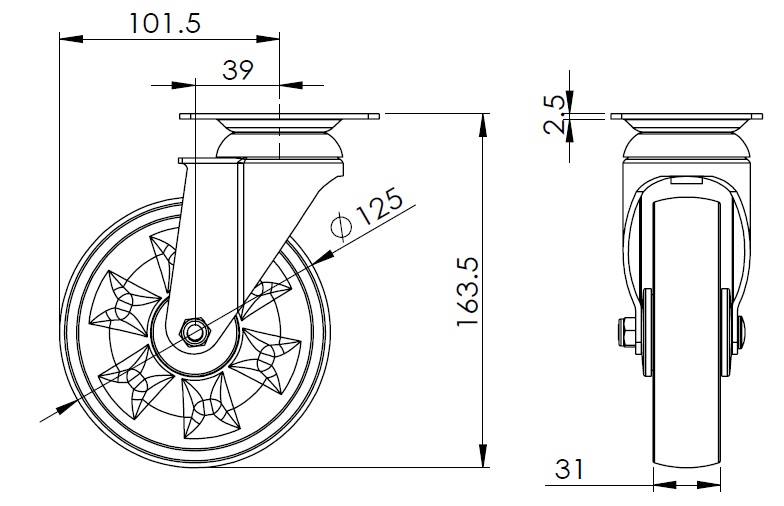

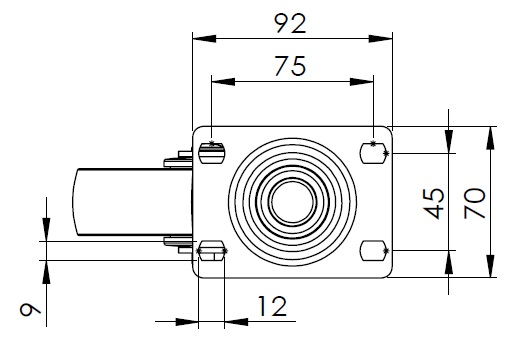

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 163.5mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.85kgs　
　　Standard ISO22883
　　
　　
