    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Nylon Wheel Diameter × Wheel Width 125 x 38mm
　　EAN
　　TW-4111605002042 　　　
　　　　　 　　　
Swivel Casters, Threaded Stem Stamping Fork—1/2"-12 UNC; surface vibration protection, Mounting Type - Threaded Stem; thermoplastic Wheel Center and rim; white; Plain Bearings.
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

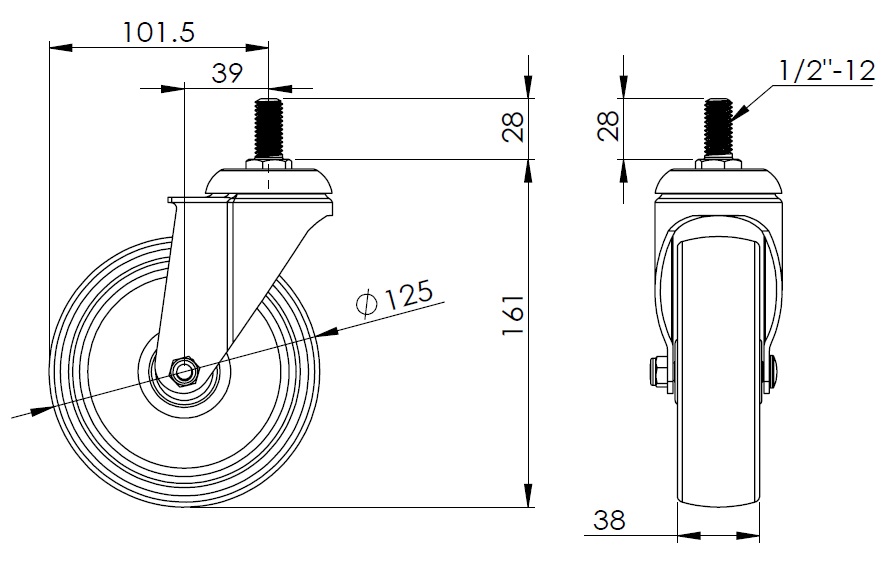

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 38mm　
　　Wheel Bearing Wheel With Plain Bearing

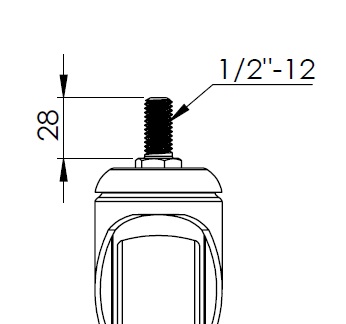

　　Threaded Stem 1/2＂-12
　　Threaded Length 28mm
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 161mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 140kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 210kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
