    Product Information Sheet

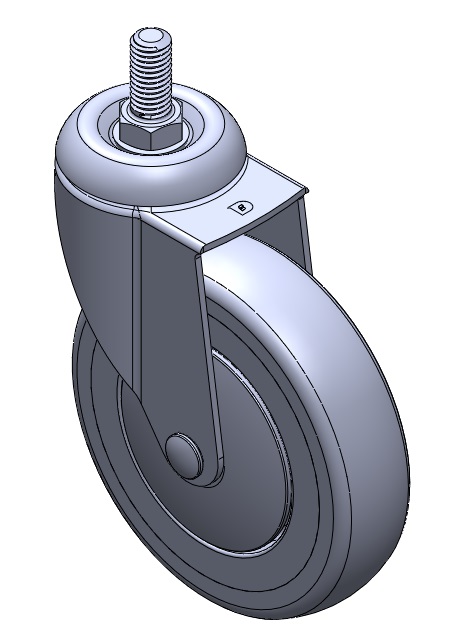

1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Resolute Wheel Diameter × Wheel Width 125 x 31mm
　　EAN
　　TW-4111605002044 　　　
　　　　　 　　　
Portable Casters, Threaded Stem Stamping Fork with Riveted cores—1/2"-12 teeth Surface vibration resistant, Mounting Type - Threaded Stem system High-Quality Impact-Resistant Polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread Gray, Bearing—Ball Bearings
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

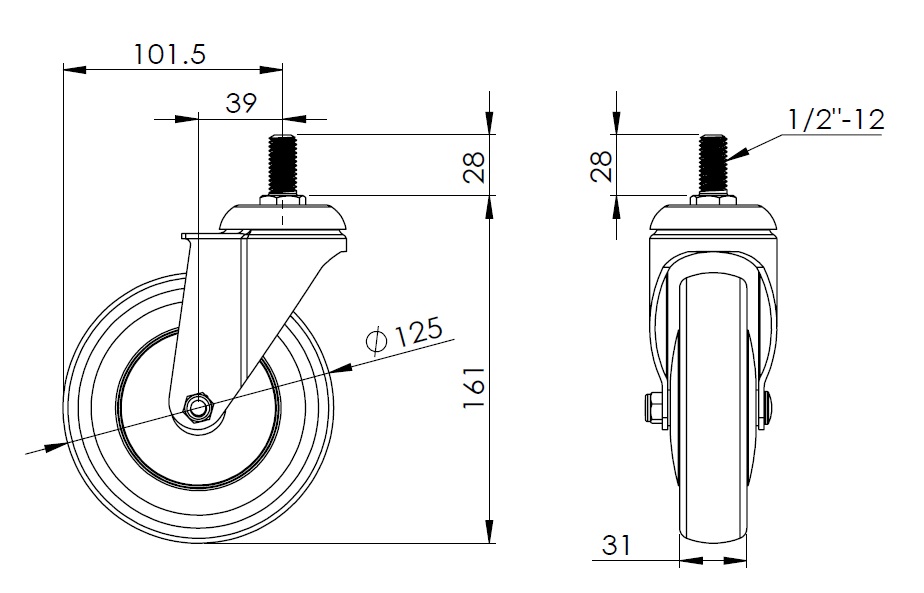

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings

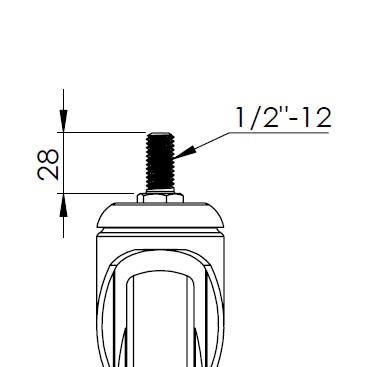

　　Threaded Stem 1/2＂-12
　　Threaded Length 28mm
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 161mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 145kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 217.5kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.75kgs　
　　Standard ISO22883
　　
　　
