    Product Information Sheet

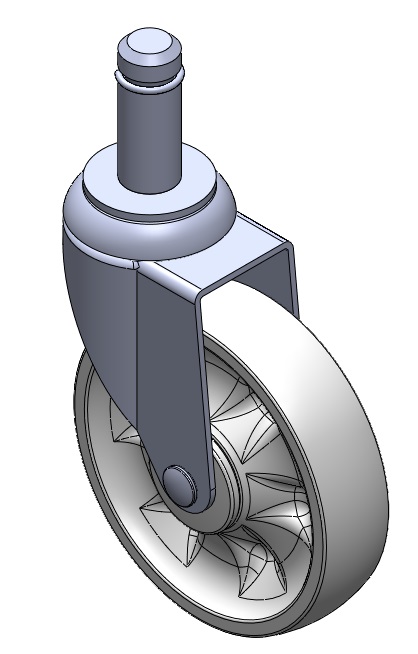

1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Nylon wheel (white) Wheel diameter × wheel width 125 x 31mm
　　EAN
　　TW-4111605002046 　　　
　　　　　 　　　
Swivel Casters, slit-type Riveted Stamping Fork—Ø21.5x56L with retaining rings Surface vibration, slit-type Mounting Type device (no logo) Reinforced thermoplastic Wheel Center and Wheel Tread White, Bearing—Ball Bearings
　　Wheel surface: thermoplastic
　　Wheel Center: thermoplastic

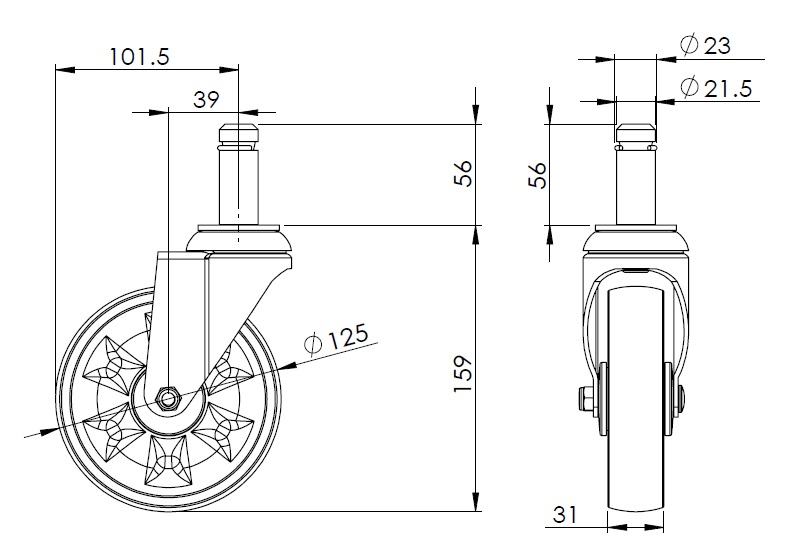

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 21.5mm　
　　Stem Length 56mm　
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 159mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.85kgs　
　　Standard ISO22883
　　
　　
