    Product Information Sheet
1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Resolute (Grey) Wheel Diameter × Wheel Width: 125 x 38mm
　　EAN
　　TW-4111605002056 　　　
　　　　　 　　　
Portable Casters, Riveted and Stamping Top Plate; surface vibration, Mounting Type - Top Plate device; reinforced impact-resistant polypropylene Wheel Center, High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread; gray, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

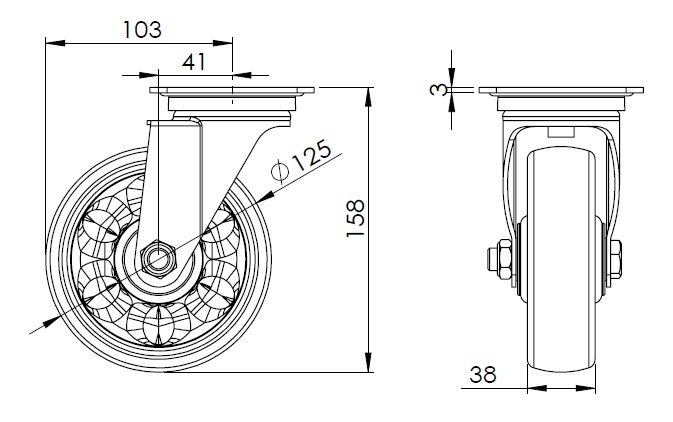

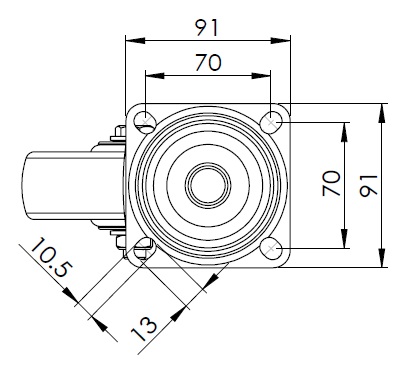

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 38mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 91 x 91mm　
　　Bolt Hole Spacing 70 x 70mm　
　　Plate Hole 13 x 10.5mm　
　　Offset 41mm　
　　Swivel Interference 206mm　
　　Overall Height 158mm　
　　Swivel Radius 103mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.95kgs　
　　Standard ISO22883
　　
　　
