    Product Information Sheet

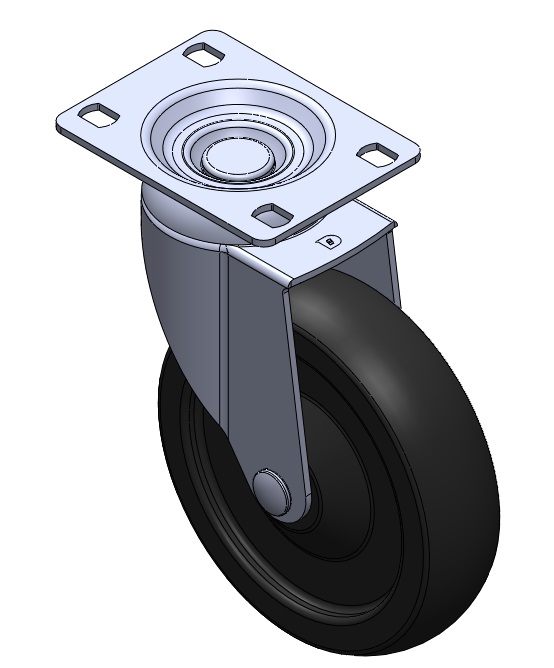

1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　Rubber wheel (black) Wheel diameter × wheel width 125 x 32mm
　　EAN
　　TW-4111605002058 　　　
　　　　　 　　　
Swivel Casters, Riveted and Stamping Top Plate brackets—high-grade perforated surface; vibratory surface, Mounting Type - Top Plate device; High-Quality Resilient Rubber Wheel Center, Wheel Tread; black, wheels—Plain Bearing.
　　Wheel surface: High-quality elastic rubber wheels
　　Wheel Center: High-quality elastic rubber wheel

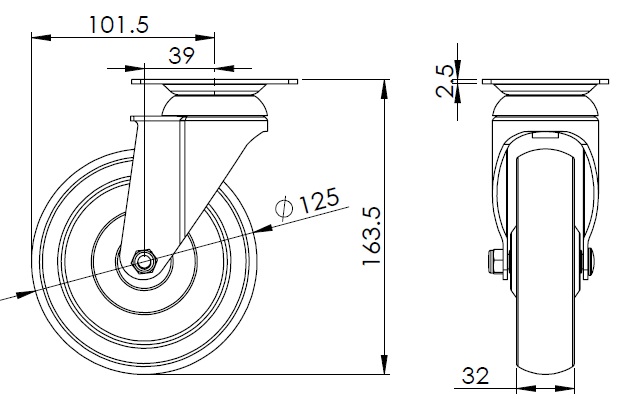

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheel With Plain Bearing

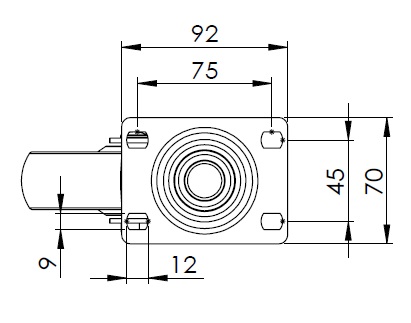

　　Plate Size 92 x 70mm　
　　Bolt Hole Spacing 75 x 45mm　
　　Plate Hole 12 x 9mm　
　　Offset 39mm　
　　Swivel Interference 203mm　
　　Overall Height 163.5mm　
　　Swivel Radius 101.5mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 90kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 135kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.85kgs　
　　Standard ISO22883
　　
　　
