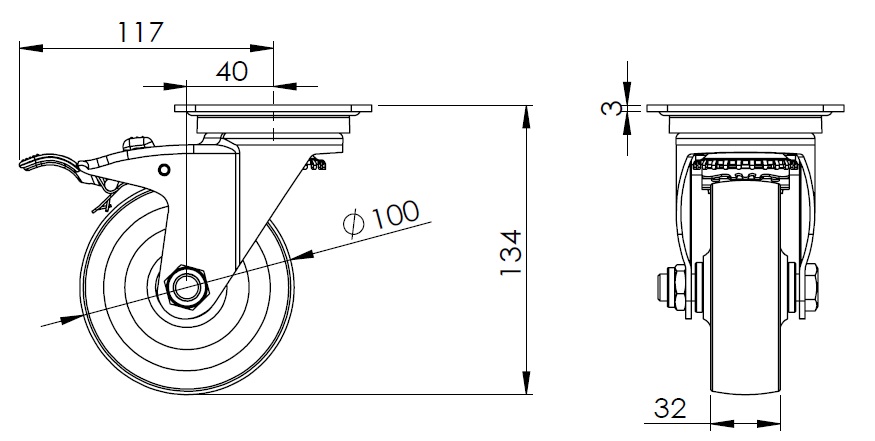

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
100mm
Wheel Width
32mm
Wheel Bearing
Wheel With Plain Bearing

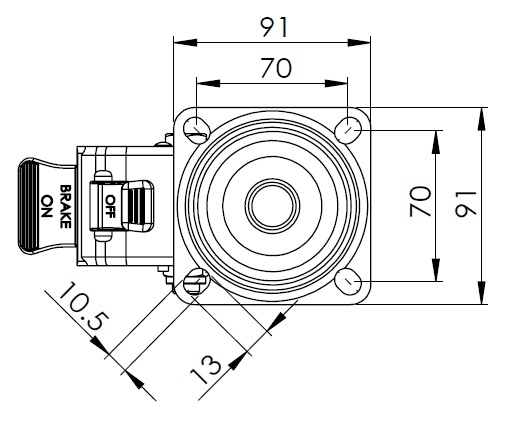

Plate Size
91 x 91mm
Bolt Hole Spacing
70 x 70mm
Plate Hole
13 x 10.5mm
Offset
41mm
Swivel Interference
210mm
Overall Height
134mm
Swivel Radius
105mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
160kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
240kgs
Temperature
-20°C to +80°C

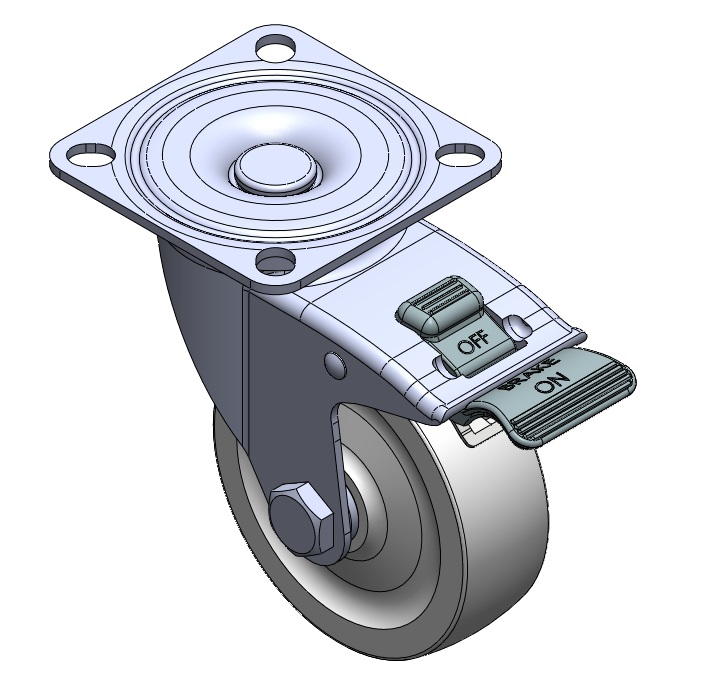

Fork Type
Swivel Caster With Total Brake
Stainless
Y
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.95kgs
Standard
ISO22883
