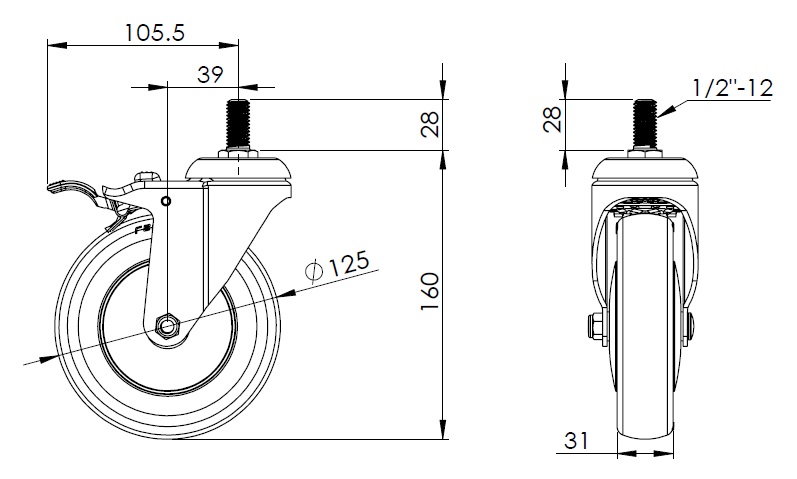

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
Wheel Bearing
Wheels With Ball Bearings
Threaded Stem
1/2＂-12
Threaded Length
28mm
Offset
39mm
Swivel Interference
211mm
Overall Height
160mm
Swivel Radius
105.5mm
Hardness Of Tread
82±5° Shore A
Load Capacity (Dynamic)
110kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ●
Load Capacity (Static)
165kgs
Temperature
-20°C to +60°C
Fork Type
Swivel Caster With Total Brake
Stainless
Y
Electrical Conductivity
Y 導電值10^4~10^6
Anti-Static
N/A
Weight
0.85kgs
Standard
ISO22883
