◄ Back ⍗ Product Data Sheet (Metric) ⍗ Product Data Sheet (Imperial) ⍗ 3D image files

	1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
	W Nylon wheel (white) Wheel diameter × wheel width 125 x 31mm
	EAN
	TW-4111605004032

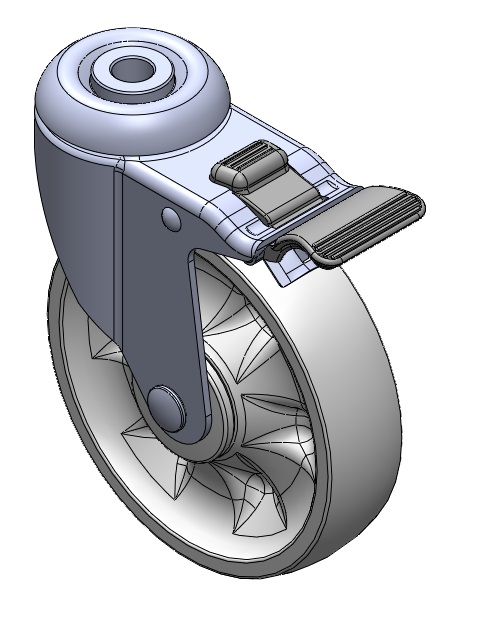

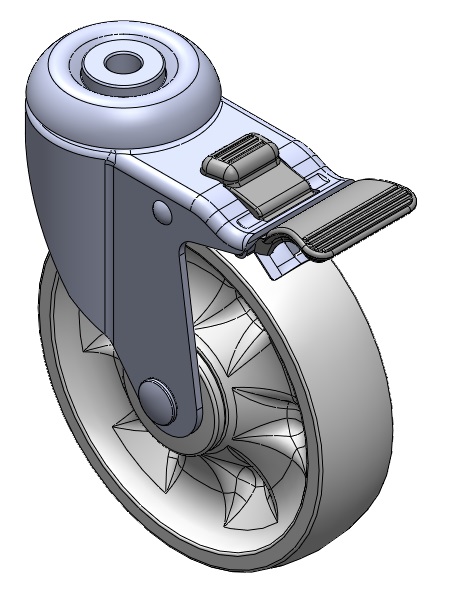

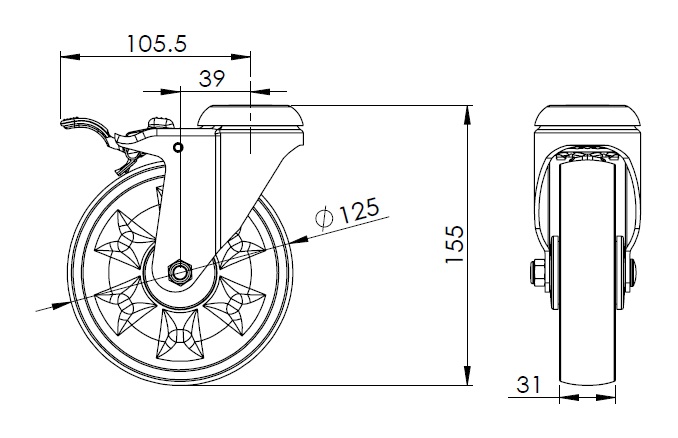

	Drawings are for reference only and may differ from the product

	Metric Imperial 　　Wheel Diameter 125mm　　　Wheel Width 31mm
	Wheel Bearing Wheels With Ball Bearings 　　Single Bolt HoleCentre Hole 12.2mm　　　Offset 39mm　　　Swivel Interference 211mm　　　Overall Height 155mm　　　Swivel Radius 105.5mm　　　Hardness Of Tread 75±5° Shore D　　　Load Capacity (Dynamic) 150kgs	Rolling Resistance　　　 ● ● ● ● ● 　　Operating Noise　　　　 ● ● ○ ○ ○ 　　Floor Surface Preservation ● ● ○ ○ ○
	Load Capacity (Static) 225kgs　　　Temperature -20°C to +80°C　　　Fork Type Swivel Caster With Total Brake
	Stainless Y 　　Electrical Conductivity N/A 　　Anti-Static N/A 　　Weight 0.80kgs　　　Standard ISO22883
