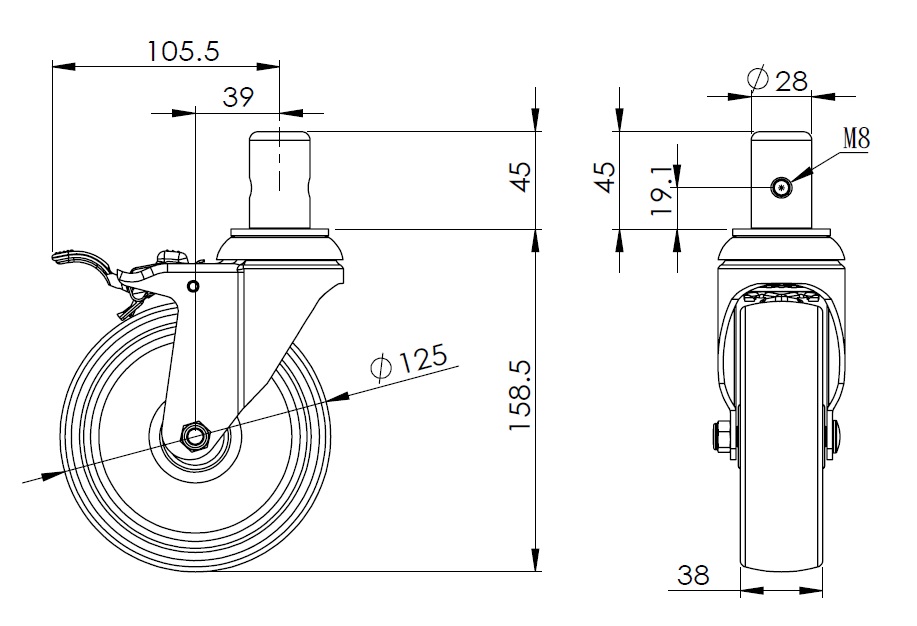

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
38mm
Wheel Bearing
Wheel With Plain Bearing
Stem Diameter
28mm
Stem Length
45mm
Offset
39mm
Swivel Interference
211mm
Overall Height
158.5mm
Swivel Radius
105.5mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
140kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
210kgs
Temperature
-20°C to +80°C
Fork Type
Swivel Caster With Total Brake
Stainless
Y
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.95kgs
Standard
ISO22883
