1116-SS-MI Medium Duty Institutional Stainless Steel Caster Series
　　W Nylon wheel (white) Wheel diameter × wheel width 125 x 31mm
　　EAN
　　TW-4111605004054 　　　
　　　　　 　　　
　　
　　

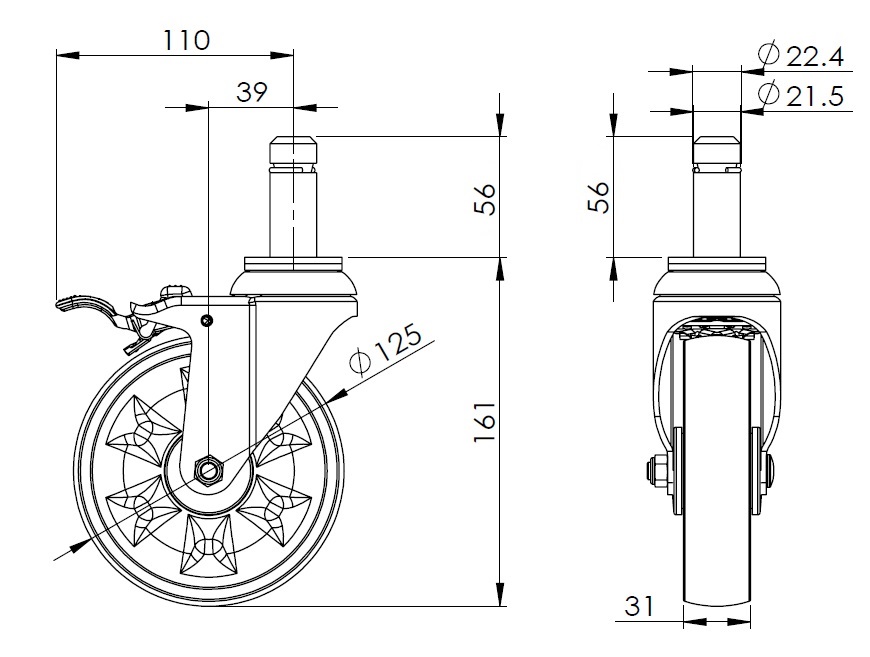

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 31mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Stem Diameter 21.5mm　
　　Stem Length 56mm　
　　Offset 39mm　
　　Swivel Interference 220mm　
　　Overall Height 161mm　
　　Swivel Radius 110mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless Y
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.95kgs　
　　Standard ISO22883
　　
　　
