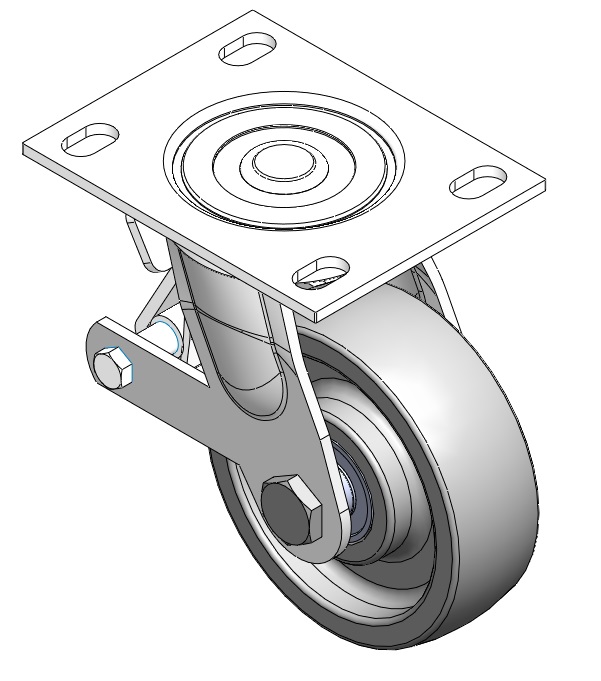

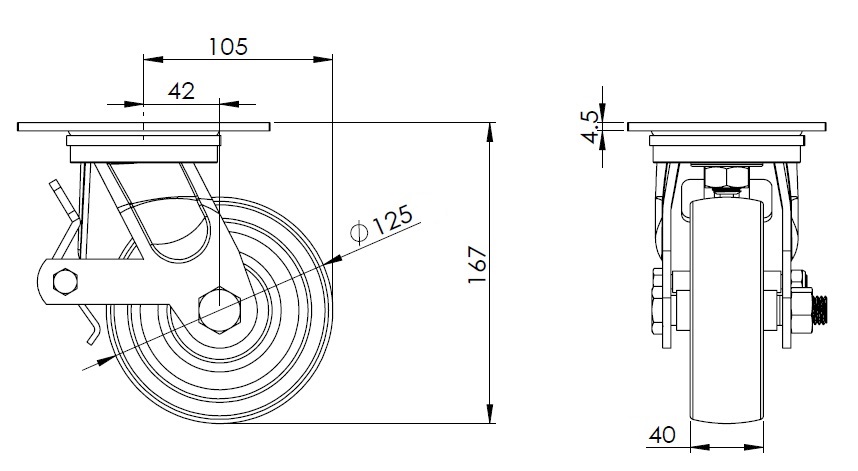

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
40mm
Wheel Bearing
Wheels With Ball Bearings
Plate Size
140 x 110mm
Bolt Hole Spacing
110 x 750mm
Plate Hole
22 x 13mm
Offset
42mm
Swivel Interference
210mm
Overall Height
167mm
Swivel Radius
105mm
Hardness Of Tread
75±5° Shore D
Load Capacity (Dynamic)
150kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ○ ○ ○
Floor Surface Preservation ● ● ○ ○ ○
Load Capacity (Static)
225kgs
Temperature
-20°C to +80°C
Fork Type
Swivel Caster With Total Brake
Stainless
Y
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.50kgs
Standard
ISO22883
