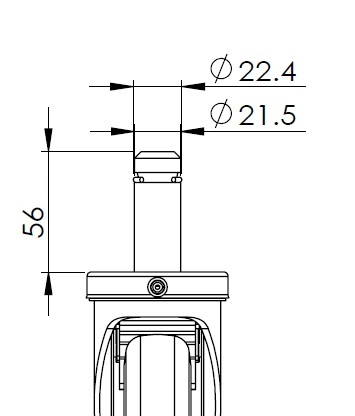

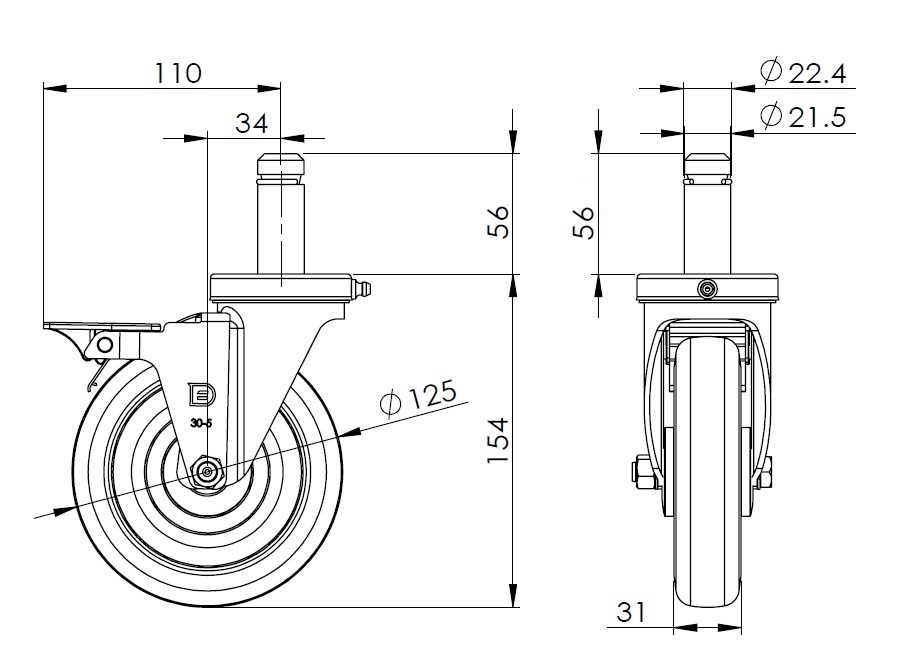

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
125mm
Wheel Width
31mm
Wheel Bearing
Wheel With Plain Bearing
Stem Diameter
21.5mm
Stem Length
56mm
Offset
34mm
Swivel Interference
220mm
Overall Height
154mm
Swivel Radius
110mm
Hardness Of Tread
94±5° Shore A
Load Capacity (Dynamic)
136kgs
Rolling Resistance ● ● ● ● ○
Operating Noise ● ● ● ● ○
Floor Surface Preservation ● ● ● ● ○
Load Capacity (Static)
204kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster With Wheel Brake
Stainless
Y
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.95kgs
Standard
ISO22883
