1117 Blue Fork Pneumatic Caster Series
　　Flat Free Tire Wheel Diameter × Wheel Width 208 x53.5 mm
　　
　　　　　 　　　
　　YJ-11170800431011 　　　

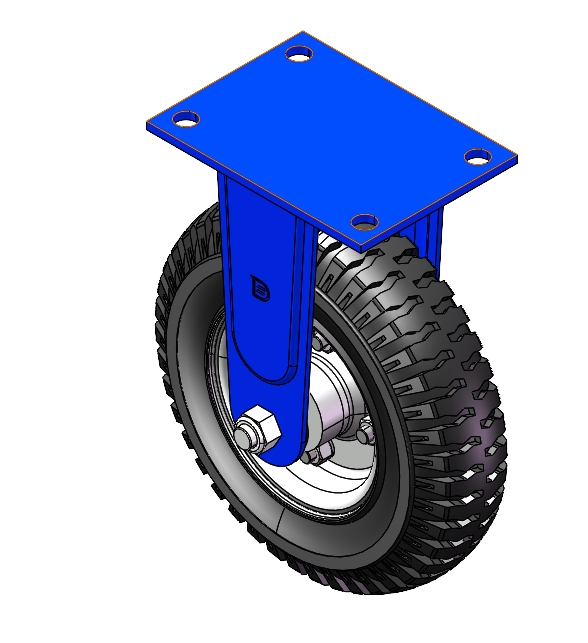

Rigid Caster, Welded Caster Fork Blue-painted finish, Top Plate (5T) Mounting Type Q235 Wheel Hub, High-Quality Resilient Rubber tread Black, Bearing—Chrome steel Ball bearing.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core

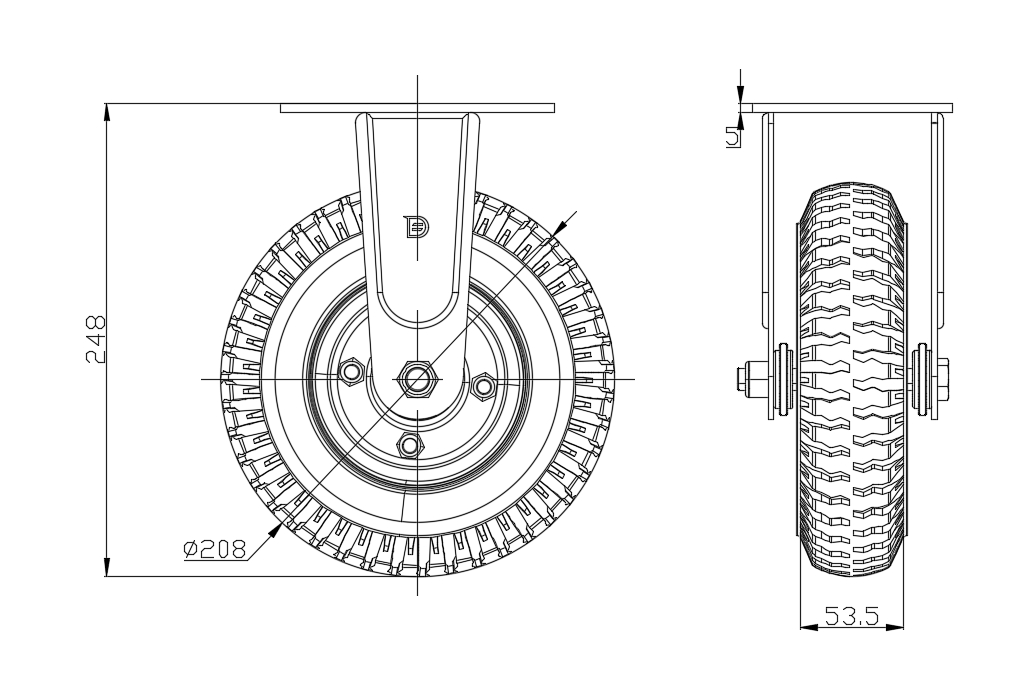

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 208mm　

　　Wheel Width 53.5mm　
　　Wheel Bearing Wheels With Ball Bearings

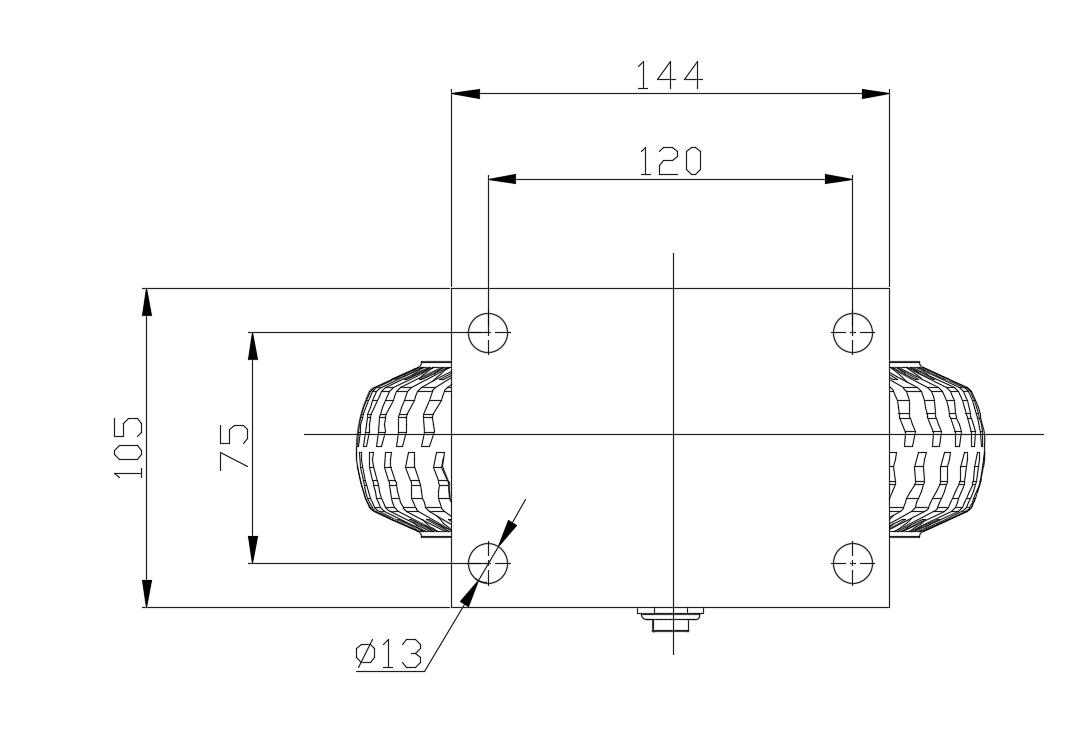

　　Plate Size 144 x 105mm　
　　Bolt Hole Spacing 120 x 75mm　
　　Plate Hole 13mm　
　　Overall Height 248mm　
　　Hardness Of Tread 75±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ○ ○ ○

　　Floor Surface Preservation  ● ● ○ ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 3.43kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1117 Blue Fork Pneumatic Caster Series
Flat Free Tire Wheel Diameter × Wheel Width 208 x53.5 mm
YJ-11170800432011
208 mm 150 Kgs 248 mm

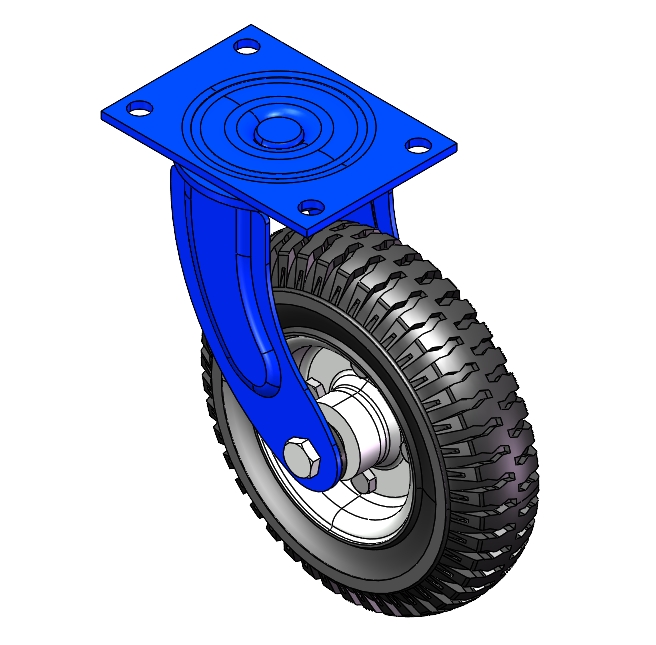

Swivel Caster with Riveted Fork and Stamping Fork. Blue-painted finish, Top Plate (5T) Mounting Type system. Q235 Wheel Hub with High-Quality Resilient Rubber tread. Black, Bearing—Chrome steel Ball bearing.
1117 Blue Fork Pneumatic Caster Series
Flat Free Tire Wheel Diameter × Wheel Width 208 x53.5 mm
YJ-11170800434021
208 mm 150 Kgs 248 mm

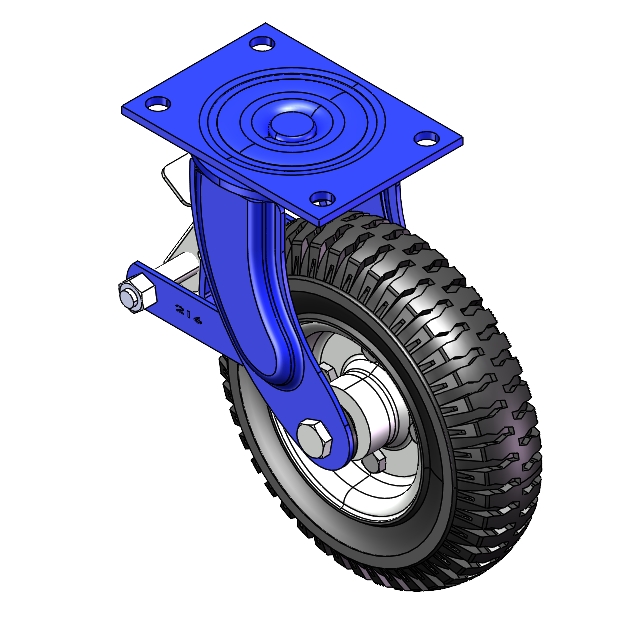

Center Brake Locking system. Top Plate Riveted and Stamping. Blue-painted finish, Top Plate (5T) Mounting Type system. Q235 Wheel Hub with High-Quality Resilient Rubber tread. Black, Bearing—Chrome steel Ball bearing.
