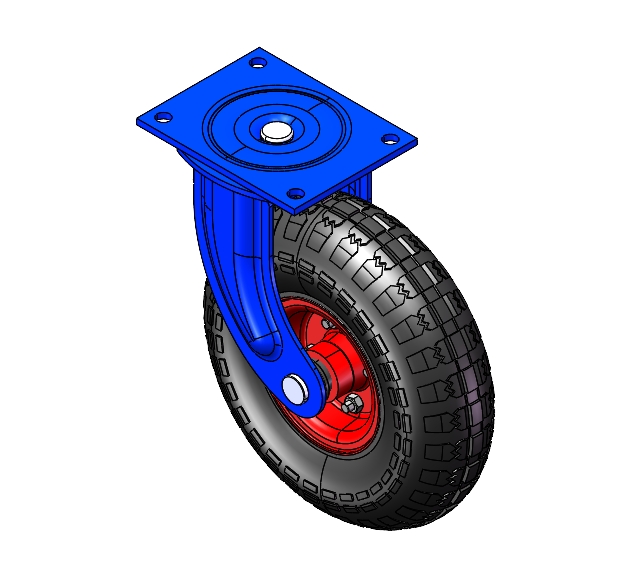

1117 Blue Fork Pneumatic Caster Series
　　Wind wheel inflatable wheel(Black)wheel diameter × wheel width 273 x 87mm
　　
　　　　　 　　　
　　YJ-11171000012051 　　　
Swivel Caster with Riveted Fork and Stamping Fork.
Blue-painted finish, Top Plate-mounted (6T) Mounting Type system.
Cast Iron wheel center, High-Quality Resilient Rubber Wheel Tread; Wheel Tread provides Compression Resistance and wear resistance.
Black, Bearing—Ball Bearings.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial

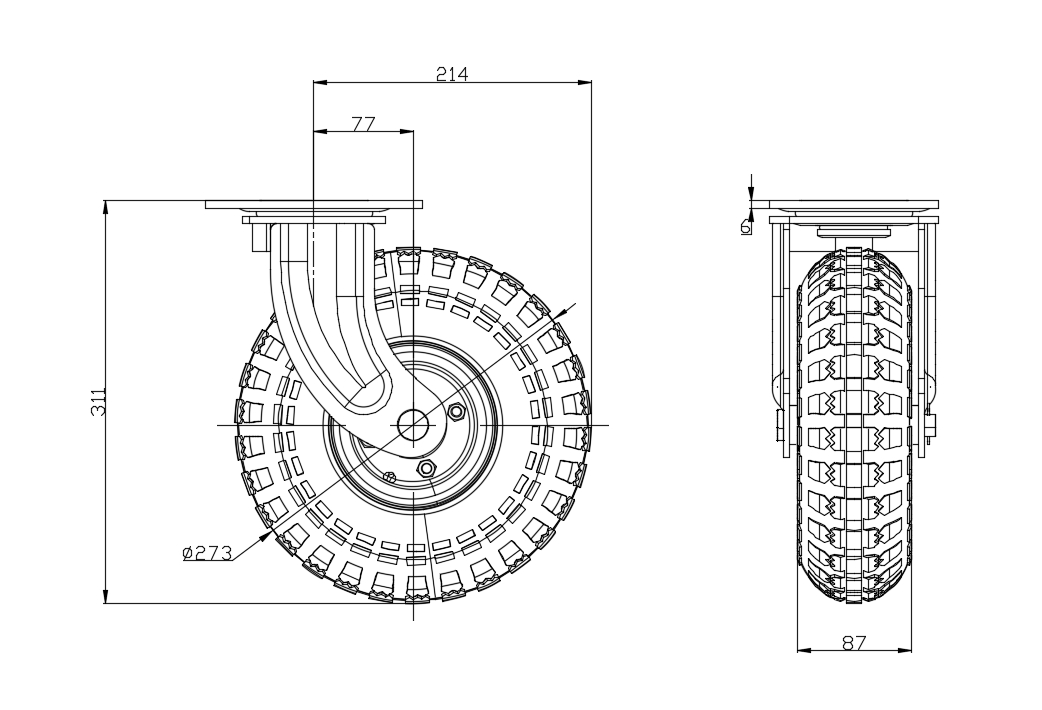

　　Wheel Diameter 273mm　

　　Wheel Width 87mm　
　　Wheel Bearing Wheels With Ball Bearings

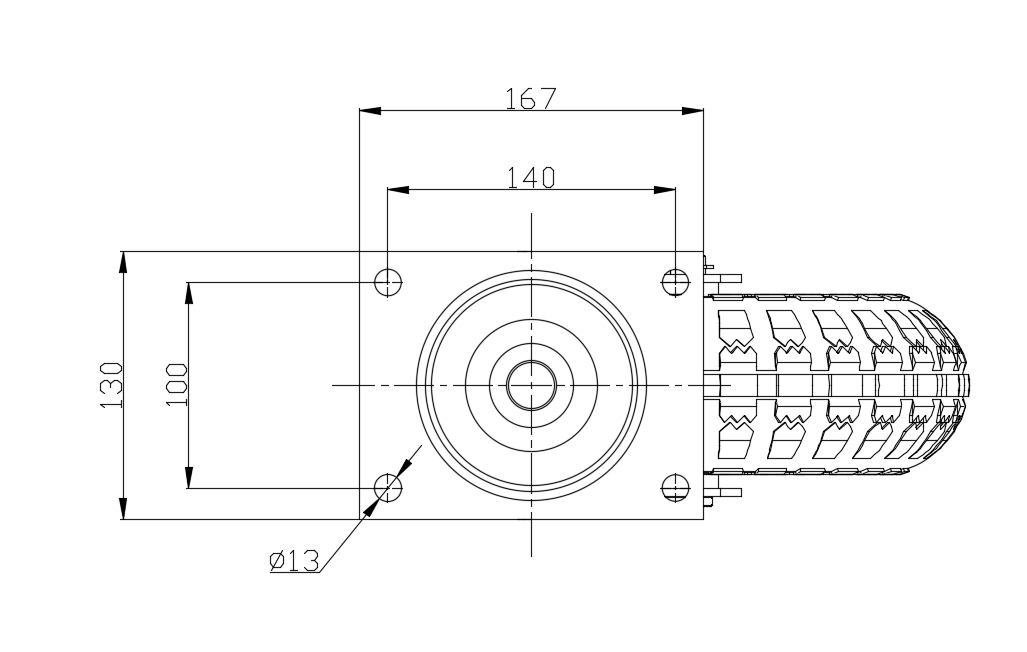

　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140 x 100mm　
　　Plate Hole 13mm　
　　Offset 77mm　
　　Swivel Interference 428mm　
　　Overall Height 311mm　
　　Swivel Radius 214mm　
　　Hardness Of Tread 75±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 350kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.72kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

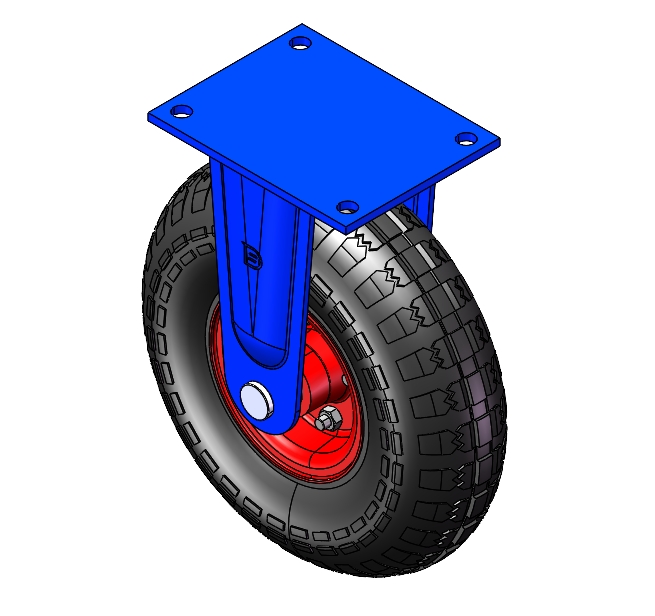

1117 Blue Fork Pneumatic Caster Series
Wind wheel inflatable wheel(Black)wheel diameter × wheel width 273 x 87mm
YJ-11171000011051
273 mm 200 Kgs 311 mm
Rigid Caster, Welded Caster Fork
Blue-painted finish, Top Plate (6T) Mounting Type system
Cast Iron wheel center, High-Quality Resilient Rubber Wheel Tread; Wheel Tread provides Compression Resistance resistance and wear resistance
Black, Bearing—Ball Bearings.

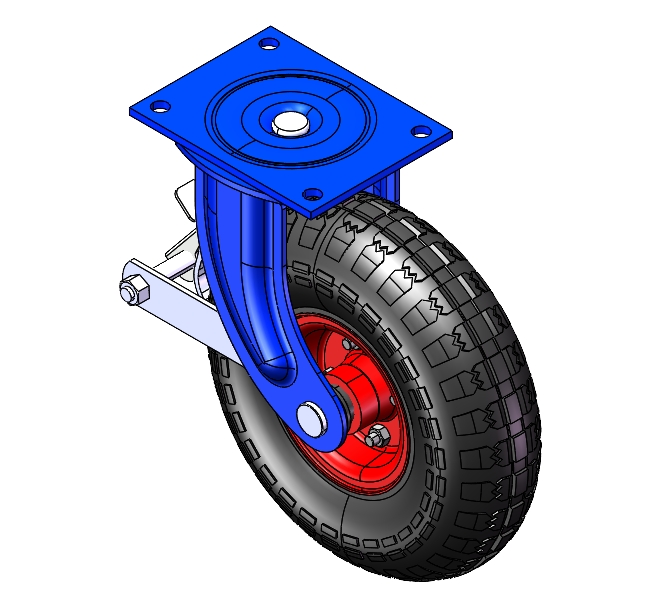

1117 Blue Fork Pneumatic Caster Series
