1117 Blue Fork Pneumatic Caster Series
　　Solid Rubber (Black) Wheel Diameter × Wheel Width 250 x 74mm
　　
　　　　　 　　　
　　YJ-11171000021031 　　　
Rigid Caster, Welded Caster Fork
Blue-painted finish, Top Plate (6T) Mounting Type system
Cast Iron wheel center, High-Quality Resilient Rubber Wheel Tread; Wheel Tread provides Compression Resistance resistance and wear resistance
Black, Bearing—Ball Bearings.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core

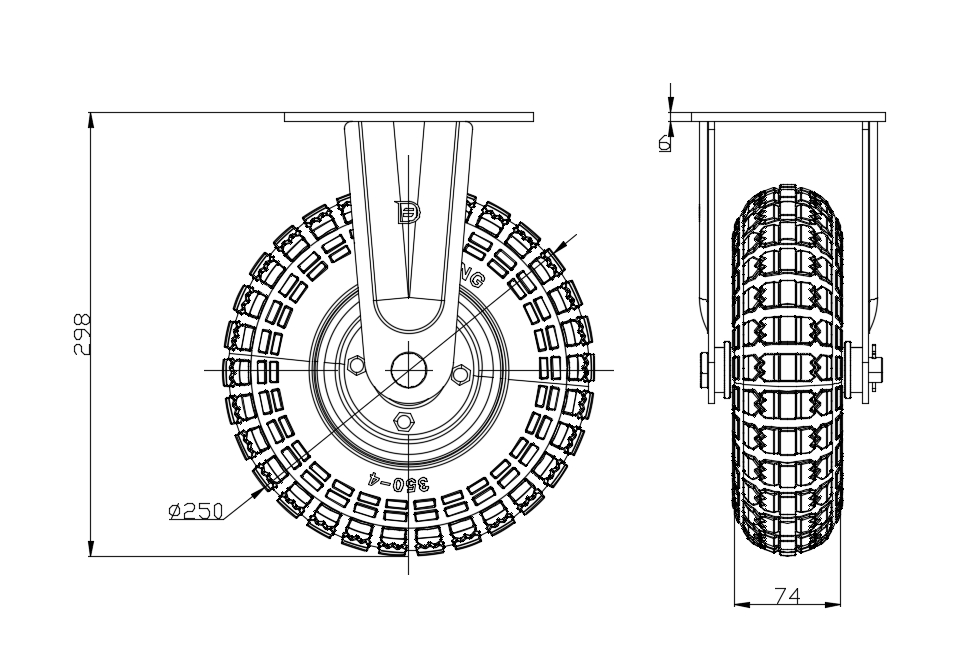

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 250mm　

　　Wheel Width 74mm　
　　Wheel Bearing Wheels With Ball Bearings

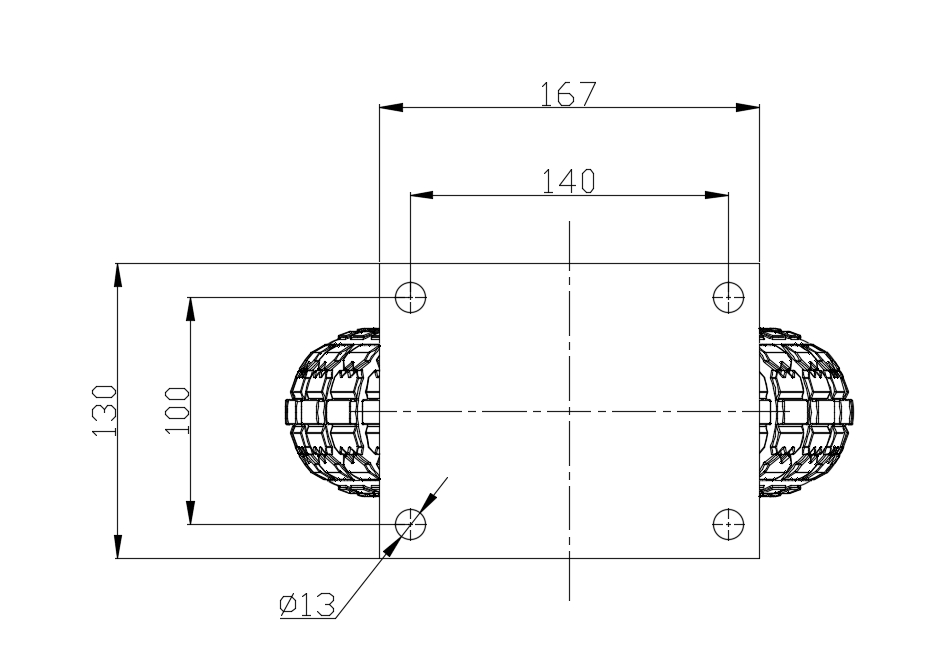

　　Plate Size 167 x 130mm　
　　Bolt Hole Spacing 140 x 100mm　
　　Plate Hole 13mm　
　　Overall Height 298mm　
　　Hardness Of Tread 75±5° Shore A　
　　Load Capacity (Dynamic) 180kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 270kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Rigid Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 6.75kgs　
　　Standard ISO22883
　　
　　
