Zine-Plated, Mounting Type - Top Plate.
Polypropylene Wheel Center and Wheel Tread.
Black, Plain Bearings.
Wheel Center: PP polypropylene

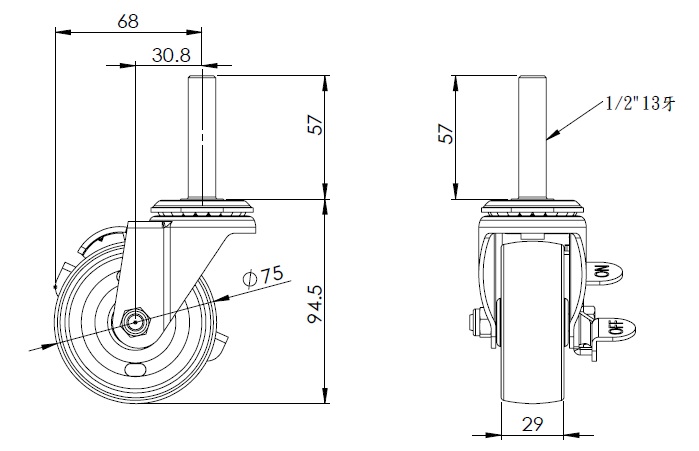

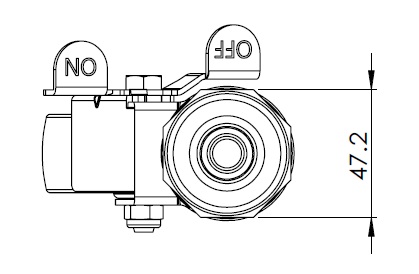

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
75mm
Wheel Width
29mm
Wheel Bearing
Wheel With Plain Bearing
Threaded Stem
1/2＂-13
Threaded Length
57mmmm
Offset
30.8mm
Swivel Interference
136mm
Overall Height
94.5mm
Swivel Radius
68mm
Hardness Of Tread
65±5° Shore D
Load Capacity (Dynamic)
70kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ○ ○
Floor Surface Preservation ● ● ● ○ ○
Load Capacity (Static)
105kgs
Temperature
-10°C to +60°C
Fork Type
Swivel Caster With Side Brake
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.40kgs
Standard
ISO22883
