    Product Data Sheet
1121 Double Raceway, Light Duty Caster Series
　　Rubber Wheel Diameter × Wheel Width 100 x 24mm
　　EAN
　　　　　 　　　
　　YJ-11210400064713 　　　

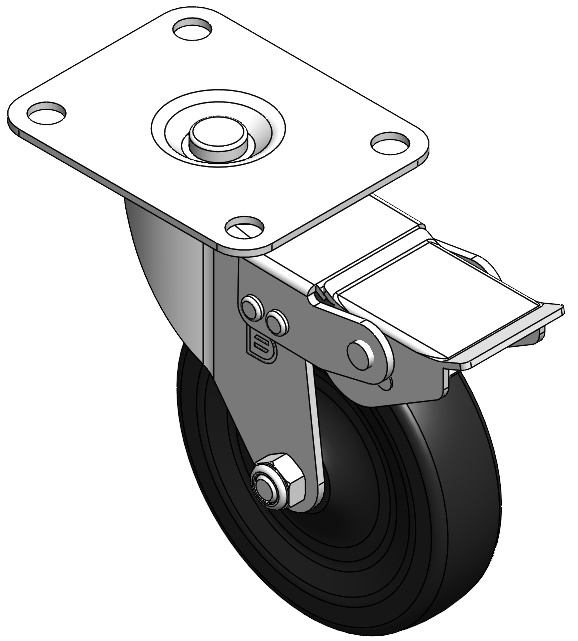

Casters with Total Brakes and With locking system. Top Plate Riveted and Stamping 72 x 53.5mm (2-7/8" x 2-1/8") Bolt Hole Spacing.
Zine-Plated, Mounting Type - Top Plate.
Reinforced Polypropylene Wheel Center with High-Quality Resilient Rubber Wheel Tread.
Bearing - Plain Bearing
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: Thermoplastic (PA6)

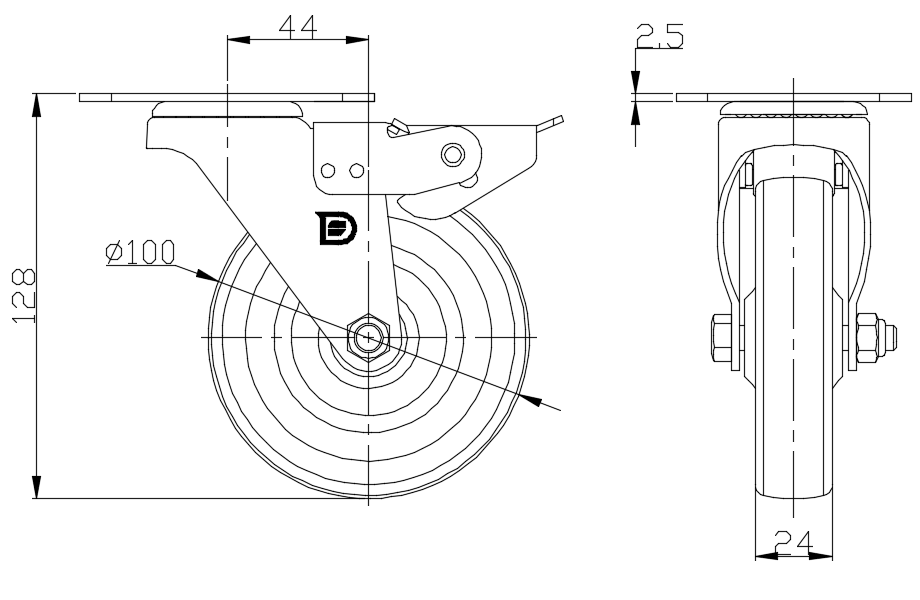

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 24mm　
　　Wheel Bearing Wheel With Plain Bearing

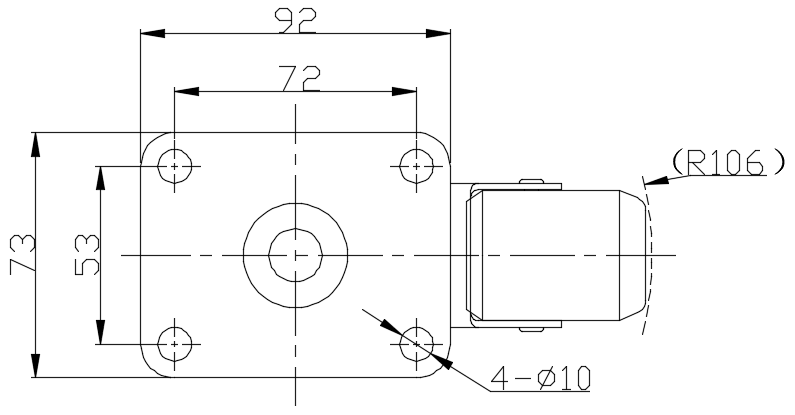

　　Plate Size 92 x 73mm　
　　Bolt Hole Spacing 72 x 53mm　
　　Plate Hole 10mm　
　　Offset 44mm　
　　Swivel Interference 212mm　
　　Overall Height 128mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 95±5° Shore A　
　　Load Capacity (Dynamic) 80kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 120kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Total Brake　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 0.69kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品

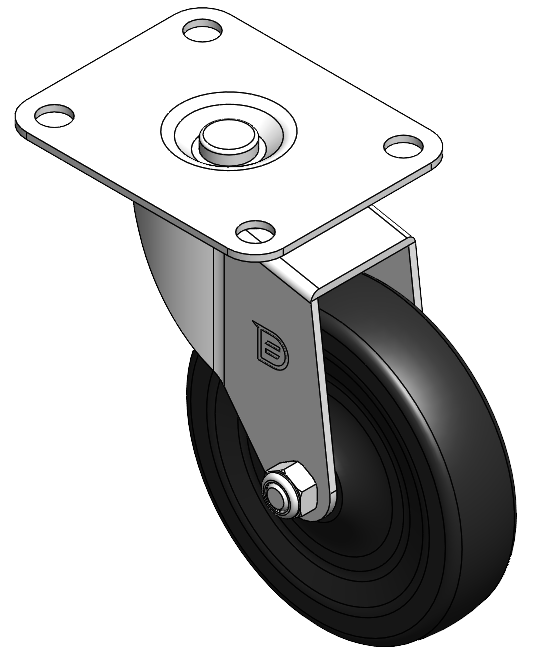

1121 Double Raceway, Light Duty Caster Series
