YJ-11210200295033

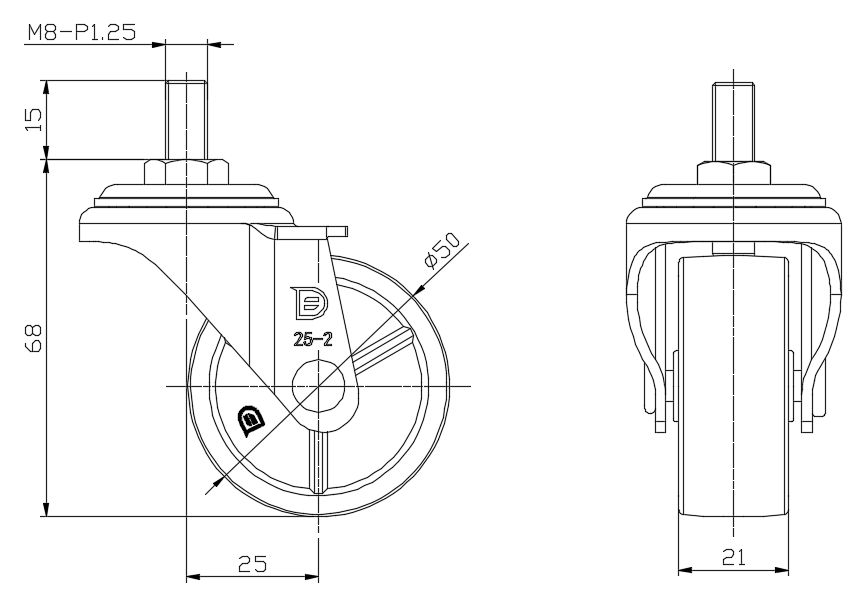

Drawings are for reference only and may differ from the product
Metric Imperial
Wheel Diameter
50mm
Wheel Width
21.5mm
Wheel Bearing
Wheel With Plain Bearing
Plate Size
70 x 42mm
Bolt Hole Spacing
56x28mm
Plate Hole
Overall Height
92mm
Hardness Of Tread
65±5° Shore D
Load Capacity (Dynamic)
50kgs
Rolling Resistance ● ● ● ● ●
Operating Noise ● ● ● ○ ○
Floor Surface Preservation ● ● ● ○ ○
Load Capacity (Static)
75kgs
Temperature
-10°C to +60°C
Fork Type
Rigid Caster
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
0.23kgs
Standard
ISO22883
