    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　SX Rubber Wheel Diameter × Wheel Width 100 x 35mm
　　EAN
　　　　　 　　　
　　YJ-11240400032033 　　　

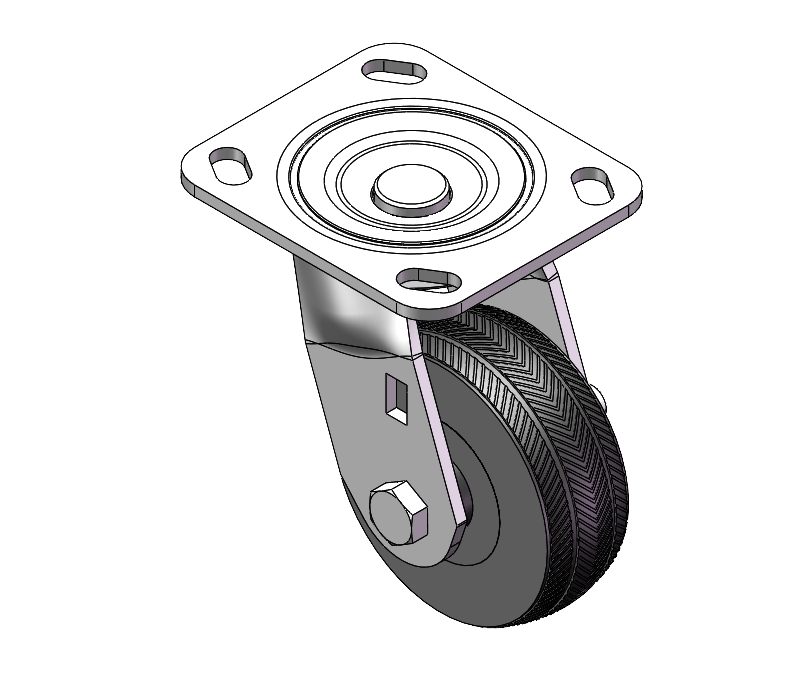

Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Iron black, Bearing with Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

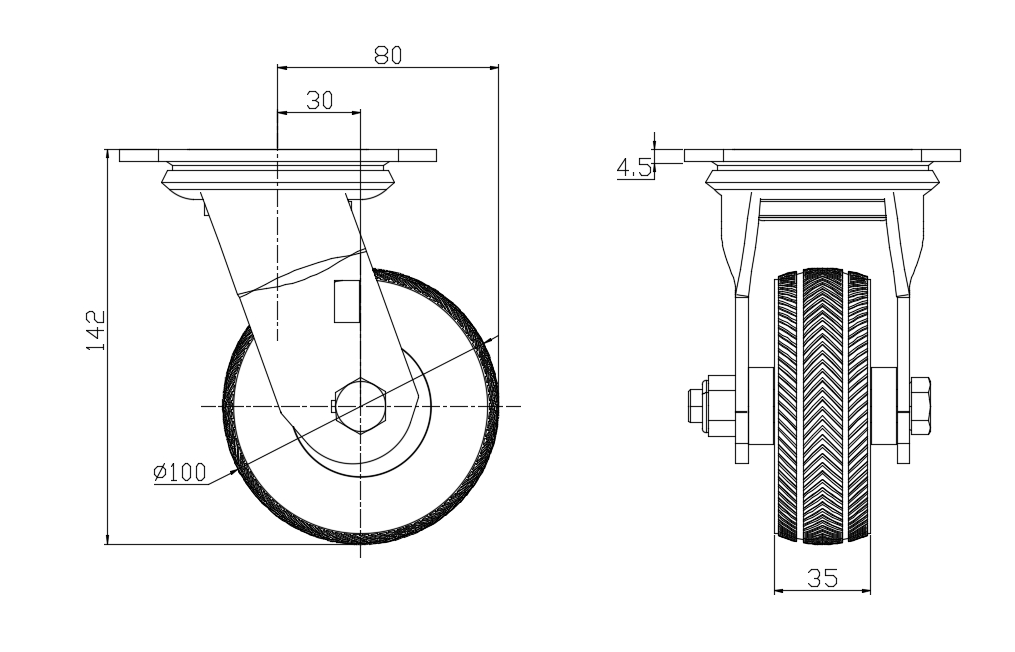

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 35mm　
　　Wheel Bearing Wheels With Ball Bearings

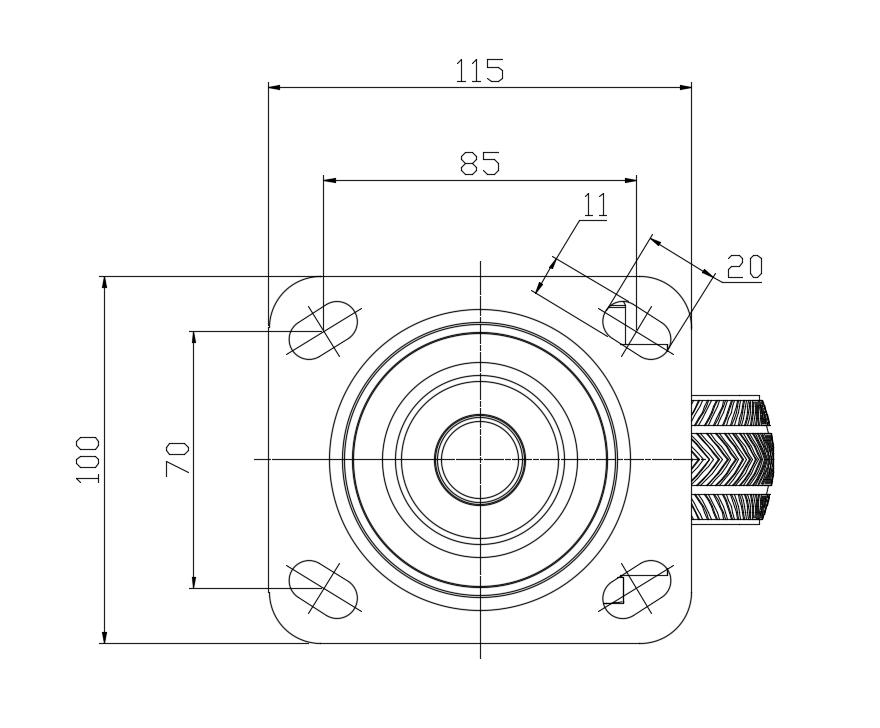

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 142mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.75kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 100 x 35mm
YJ-11240400031013
100 mm 150 Kgs 142 mm

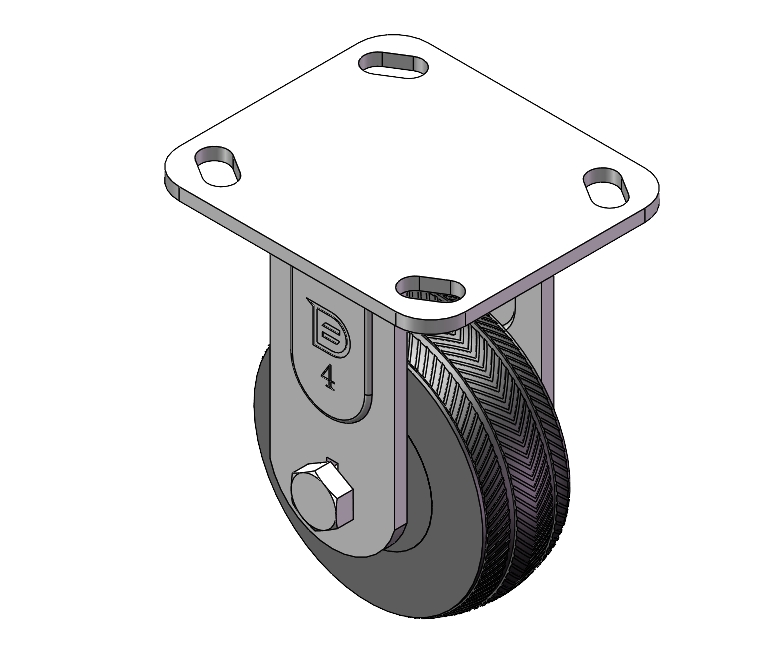

Rigid Caster, Welded Caster Fork 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High-Quality Resilient Rubber tread Iron black, Bearing with Ball Bearing
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 100 x 35mm
YJ-11240400034023
100 mm 150 Kgs 142 mm

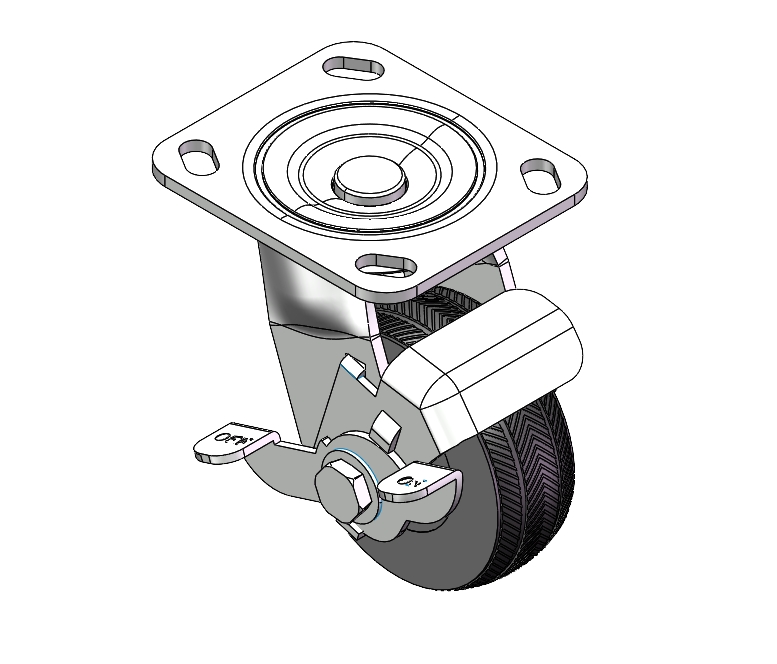

Side brake Caster with Locking system. Top Plate Riveted and Stamping - D-shaped. Hole Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High-Quality Resilient Rubber tread Iron black, Bearing - Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 100 x 35mm
YJ-11240400034013
100 mm 150 Kgs 142 mm

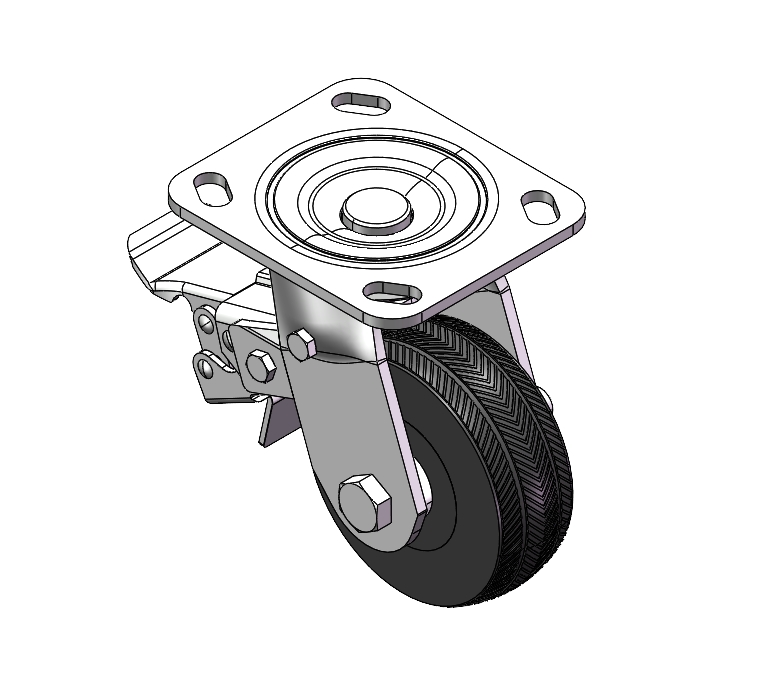

Center Brake Locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Iron black, Bearing with Ball Bearing.
