    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　QPU (Brown flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 　　　
　　YJ-11240400532023 　　　

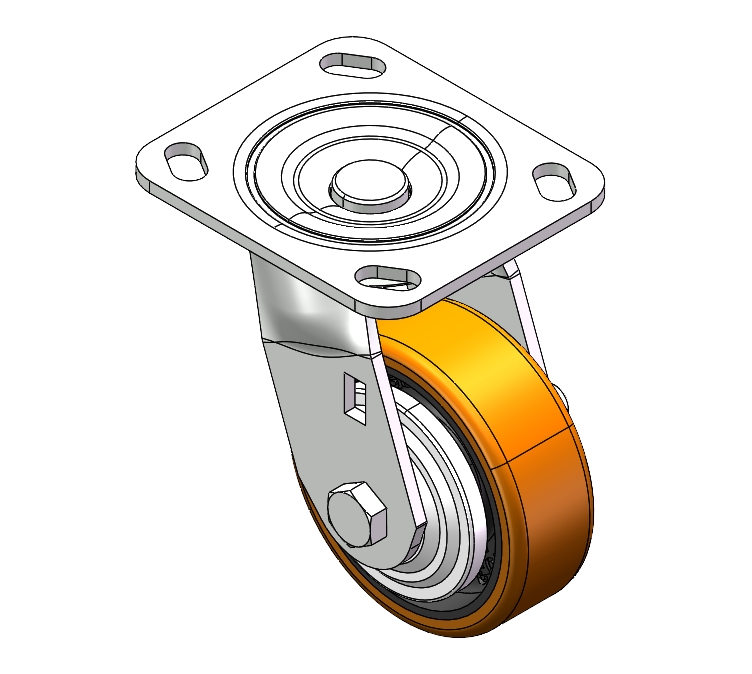

Swivel Caster with Riveted Fork and Stamping Fork - 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Fork-mounted (4.5T) Mounting Type system Cast Iron Wheel Center, High Quality Polyurethane tread Iron brown, Bearing - Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

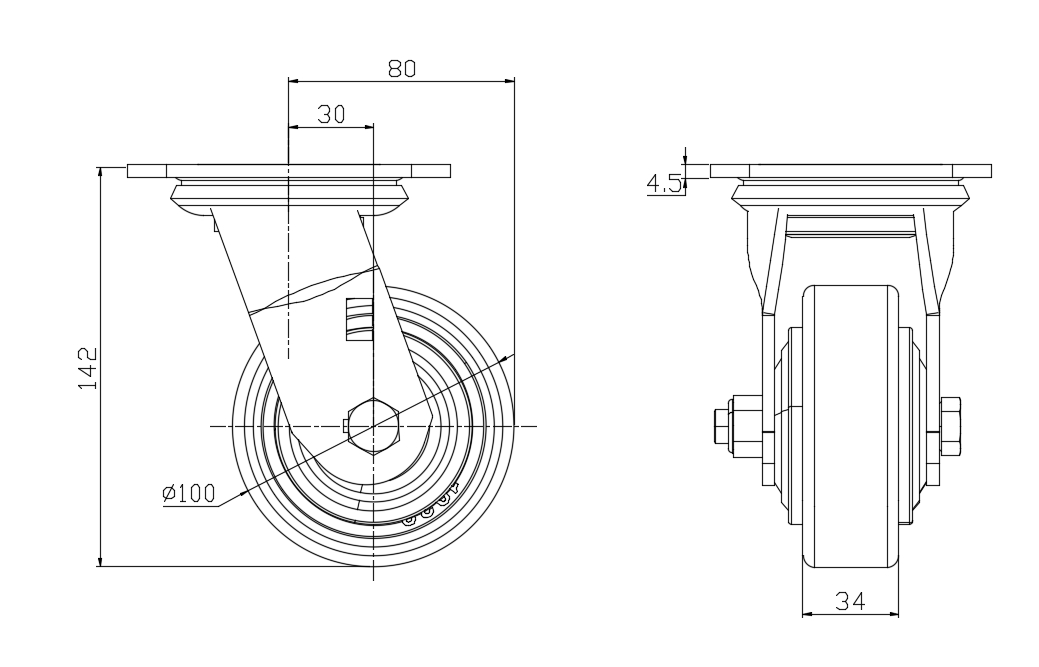

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

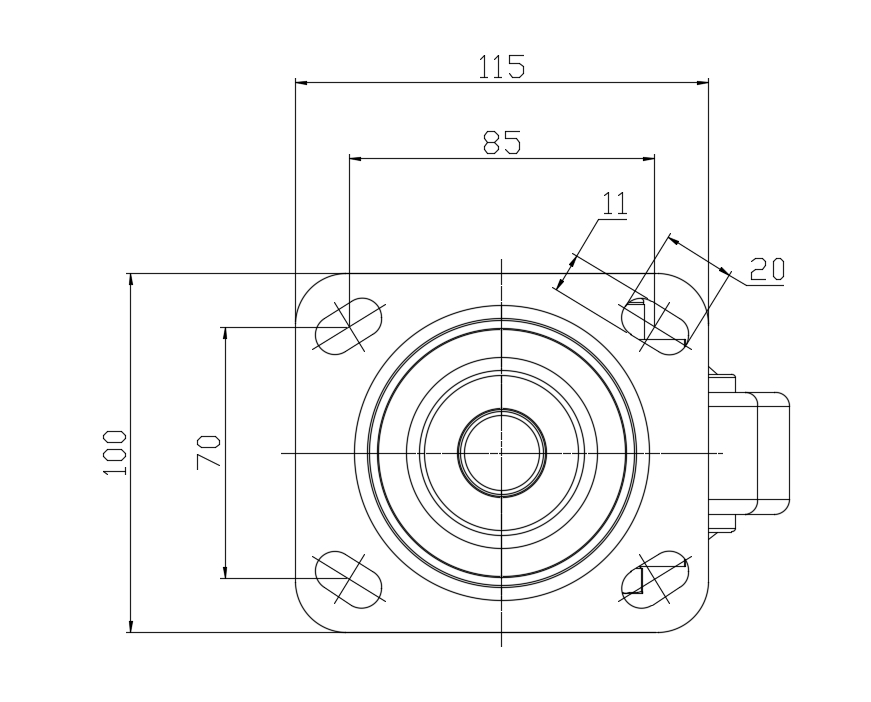

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 142mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.94kgs　
　　Standard ISO22883
　　
　　
