    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　QPU (Brown flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 　　　
　　YJ-11240400534023 　　　

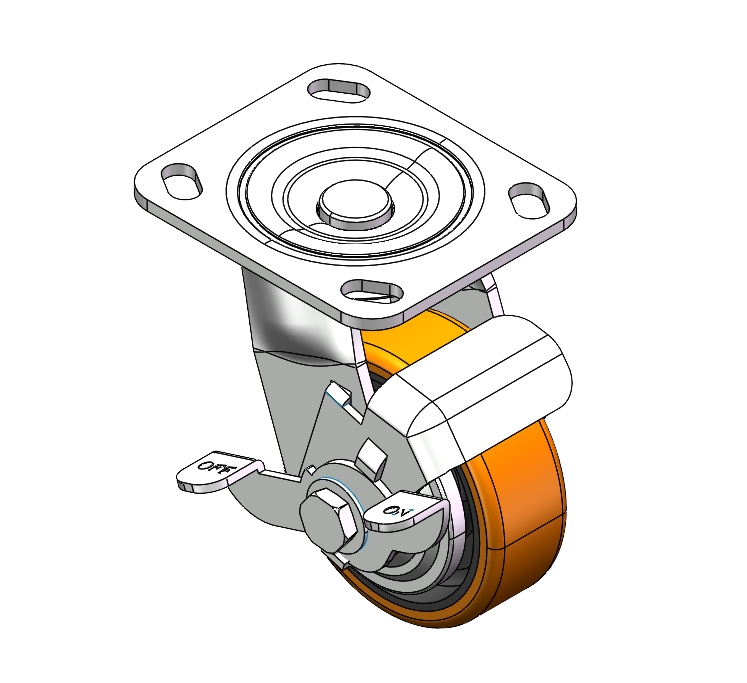

Side brake Caster with Locking system. Top Plate Riveted and Stamping D-shaped footplate. Hole Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Iron brown, Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: iron core

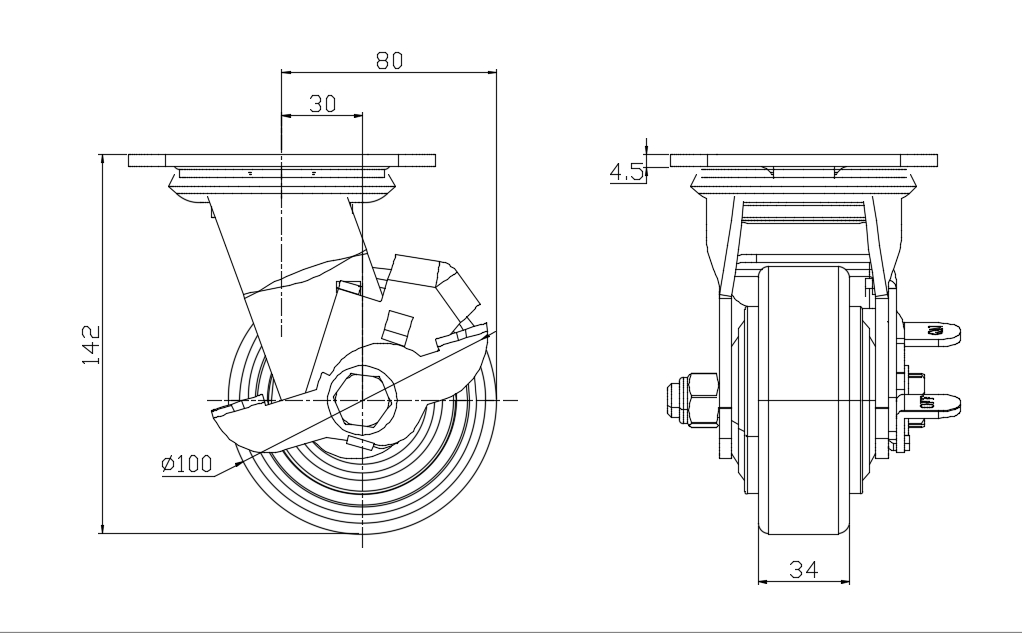

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings

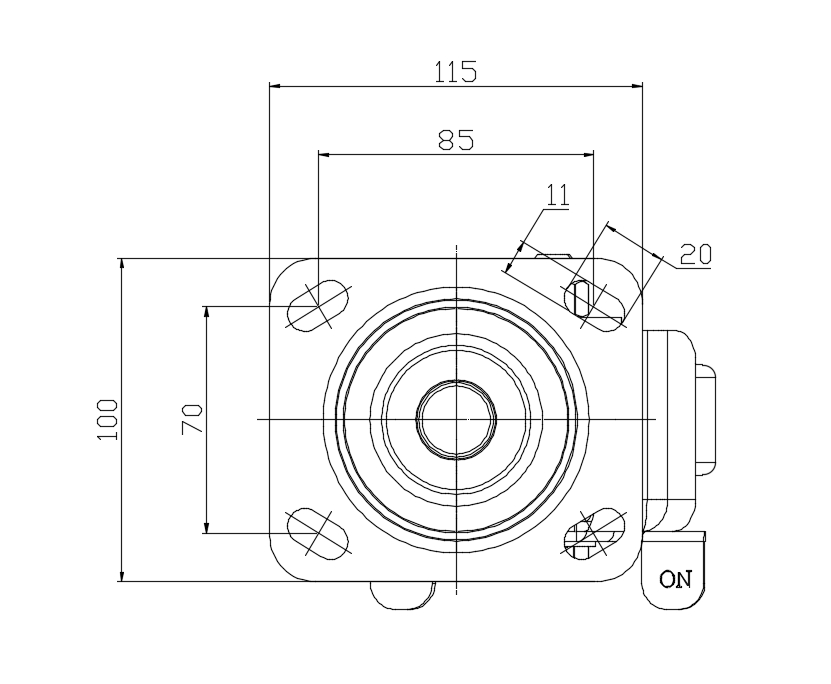

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 142mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 92±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.15kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
QPU (Brown flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11240400531013
100 mm 300 Kgs 142 mm

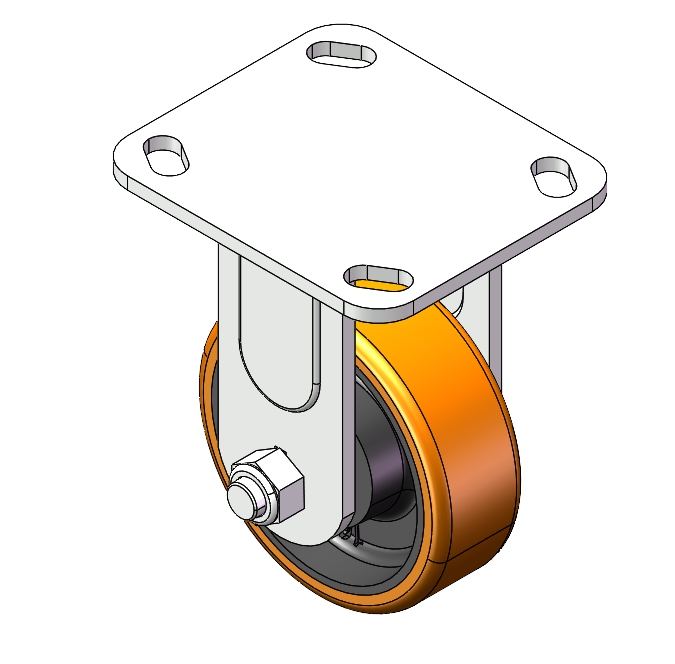

Rigid Caster, Welded Caster Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Iron brown, Bearing—Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
QPU (Brown flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11240400532013
100 mm 300 Kgs 142 mm

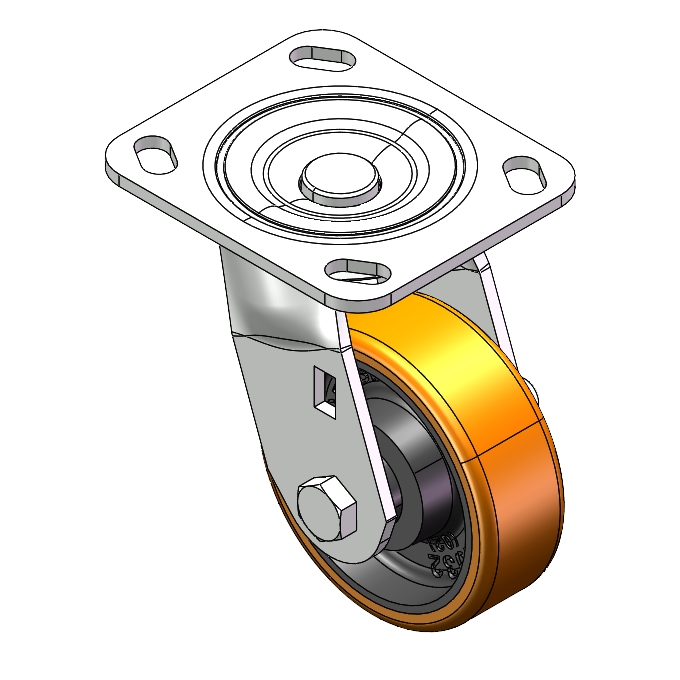

Swivel Caster, Top Plate Riveted and Stamping with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type. Zine-Plated, Top Plate (4.5T) Mounting Type mechanism. Cast Iron Wheel Center, High Quality Polyurethane tread. Iron brown, Bearing—Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
QPU (Brown flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11240400534013
100 mm 300 Kgs 142 mm

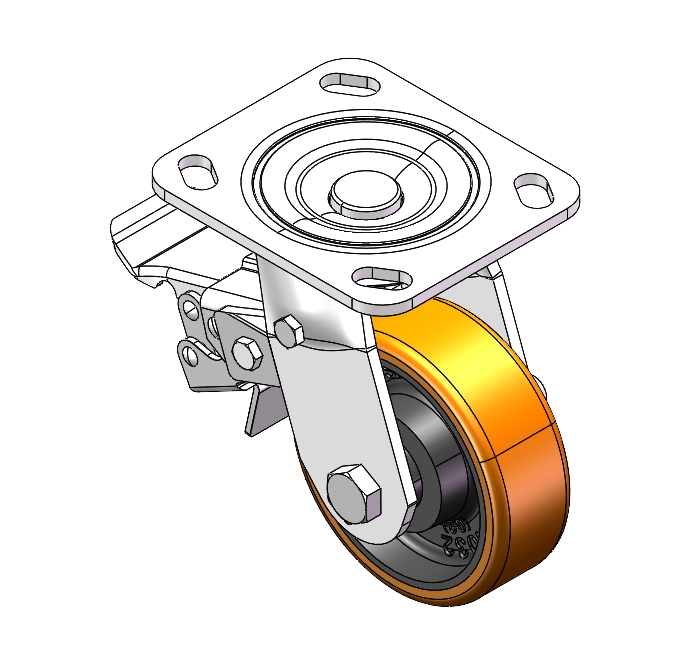

Center Brake Locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Iron brown, Bearing with Ball Bearing.
