    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　PU (red flat wheel) Wheel Diameter × Wheel Width 100 × 34 mm
　　EAN
　　　　　 　　　
　　YJ-11240400334033 　　　

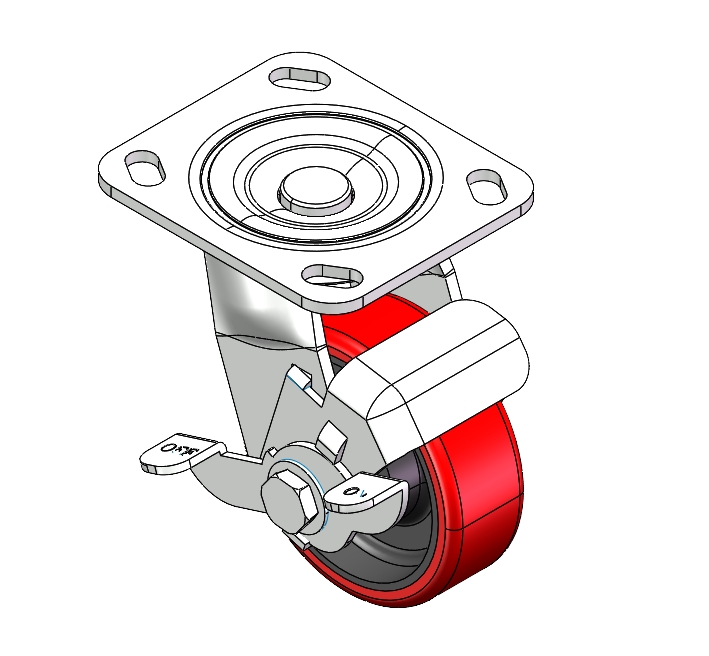

Side brake Caster with Locking system. Top Plate Riveted and Stamping - D-shaped. Hole Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Red Cast Iron finish, Bearing - Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

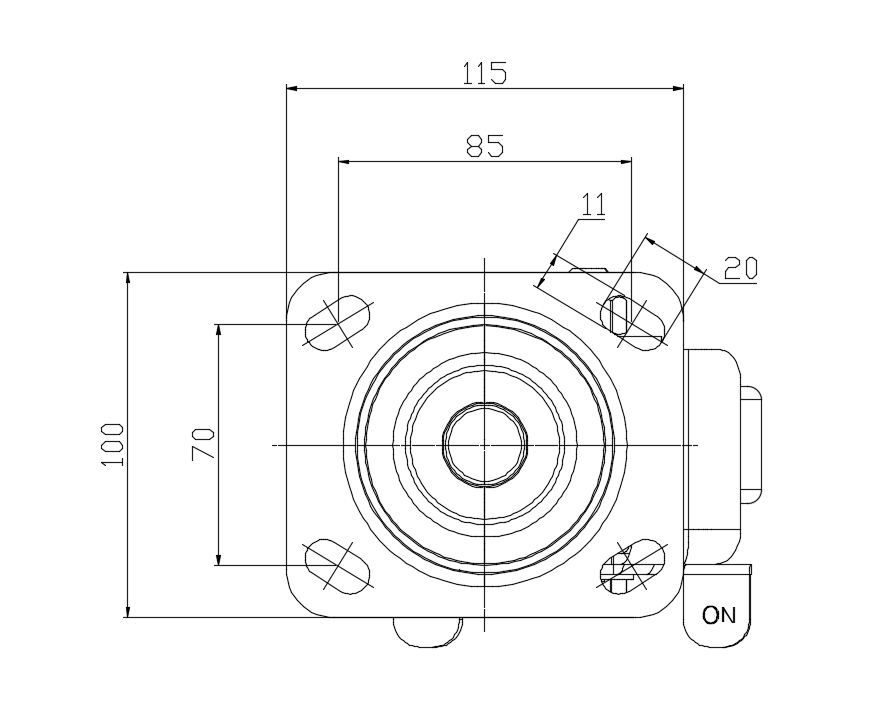

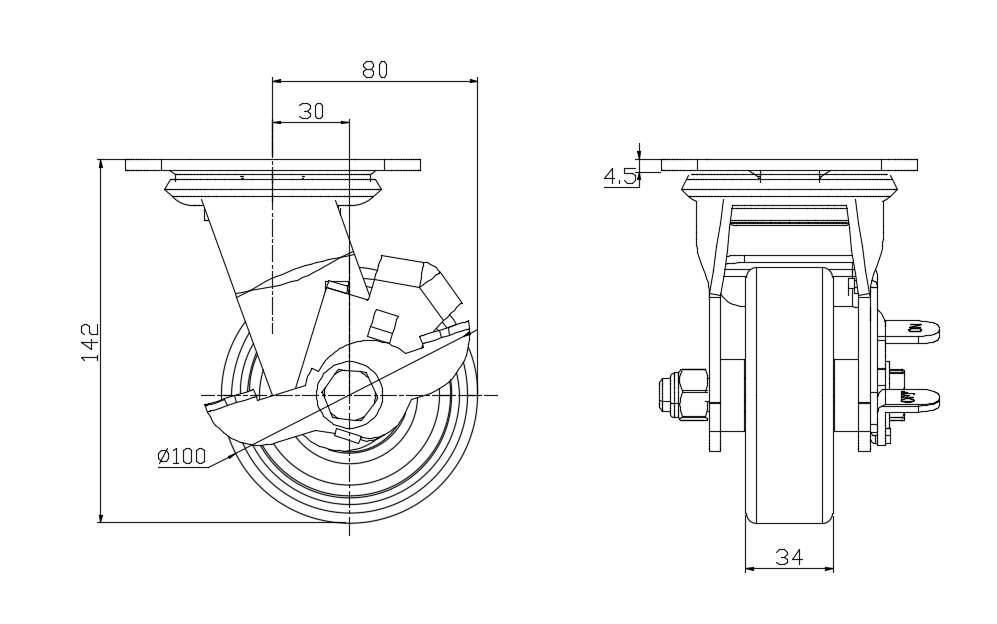

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 142mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Side Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.10kgs　
　　Standard ISO22883
　　
　　
