    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　Cast Iron Wheel Diameter × Wheel Width 93 x 28mm
　　EAN
　　　　　 　　　
　　YJ-11240400142013 　　　
Swivel Caster, Top Plate Riveted with Stamping bracket – 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4.5T) Mounting Type system
Cast Iron Wheel Center and Wheel Tread
Black, Bearing – Ball Bearing.
　　Wheel tread: cast iron
　　Wheel Center: cast iron

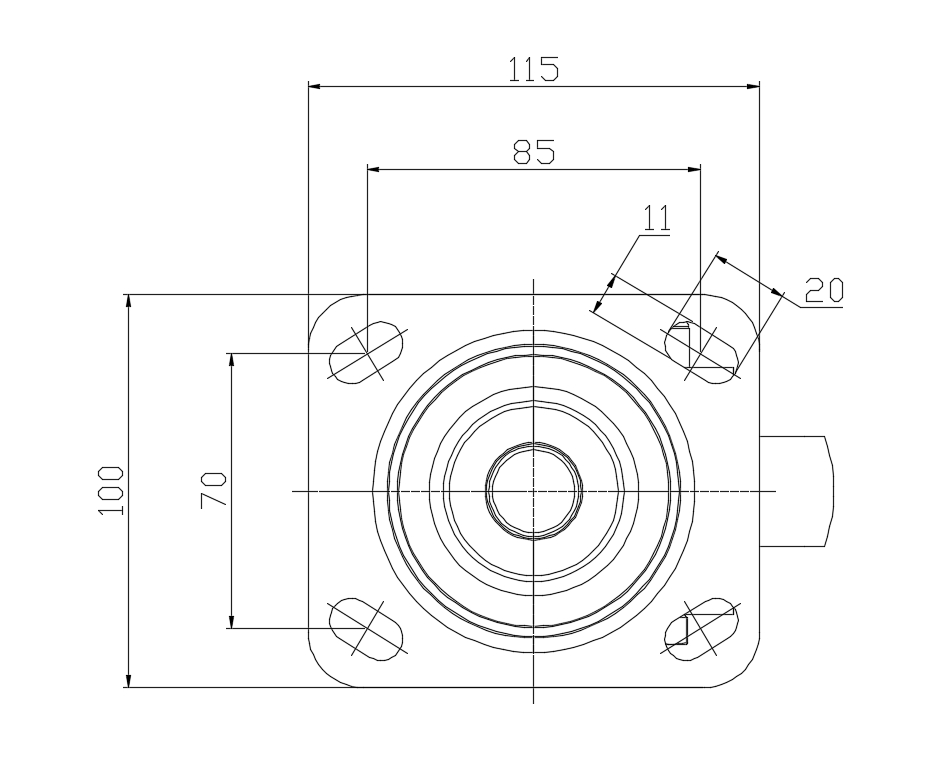

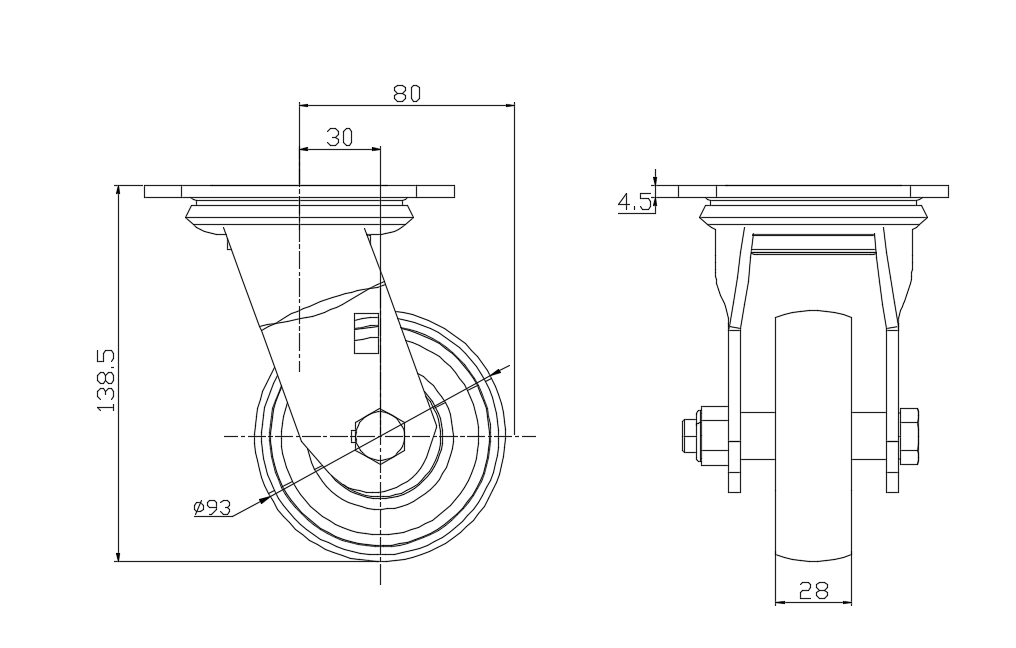

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 93mm　

　　Wheel Width 28mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 138.5mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread ° Shore A　
　　Load Capacity (Dynamic) 175kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ○ ○ ○ ○

　　Floor Surface Preservation  ● ○ ○ ○ ○
　　Load Capacity (Static) 262.5kgs　
　　Temperature -20°C to +250°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.76kgs　
　　Standard ISO22883
　　
　　
