    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　CPD (White) Wheel Diameter × Wheel Width 100 x 32mm
　　EAN
　　　　　 　　　
　　YJ-11240400444033 　　　

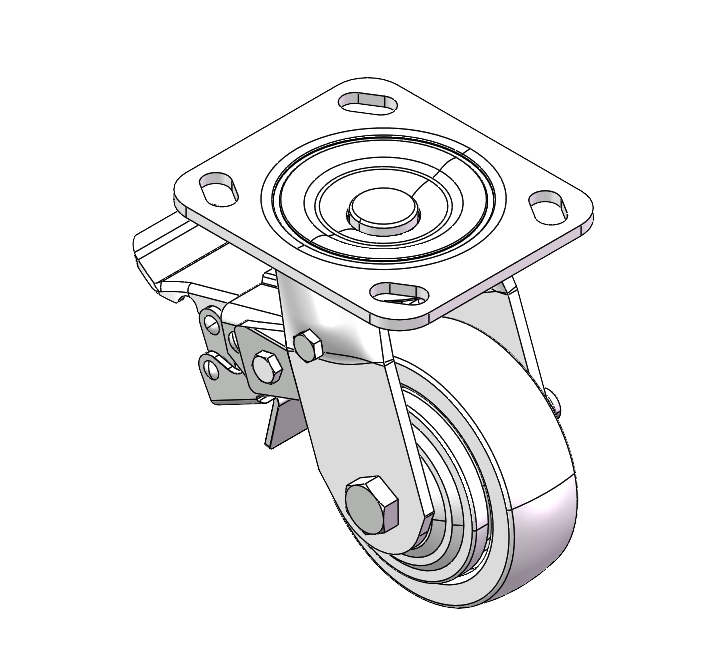

Casters with a center brake and With locking system. Top Plate Riveted and Stamping 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing.
Zine-Plated, Top Plate (4.5T) Mounting Type system.
Reinforced Polypropylene Wheel Center and Wheel Tread.
White, Bearing—Ball Bearings.
　　Wheel tread: Thermoplastic (PA6)
　　Wheel Center: Thermoplastic (PA6)

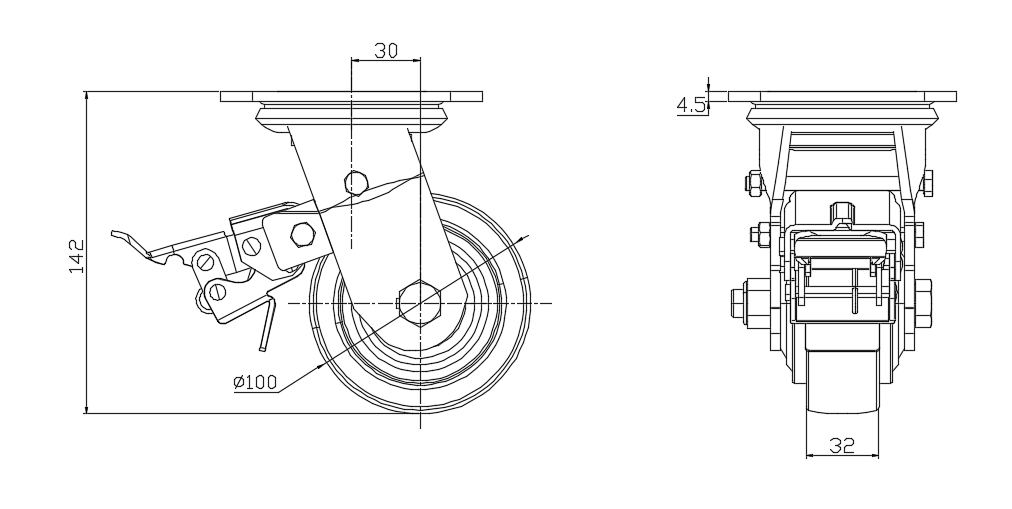

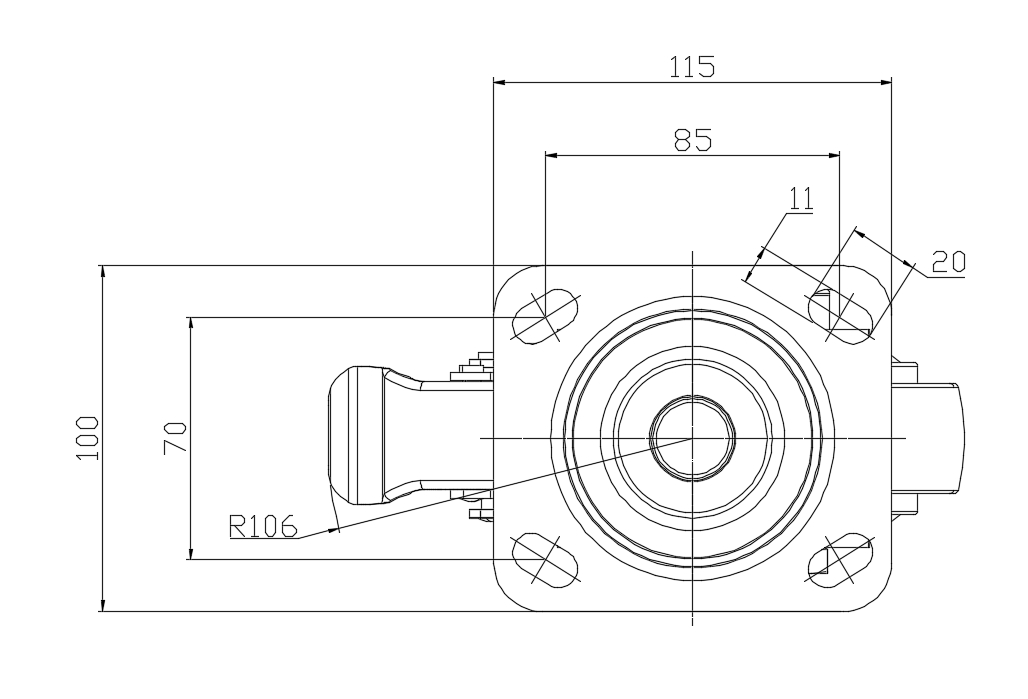

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 32mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 212mm　
　　Overall Height 142mm　
　　Swivel Radius 106mm　
　　Hardness Of Tread 72±5° Shore D　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ○ ○

　　Floor Surface Preservation  ● ● ● ○ ○
　　Load Capacity (Static) 225kgs　
　　Temperature -12°C to +60°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.84kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
CPD (White) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11240400441033
100 mm 150 Kgs 142 mm

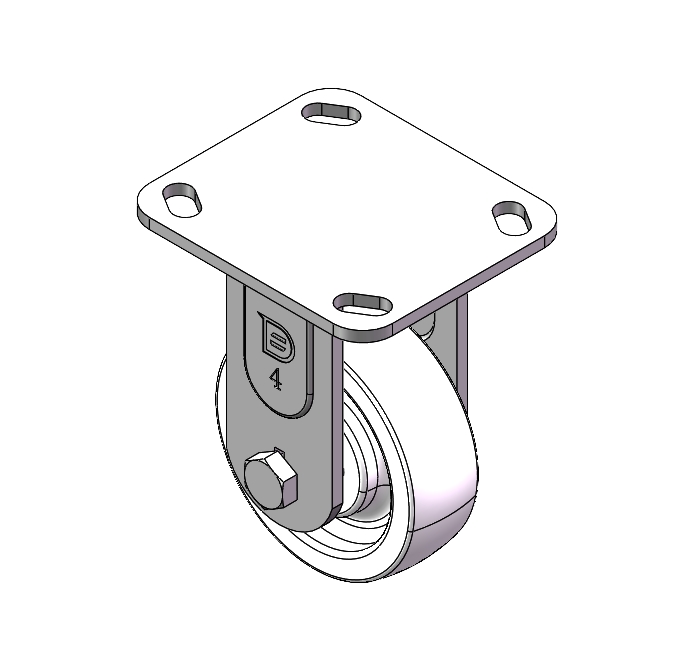

Rigid Caster, Welded Caster Fork 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4.5T) Mounting Type system
Reinforced Polypropylene Wheel Center and Wheel Tread
White, Bearing—Ball Bearings.
1124 1-1/2" Wide General Purposes Caster Series
CPD (White) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11240400444053
100 mm 150 Kgs 142 mm

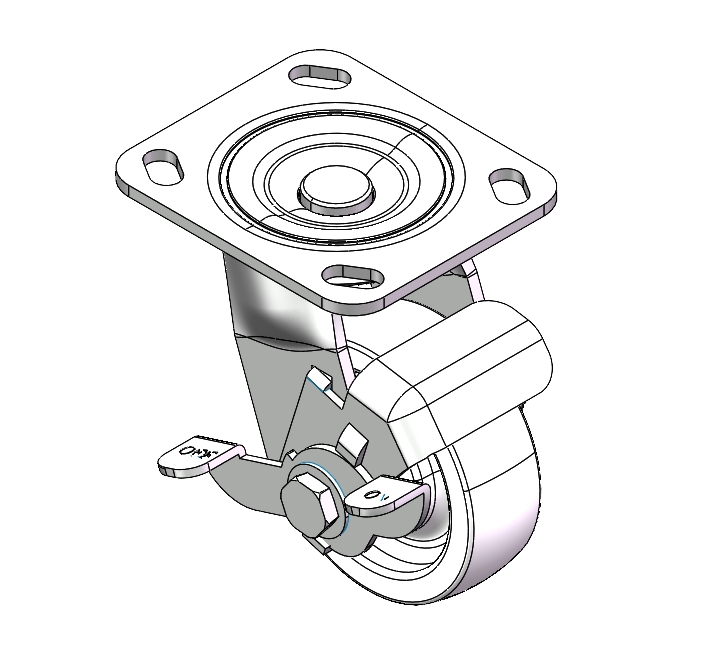

Swivel Caster, Top Plate Riveted with Fork – 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4.5T) Mounting Type mechanism
Reinforced Polypropylene Wheel Center and Wheel Tread
White, Bearing – Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
CPD (White) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11240400441023
100 mm 150 Kgs 142 mm

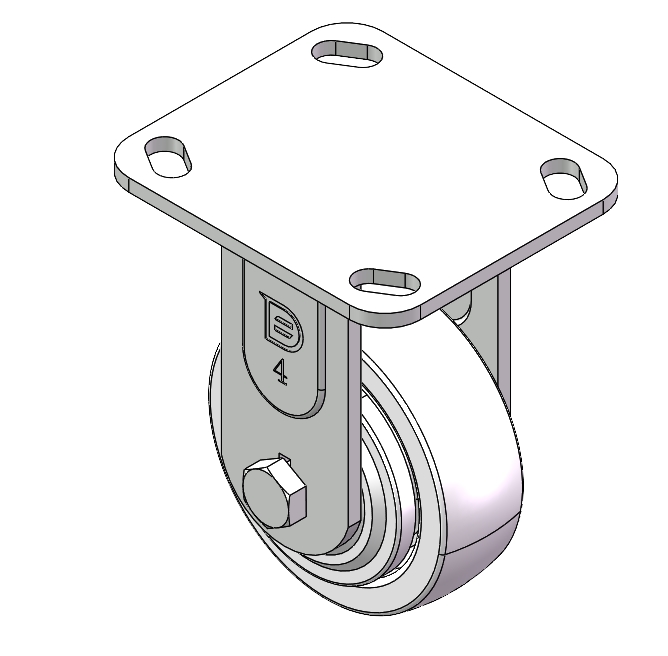

Rigid Caster, Welded Caster Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutouts
Zine-Plated, Top Plate (4.5T) Mounting Type system
Reinforced Polypropylene and Wheel Tread
White, Ball Bearings.
1124 1-1/2" Wide General Purposes Caster Series
CPD (White) Wheel Diameter × Wheel Width 100 x 32mm
YJ-11240400442023
100 mm 150 Kgs 142 mm

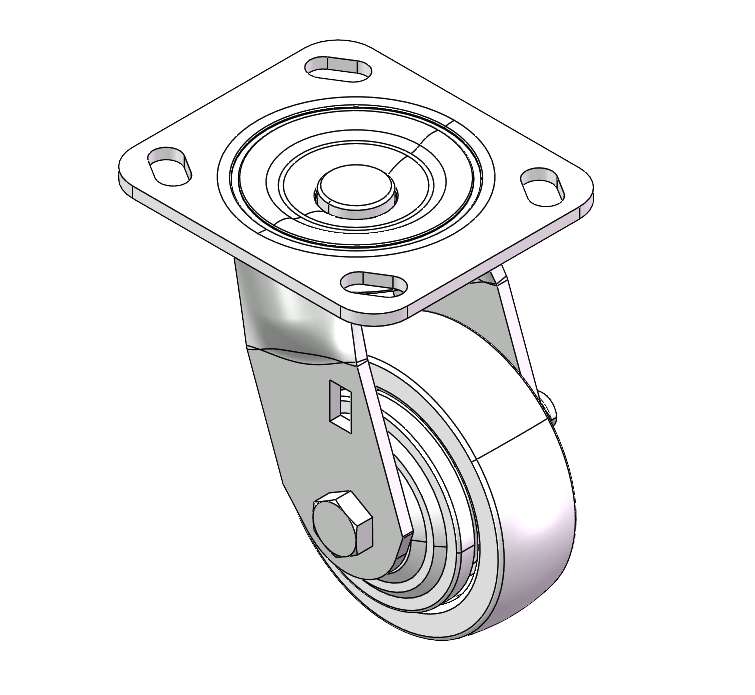

Swivel Caster, Top Plate Riveted and Stamping with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type.
