    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　QPU (Grey flat) Wheel Diameter × Wheel Width 100 x 34mm
　　EAN
　　　　　 　　　
　　YJ-11240400532033 　　　

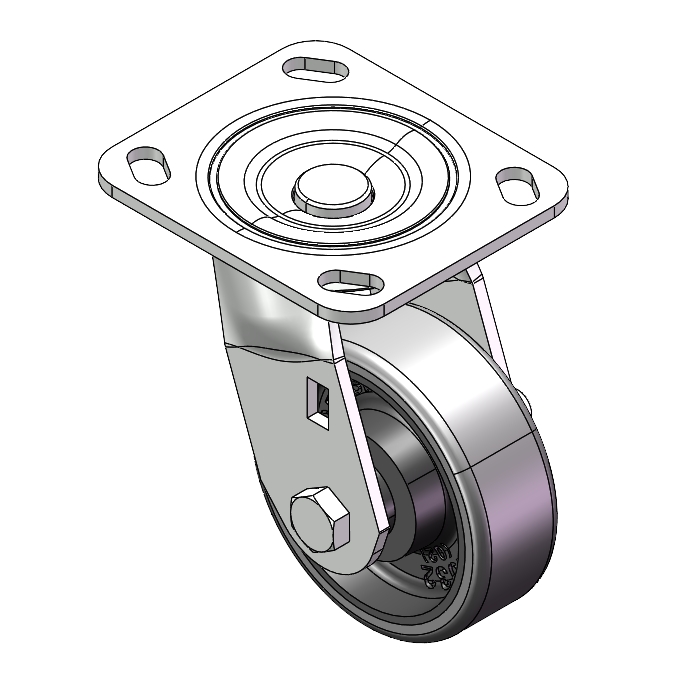

Swivel Caster, Top Plate with Riveted Stamping bracket and D-shaped hole. Zine-Plated, Top Plate (4.5T) Mounting Type mechanism. Cast Iron Wheel Center with High Quality Polyurethane tread. Iron brown-gray finish, Bearing with Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 100mm　

　　Wheel Width 34mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 30mm　
　　Swivel Interference 160mm　
　　Overall Height 142mm　
　　Swivel Radius 80mm　
　　Hardness Of Tread 77±5° Shore A　
　　Load Capacity (Dynamic) 300kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 450kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.88kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2026 DershengInternational www.dersheng.com
Related　　Products　　
1124 1-1/2" Wide General Purposes Caster Series
QPU (Grey flat) Wheel Diameter × Wheel Width 100 x 34mm
YJ-11240400531023
100 mm Kgs 142 mm

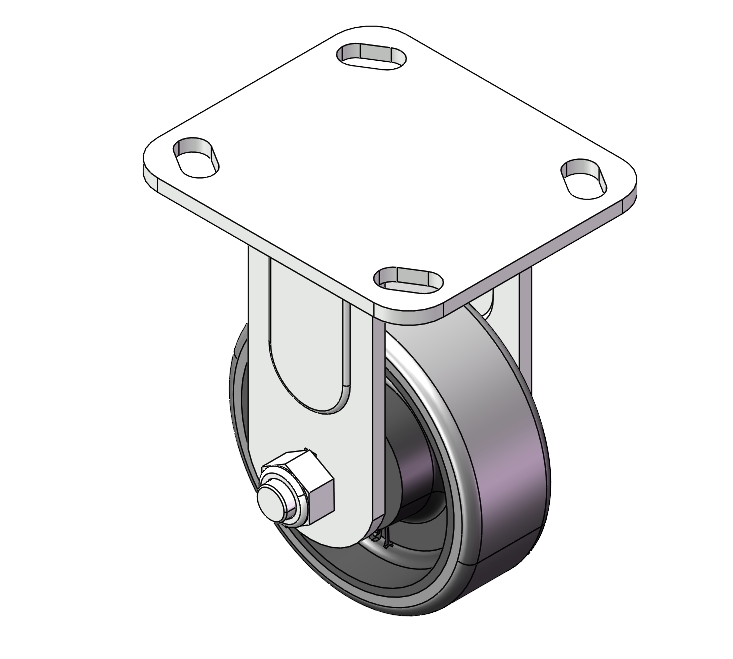

Rigid Caster, Welded Caster Fork 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Iron brown-gray finish, Bearing with Ball Bearing.
