Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
  AQPU (blue round) Wheel Diameter × Wheel Width 100 x 40mm
  EAN

  YJ-11240400602013
Swivel Caster, Top Plate Riveted with Fork – 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing
Zine-Plated, Top Plate (4.5T) Mounting Type system
Aluminum core, High Quality Polyurethane Wheel Tread
Blue color, Bearing – Ball Bearing.
  Wheel tread: Made of high-quality polyurethane
  Wheel Center: aluminum core

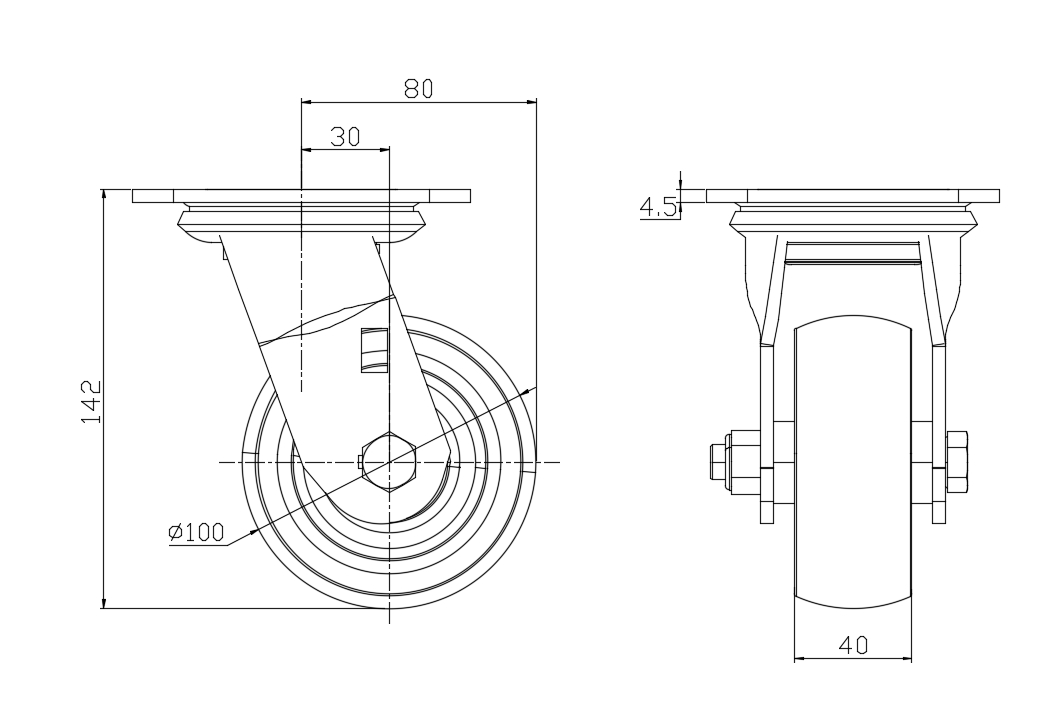

    Drawings are for reference only and may differ from the product




      Metric Imperial
  Wheel Diameter 100mm

  Wheel Width 40mm
  Wheel Bearing Wheels With Ball Bearings
  Plate Size 115 x 100mm
  Bolt Hole Spacing 85 x 70mm
  Plate Hole 20 x 11mm
  Offset 30mm
  Swivel Interference 160mm
  Overall Height 142mm
  Swivel Radius 80mm
  Hardness Of Tread 87±5° Shore A
  Load Capacity (Dynamic) 325kgs


  Rolling Resistance
        ● ● ● ● ●

  Operating Noise        ● ● ● ● ●

  Floor Surface Preservation  ● ● ● ● ●

  Load Capacity (Static) 487.5kgs
  Temperature -20°C to +70°C
  Fork Type Swivel Caster
  Stainless N/A
  Electrical Conductivity N/A
  Anti-Static N/A
  Weight 1.56kgs
  Standard ISO22883


  © Copyright 2025 DershengInternational www.dersheng.com
