    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　SX Rubber Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11240500032013 　　　

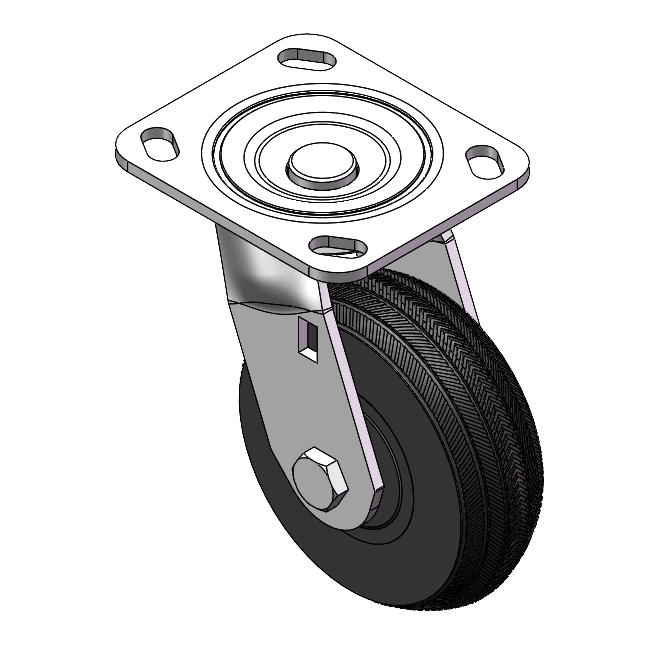

Swivel Caster with Riveted Fork and Stamping Fork with D-shaped hole. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Iron black, Bearing with Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

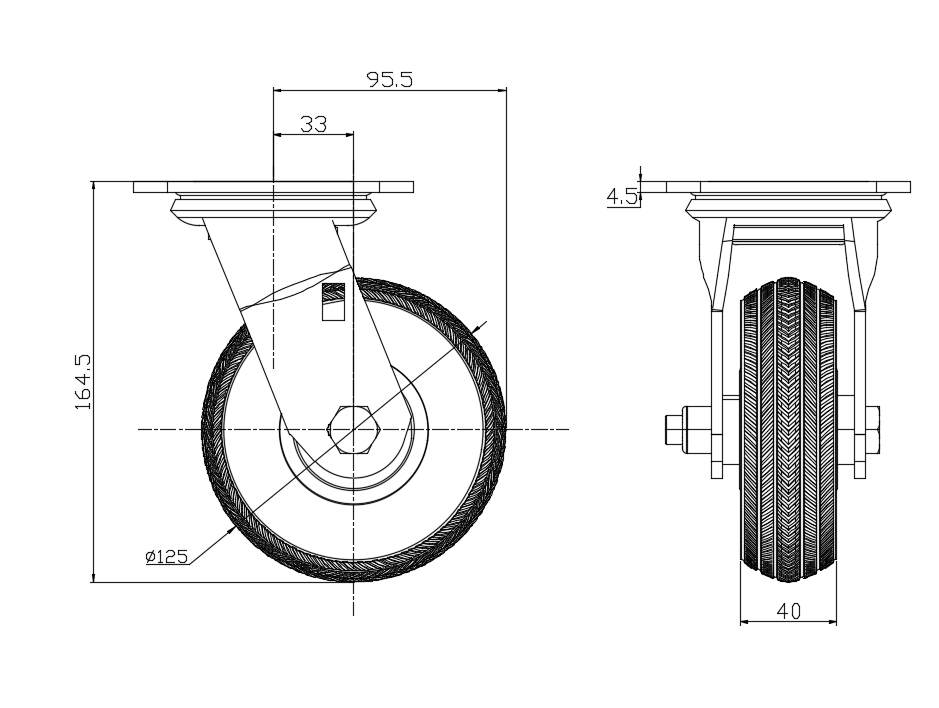

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

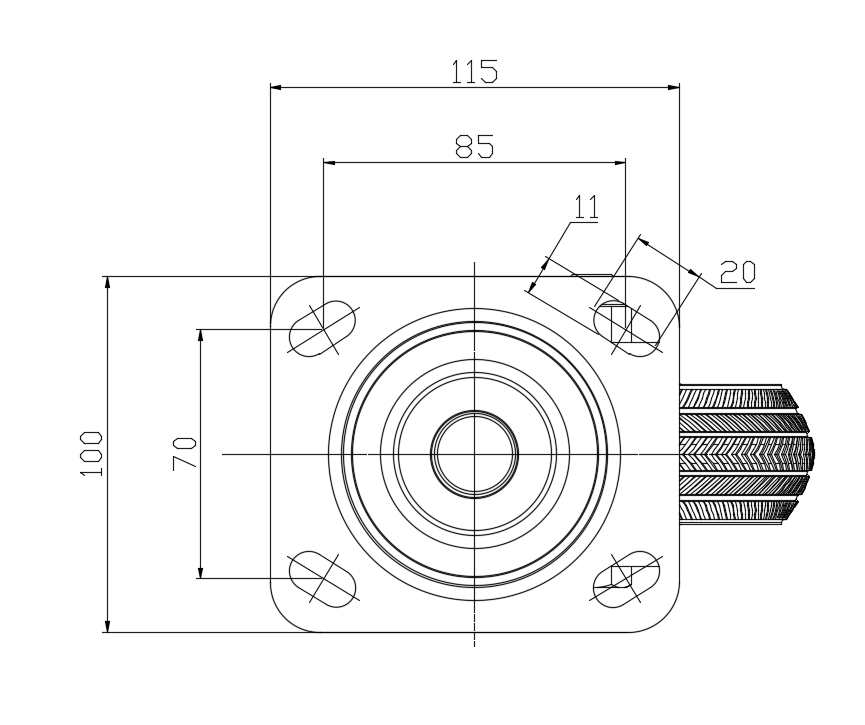

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 191mm　
　　Overall Height 164.5mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.25kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 125 x 40mm
YJ-11240500031013
125 mm 200 Kgs 164.5 mm

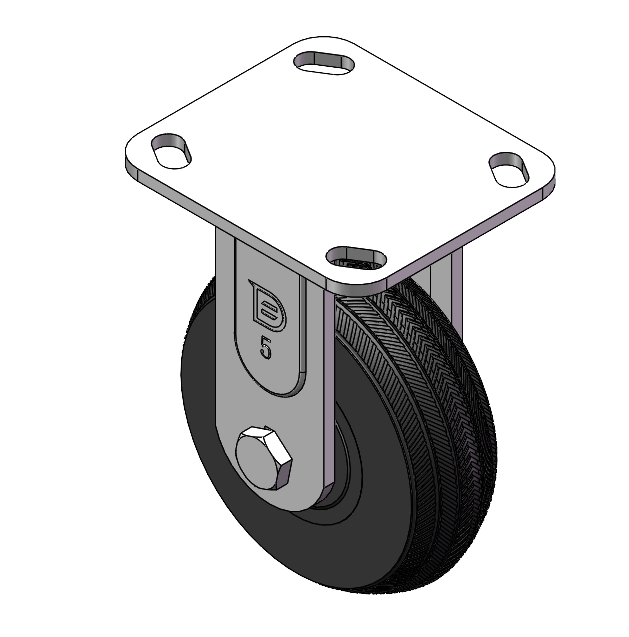

Rigid Caster, Welded Caster Fork 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High-Quality Resilient Rubber tread Iron black, Bearing with Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 125 x 40mm
YJ-11240500034023
125 mm 200 Kgs 164.5 mm

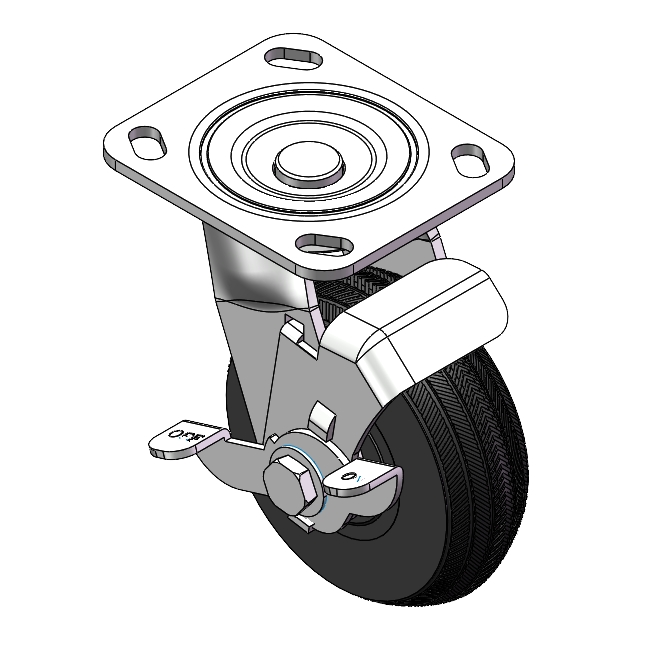

Side brake Caster with Locking system. Top Plate with Riveted Stamping D-shaped legs. Hole Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High-Quality Resilient Rubber tread Iron black, Bearing—Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
SX Rubber Wheel Diameter × Wheel Width 125 x 40mm
YJ-11240500034013
125 mm 200 Kgs 164.5 mm

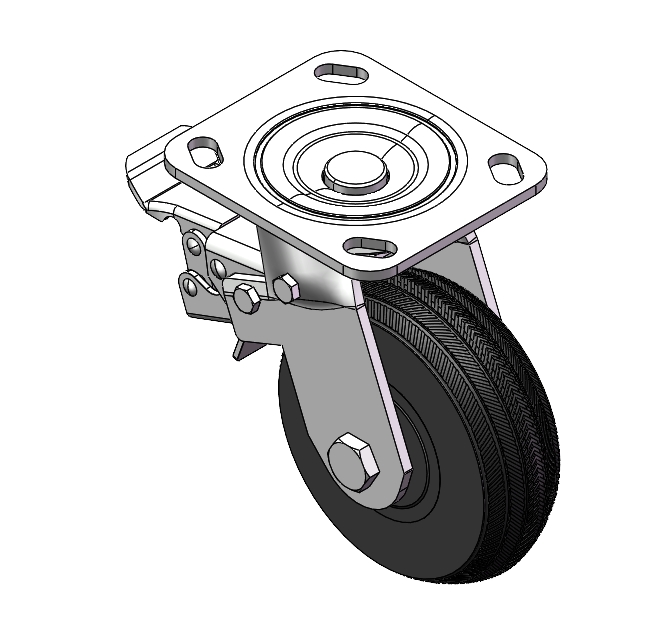

Center Brake Locking system. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Iron black, Bearing with Ball Bearing.
