    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　NBR (Tangerine) Wheel Diameter x Wheel Width 125 × 40mm
　　EAN
　　　　　 　　　
　　YJ-11240500042073 　　　

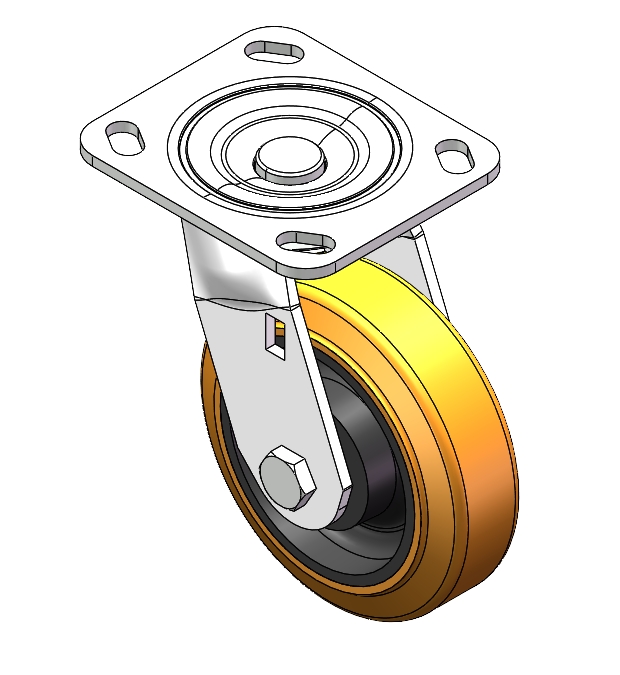

Swivel Caster, Top Plate with Riveted Stamping bracket and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing.
Zine-Plated, Top Plate (4.5T) Mounting Type mechanism.
Cast Iron core with High-Quality Resilient Rubber Wheel Tread.
Orange color, Bearing with Ball Bearings.
　　Wheel surface: high-quality elastic rubber
　　Wheel Center: iron core/cast iron core

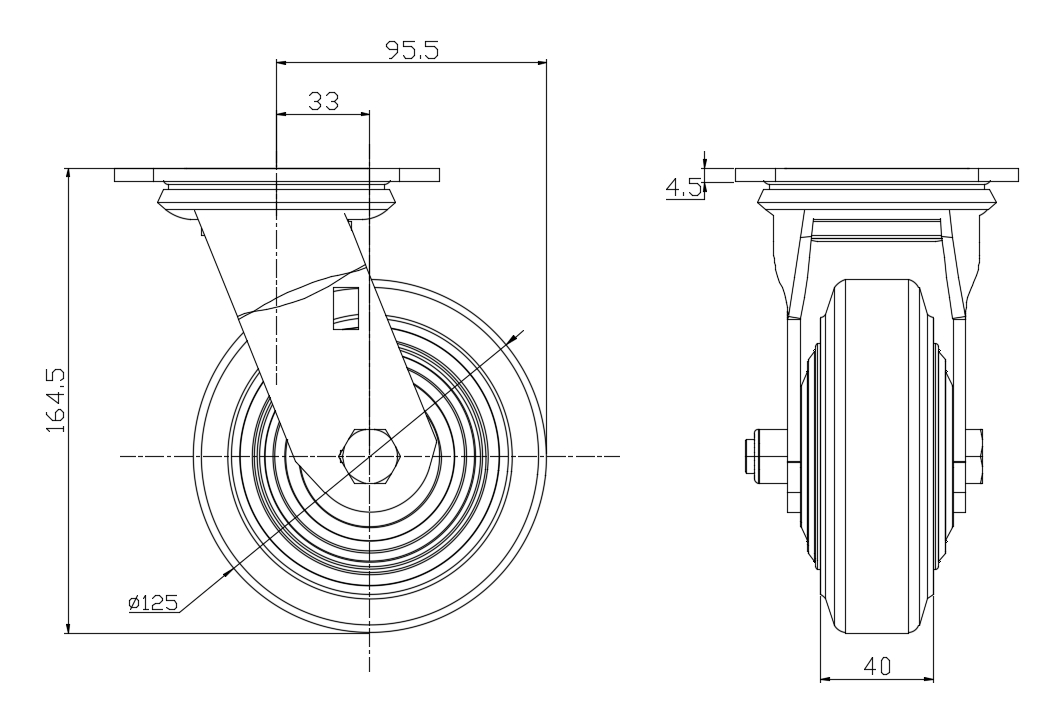

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

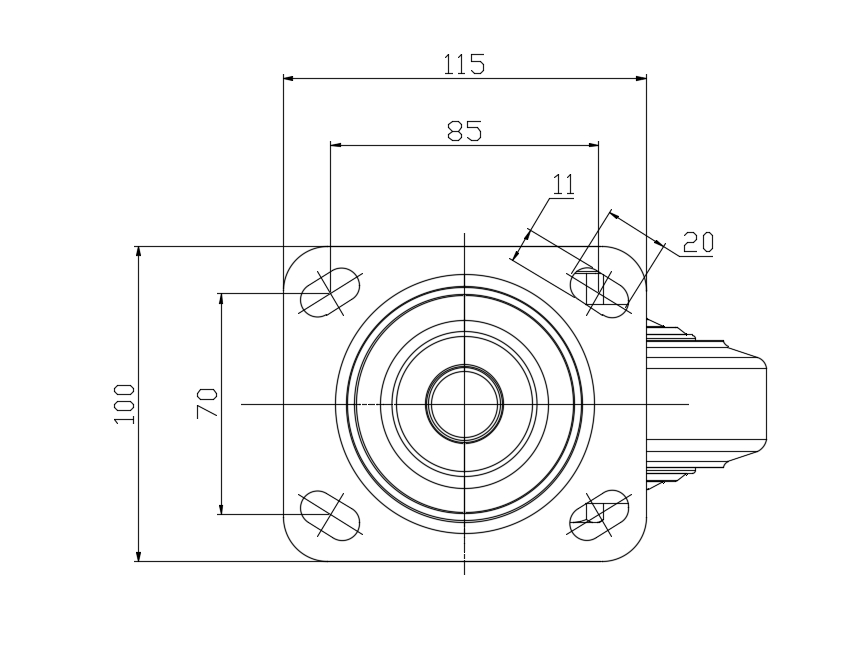

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 191mm　
　　Overall Height 164.5mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 85±5° Shore A　
　　Load Capacity (Dynamic) 200kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 300kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.74kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
NBR (Tangerine) Wheel Diameter x Wheel Width 125 × 40mm
YJ-11240500041073
125 mm 200 Kgs 164.5 mm

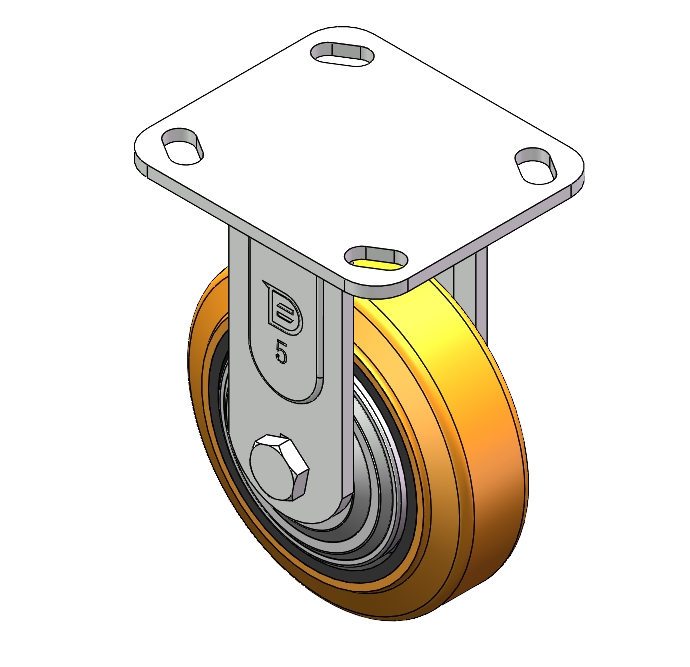

Rigid Caster, Welded Caster Fork with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing cutouts Zine-Plated, Top Plate (4.5T) Mounting Type system Cast Iron Wheel Center with High-Quality Resilient Rubber tread Orange color, Ball Bearing.
1124 1-1/2" Wide General Purposes Caster Series
NBR (Tangerine) Wheel Diameter x Wheel Width 125 × 40mm
YJ-1124050004408
125 mm 200 Kgs 164.5 mm

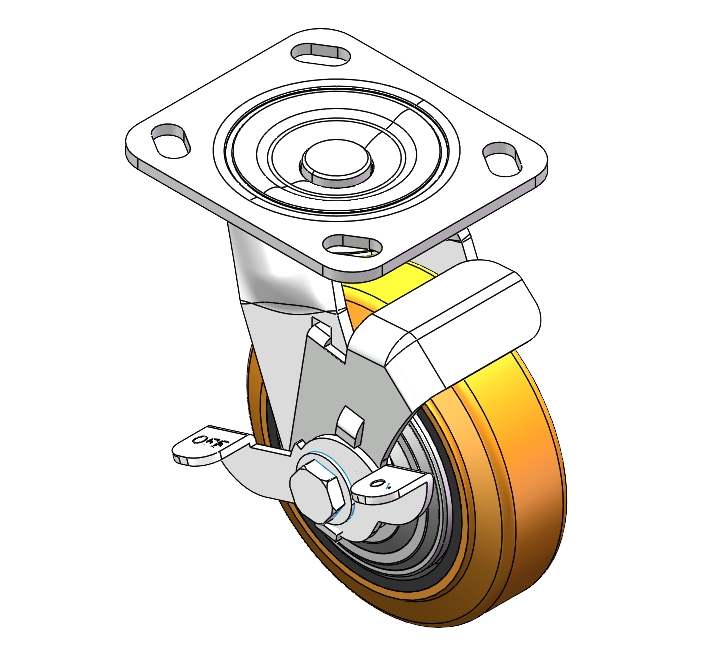

Side Brake Caster with With locking system. Top Plate with Riveted Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacings.
Zine-Plated, Top Plate (4.5T) Mounting Type system.
Cast Iron Wheel Center with High-Quality Resilient Rubber Wheel Tread.
Orange color, Bearing with Ball Bearings.
1124 1-1/2" Wide General Purposes Caster Series
NBR (Tangerine) Wheel Diameter x Wheel Width 125 × 40mm
YJ-11240500042063
125 mm 200 Kgs 164.5 mm

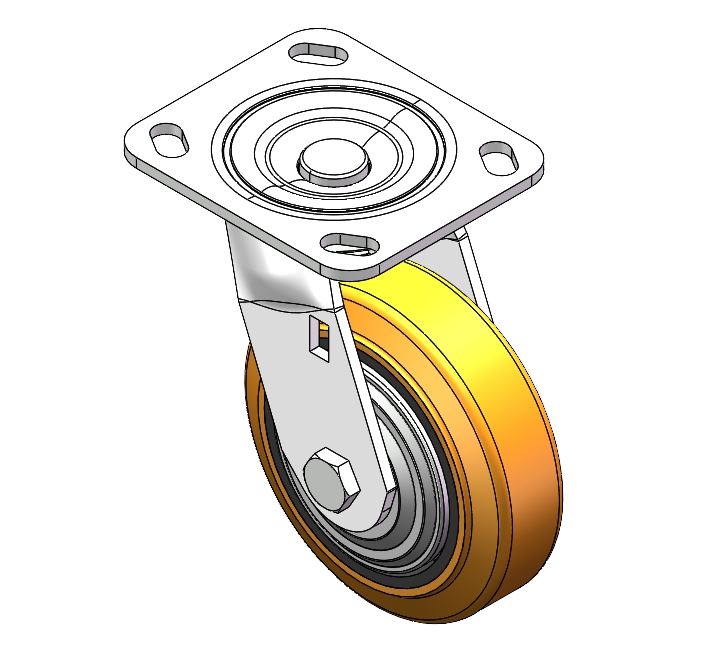

Swivel Caster, Top Plate Riveted and Stamping with 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Mounting Type. Zine-Plated, Top Plate (4.5T) Mounting Type mechanism. Cast Iron Wheel Center, High-Quality Resilient Rubber tread. Orange color, Bearing—Ball Bearing.
