Product Data Sheet |
![]() |
![]() |
![]() |
||
1124 1-1/2" Wide General Purposes Caster Series |
![]() |
![]() |
||||
PU (red flat) Wheel Diameter × Wheel Width 125 × 40 mm |
![]() |
![]() |
||||
EAN |
![]() |
|||||
YJ-11240500334063 |
![]() |
|||||
![]() |
![]() |
|||||

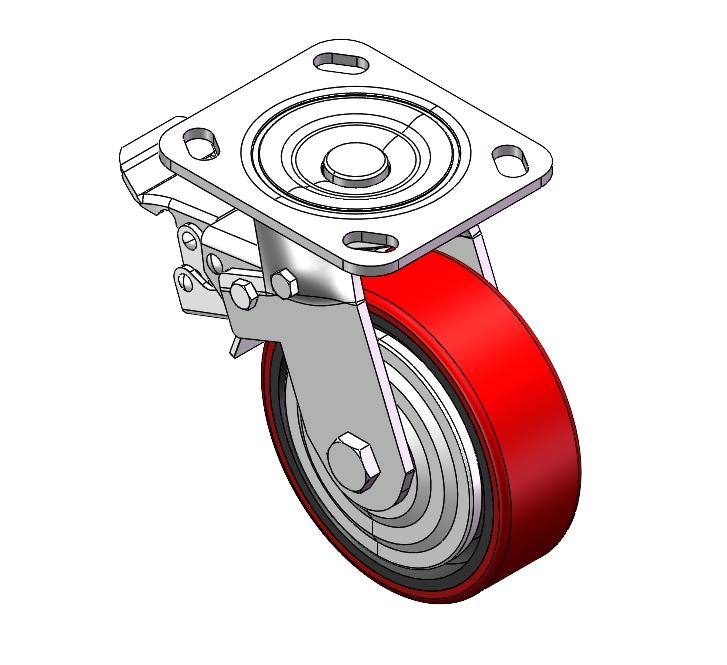

Center Brake Locking system. Top Plate Riveted and Stamping 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Red Cast Iron finish, Bearing—Ball Bearing. |
![]() |
|||||
![]() |
![]() |
|||||

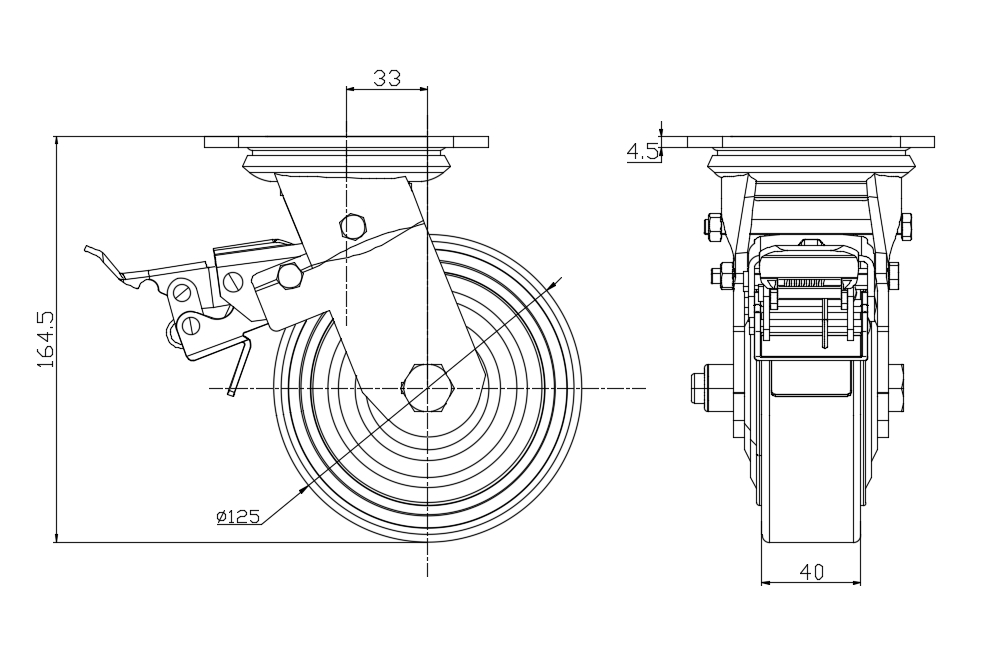

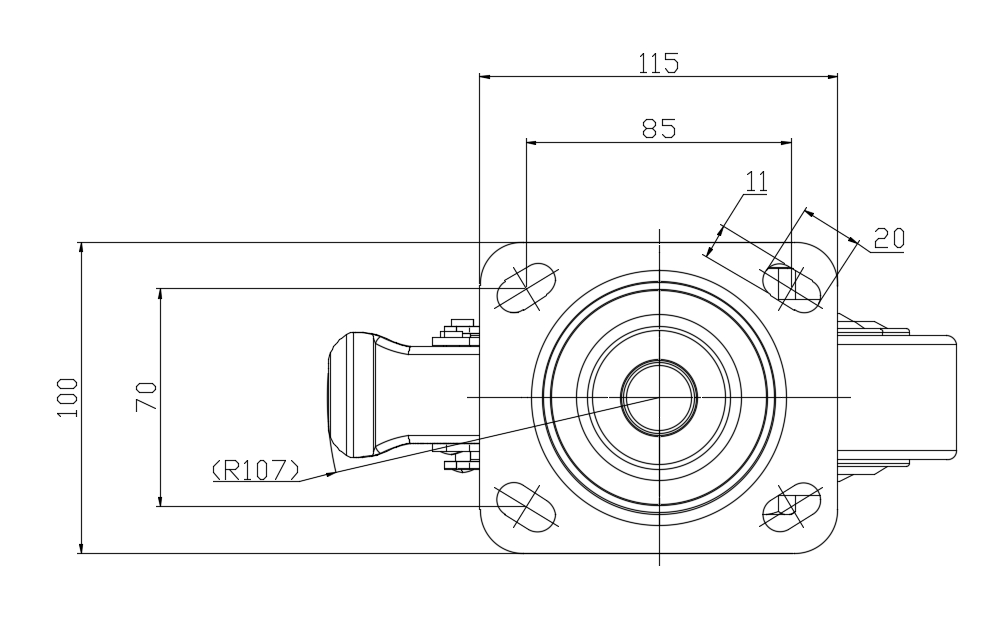

Wheel tread: Made of high-quality polyurethane Wheel Center: cast iron core Drawings are for reference only and may differ from the product |
![]() |
|||||
![]() |
![]() |
|||||
![]() Metric Imperial
Wheel Diameter
125mm
Wheel Width
40mm
|
![]() |
![]() |
||||
Wheel Bearing
Wheels With Ball Bearings
Plate Size
115 x 100mm
Bolt Hole Spacing
85 x 70mm
Plate Hole
20 x 11mm
Offset
33mm
Swivel Interference
214mm
Overall Height
164.5mm
Swivel Radius
107mm
Hardness Of Tread
93±5° Shore A
Load Capacity (Dynamic)
250kgs
|
Rolling Resistance ● ● ● ○ ○ Operating Noise ● ● ● ● ○ Floor Surface Preservation ● ● ● ● ○ |
|||||
Load Capacity (Static)
375kgs
Temperature
-20°C to +70°C
Fork Type
Swivel Caster With Rear Brake
|
![]() |
|||||
Stainless
N/A
Electrical Conductivity
N/A
Anti-Static
N/A
Weight
2.82kgs
Standard
ISO22883
|
![]() |
![]() |
||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
![]() |
![]() |
|||||
