    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　PU (Red round) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11240500334123 　　　
Center Brake Locking system. Top Plate Riveted and Stamping 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High Quality Polyurethane tread. Red Cast Iron finish, Bearing—Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

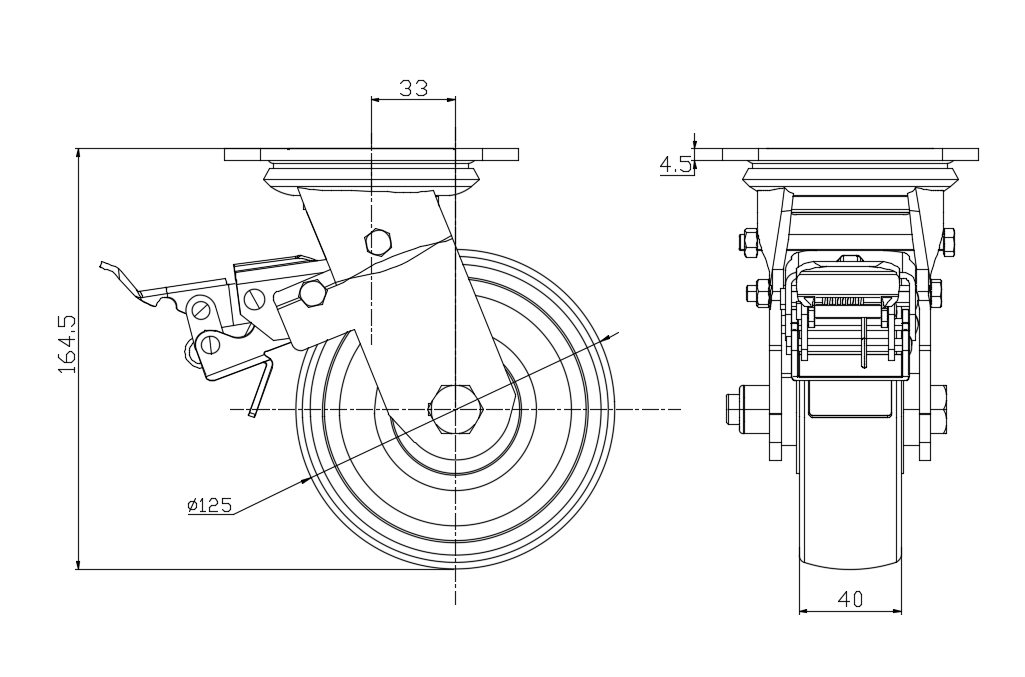

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

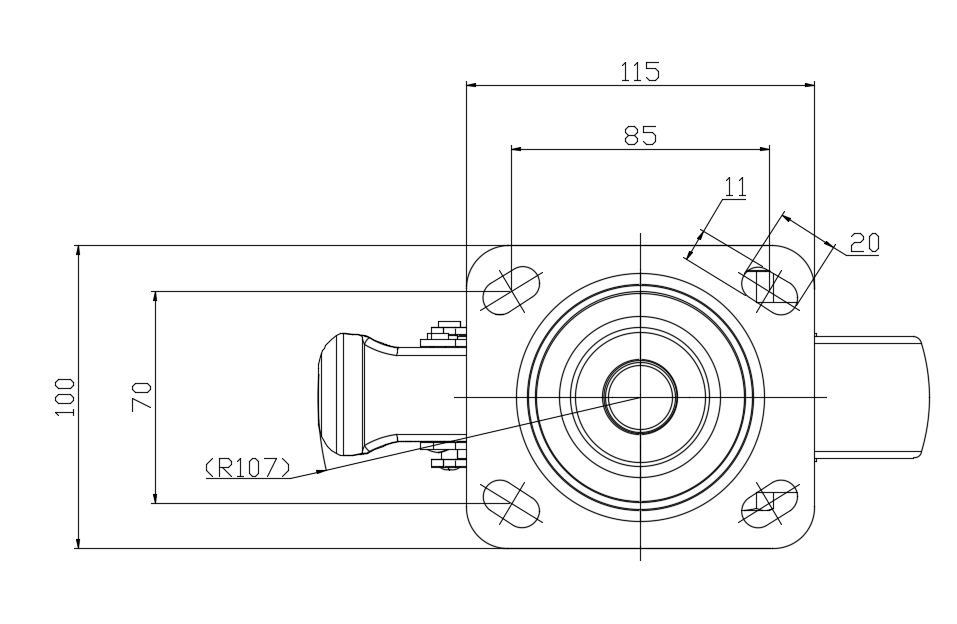

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 214mm　
　　Overall Height 164.5mm　
　　Swivel Radius 107mm　
　　Hardness Of Tread 93±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +70°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.69kgs　
　　Standard ISO22883
　　
　　
