    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　W Resolute (black, dark gray) Wheel Diameter × Wheel Width 125 x 38mm
　　EAN
　　　　　 　　　
　　YJ-11240500451013 　　　
Swivel Caster with Riveted Fork and Stamping Fork – 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing
Zine-Plated, Top Plateed (4.5T) Mounting Type system
Reinforced, impact-resistant polypropylene Wheel Center with High-Quality Reinforced Polypropylene Rubber (TPR) Wheel Tread
Dark gray finish, Bearing – Ball Bearing.
　　Wheel tread: Thermoplastic rubber elastomer (TPR)
　　Wheel Center: Made of high-quality impact-resistant polypropylene

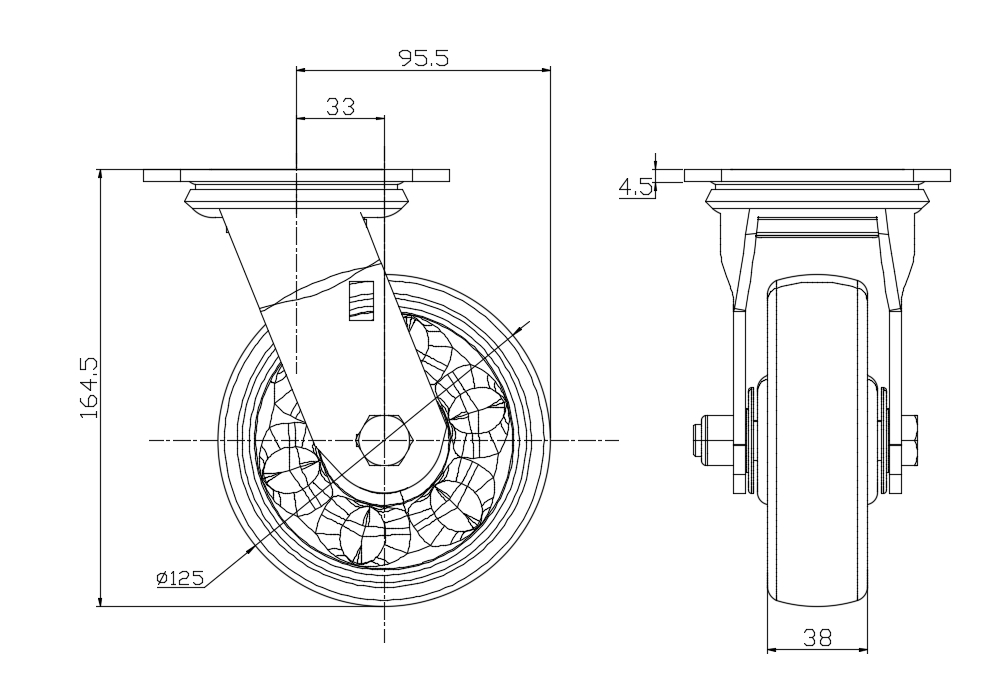

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 38mm　
　　Wheel Bearing Wheels With Ball Bearings

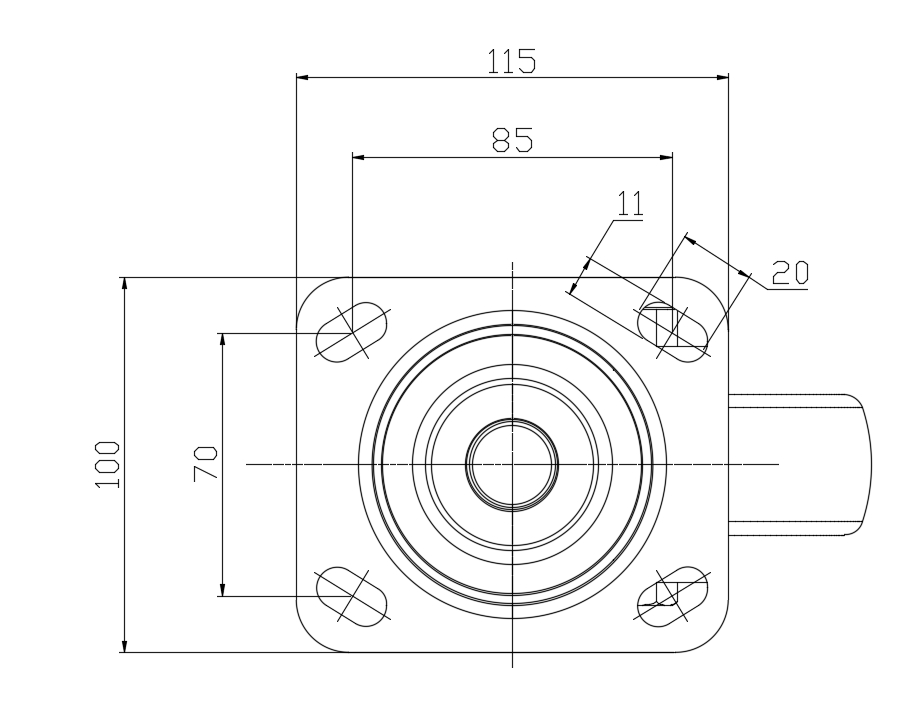

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 191mm　
　　Overall Height 164.5mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 72±5° Shore A　
　　Load Capacity (Dynamic) 150kgs　


　　Rolling Resistance　　　     ● ● ● ● ●

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 225kgs　
　　Temperature -20°C to +60°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 1.20kgs　
　　Standard ISO22883
　　
　　
