    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　EPU (Red round) Wheel Diameter × Wheel Width 125 x 40mm
　　EAN
　　　　　 　　　
　　YJ-11240500522013 　　　

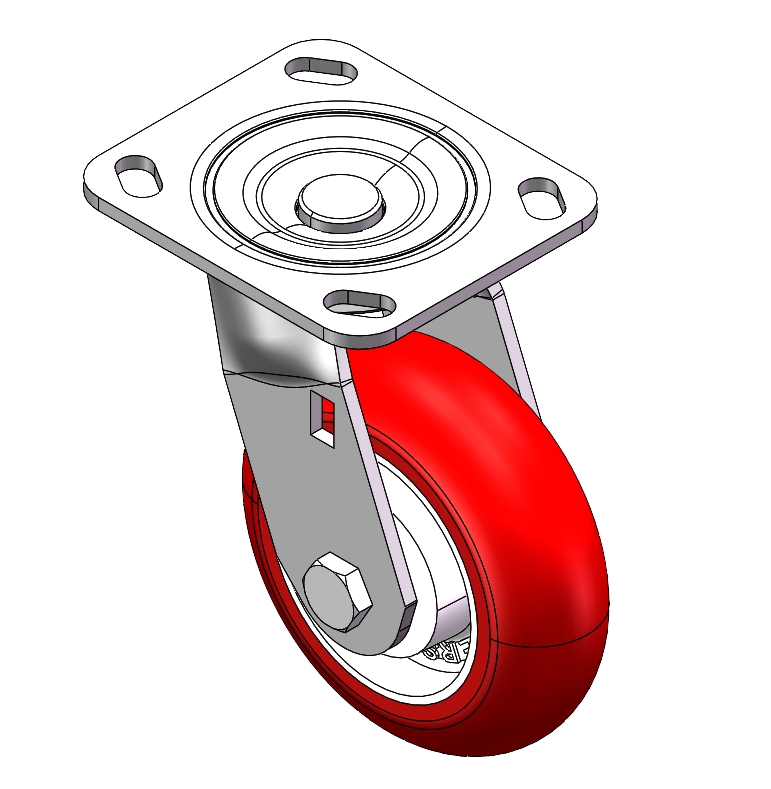

Swivel Caster with Riveted Fork and Stamping Fork - 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing Zine-Plated, Fork-mounted (4.5T) Mounting Type system Cast Iron Wheel Center with High Quality Polyurethane tread Red Cast Iron finish, Bearing - Ball Bearing.
　　Wheel tread: Made of high-quality polyurethane
　　Wheel Center: cast iron core

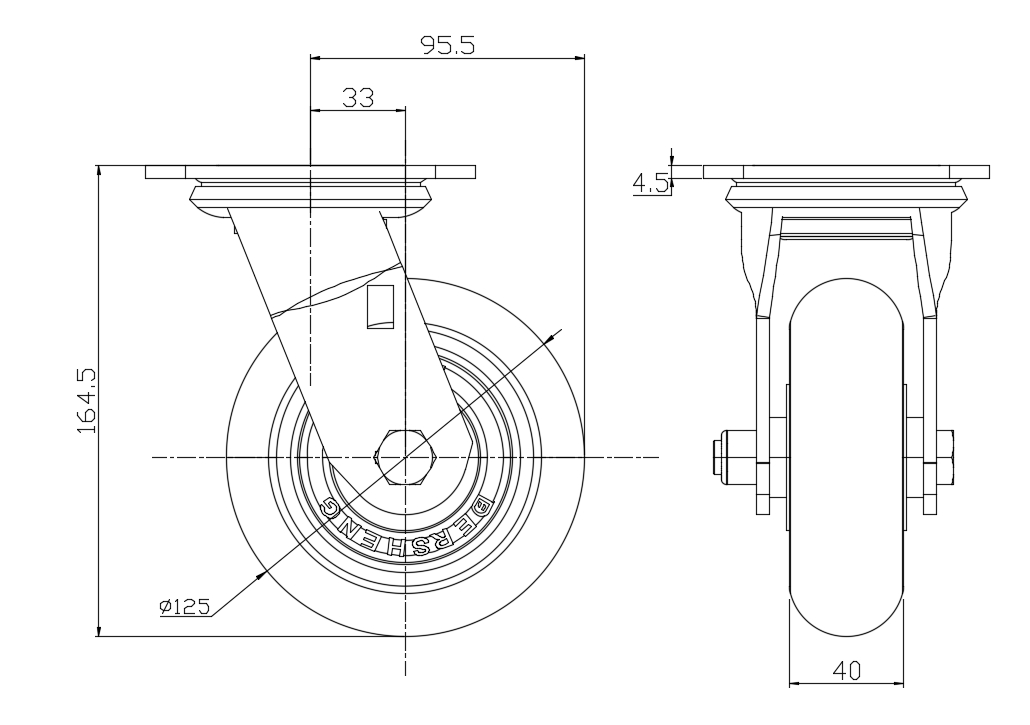

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 125mm　

　　Wheel Width 40mm　
　　Wheel Bearing Wheels With Ball Bearings

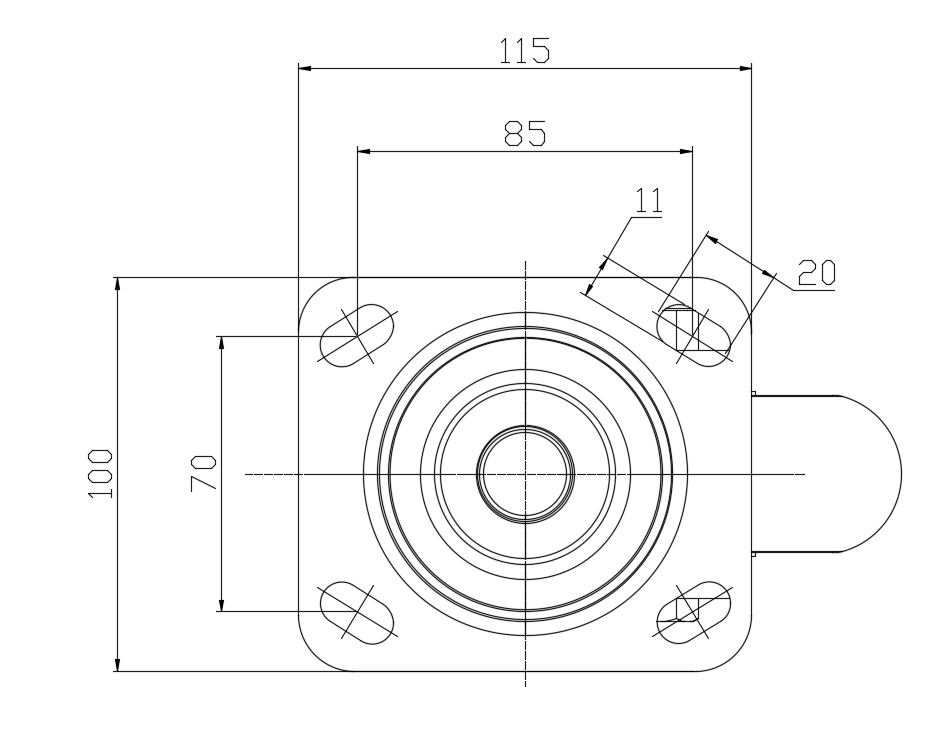

　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 33mm　
　　Swivel Interference 191mm　
　　Overall Height 164.5mm　
　　Swivel Radius 95.5mm　
　　Hardness Of Tread 94±5° Shore A　
　　Load Capacity (Dynamic) 250kgs　


　　Rolling Resistance　　　     ● ● ● ● ○

　　Operating Noise　　　　    ● ● ● ● ●

　　Floor Surface Preservation  ● ● ● ● ●
　　Load Capacity (Static) 375kgs　
　　Temperature -20°C to +80°C　
　　Fork Type Swivel Caster　
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 2.55kgs　
　　Standard ISO22883
　　
　　
　　© Copyright 2025 DershengInternational www.dersheng.com
關　　聯　　產　　品
1124 1-1/2" Wide General Purposes Caster Series
EPU (Red round) Wheel Diameter × Wheel Width 125 x 40mm

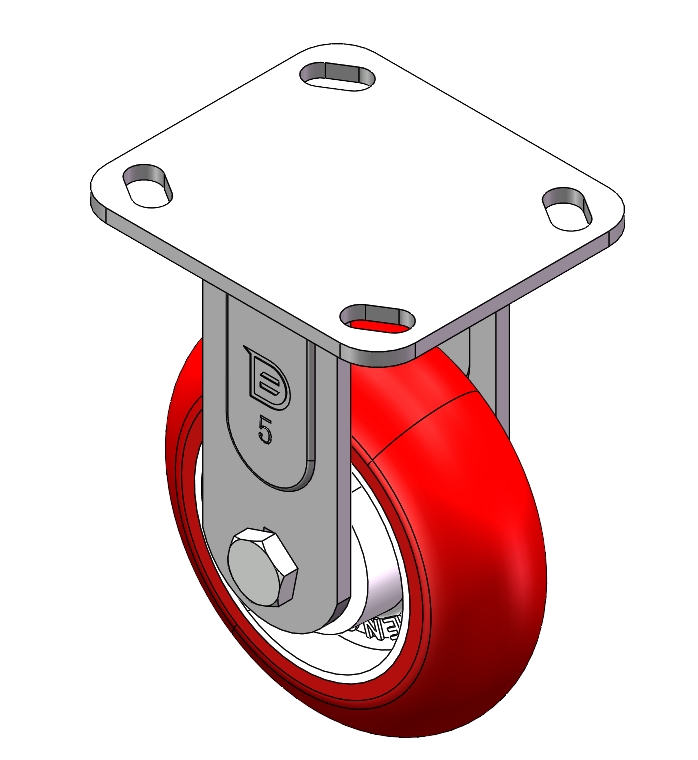

YJ-11240500521013
