    Product Data Sheet
1124 1-1/2" Wide General Purposes Caster Series
　　SX Rubber Wheel Diameter × Wheel Width 193 x45mm
　　EAN
　　　　　 　　　
　　YJ-11240800034013 　　　
Casters with a center brake and locking mechanism. Top Plate with Riveted, Stamping Fork and 85 x 70mm (3-3/8" x 2-3/4") Bolt Hole Spacing. Zine-Plated, Top Plate (4.5T) Mounting Type system. Cast Iron Wheel Center with High-Quality Resilient Rubber tread. Iron black, Bearing with Ball Bearing.
　　Wheel Tread: high-quality elastic rubber
　　Wheel Center: cast iron core

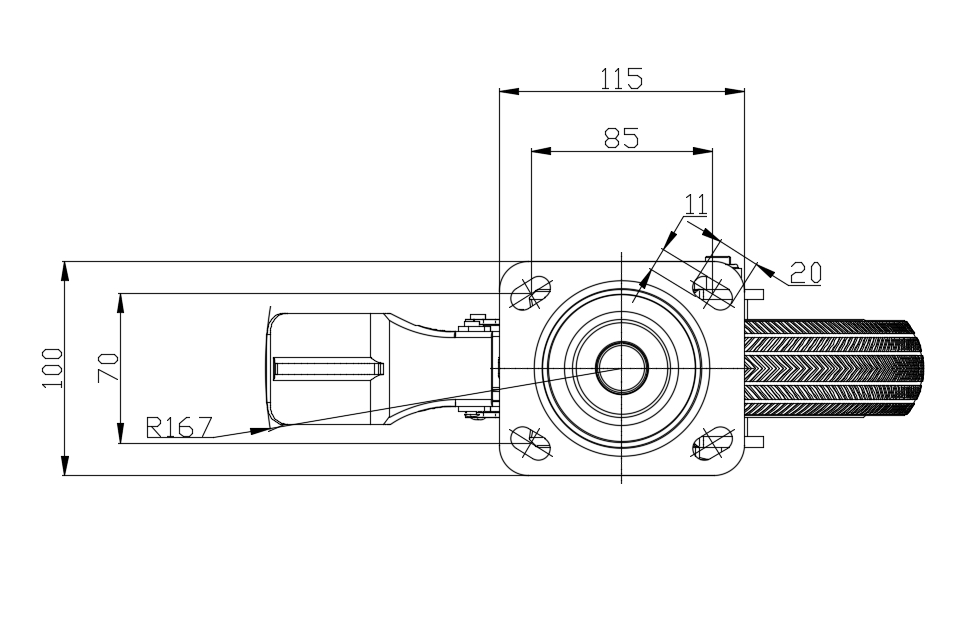

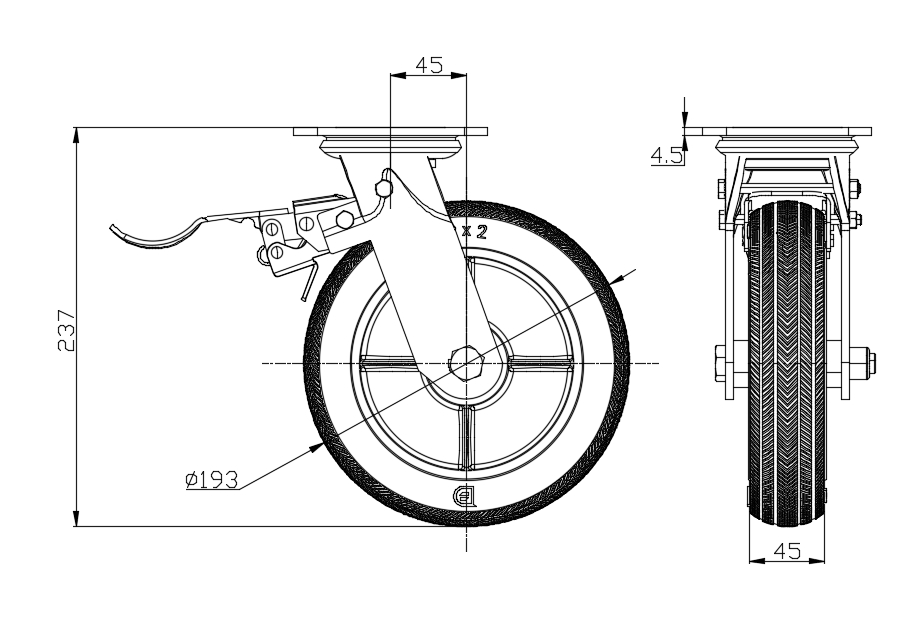

  　　Drawings are for reference only and may differ from the product




      Metric Imperial
　　Wheel Diameter 193mm　

　　Wheel Width 45mm　
　　Wheel Bearing Wheels With Ball Bearings
　　Plate Size 115 x 100mm　
　　Bolt Hole Spacing 85 x 70mm　
　　Plate Hole 20 x 11mm　
　　Offset 45mm　
　　Swivel Interference 334mm　
　　Overall Height 237mm　
　　Swivel Radius 167mm　
　　Hardness Of Tread 80±5° Shore A　
　　Load Capacity (Dynamic) 260kgs　


　　Rolling Resistance　　　     ● ● ● ○ ○

　　Operating Noise　　　　    ● ● ● ● ○

　　Floor Surface Preservation  ● ● ● ● ○
　　Load Capacity (Static) 390kgs　
　　Temperature -20°C to +120°C　
　　Fork Type Swivel Caster With Rear Brake
　　Stainless N/A
　　Electrical Conductivity N/A
　　Anti-Static N/A
　　Weight 4.02kgs　
　　Standard ISO22883
　　
　　
